Sony SLT-A65 - Shutter Unit Section

SLT-A65/A65K/A65L/A65M/A65V/A65VK/A65VL/A65VM/A65VX/A65VY/A65X/A65Y_L2
2-11

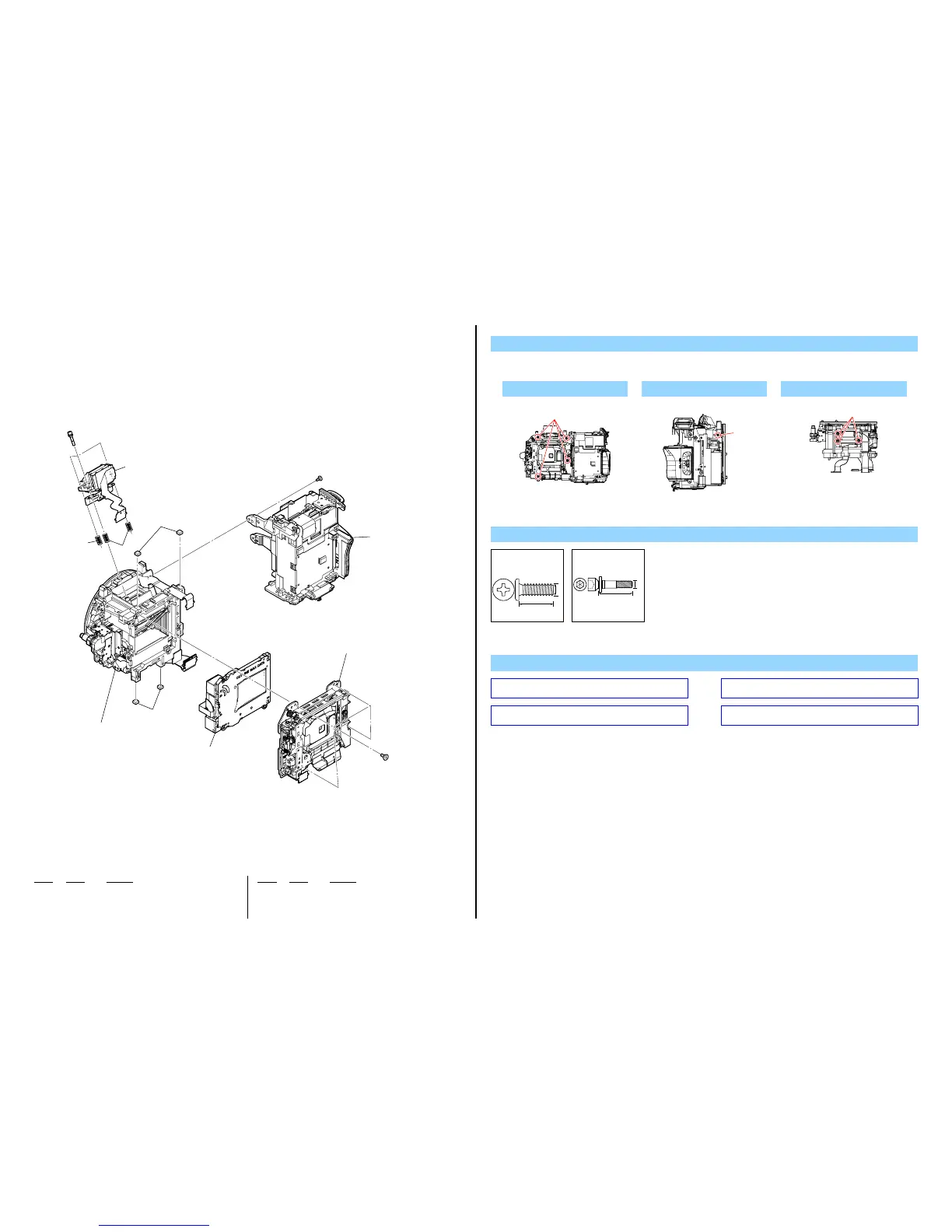

2-1-9. SHUTTER UNIT SECTION
Ref. No. Part No. Description
Ref. No. Part No. Description
#12
#207
#12
2 404
(Note 2)
4 401
(Note 1)
403
403
402
402
1 Imager Section
(See page 2-12)
3 Battery Holder Section
(See page 2-14)
Mirror Box Section (Sub Unit-1)
(See page 2-15)
401 A-1735-179-A ALX-8630 (Note 1)
402 2-693-420-01 SP, S ADJUSTMENT
403 4-192-228-01 BD ABSORBER
404 1-487-960-23 SHUTTER UNIT (AFE-3032) (Note 2)
#12 3-080-204-21 SCREW, TAPPING, P2
#207 4-191-605-01 S ADJUSTMENT SCREW
DISASSEMBLY
1. Remove in numerical order (1to 4) in the left figure.
4 #207 X 3
Top View
#207
3 #12 X 11 #12 X 4
Back View
#12
Right View
#12
Screw
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
#207: M1.6 X 8.0
(Silver)
4-191-605-01
8.0
1.6
Note 1: Refer to “Assembly-2: Assemble ALX-8630 (AF Module)”.
Note 1:

“
Assembly-2: Assemble ALX-8630 (AF Module)
”
を参照
してください。
Note
Note 2: Refer to “Assembly-3: Assemble Shutter Unit (AFE-
3032)”.
Note 2:

“Assembly-3: Assemble Shutter Unit (AFE-3032)”
を参照
してください。
The changed portions from
Ver. 1.2 are shown in blue.
Ver. 1.3 2012.05
