Sony SLT-A65 - Top Cover Section

SLT-A65/A65K/A65L/A65M/A65V/A65VK/A65VL/A65VM/A65VX/A65VY/A65X/A65Y_L2
2-7

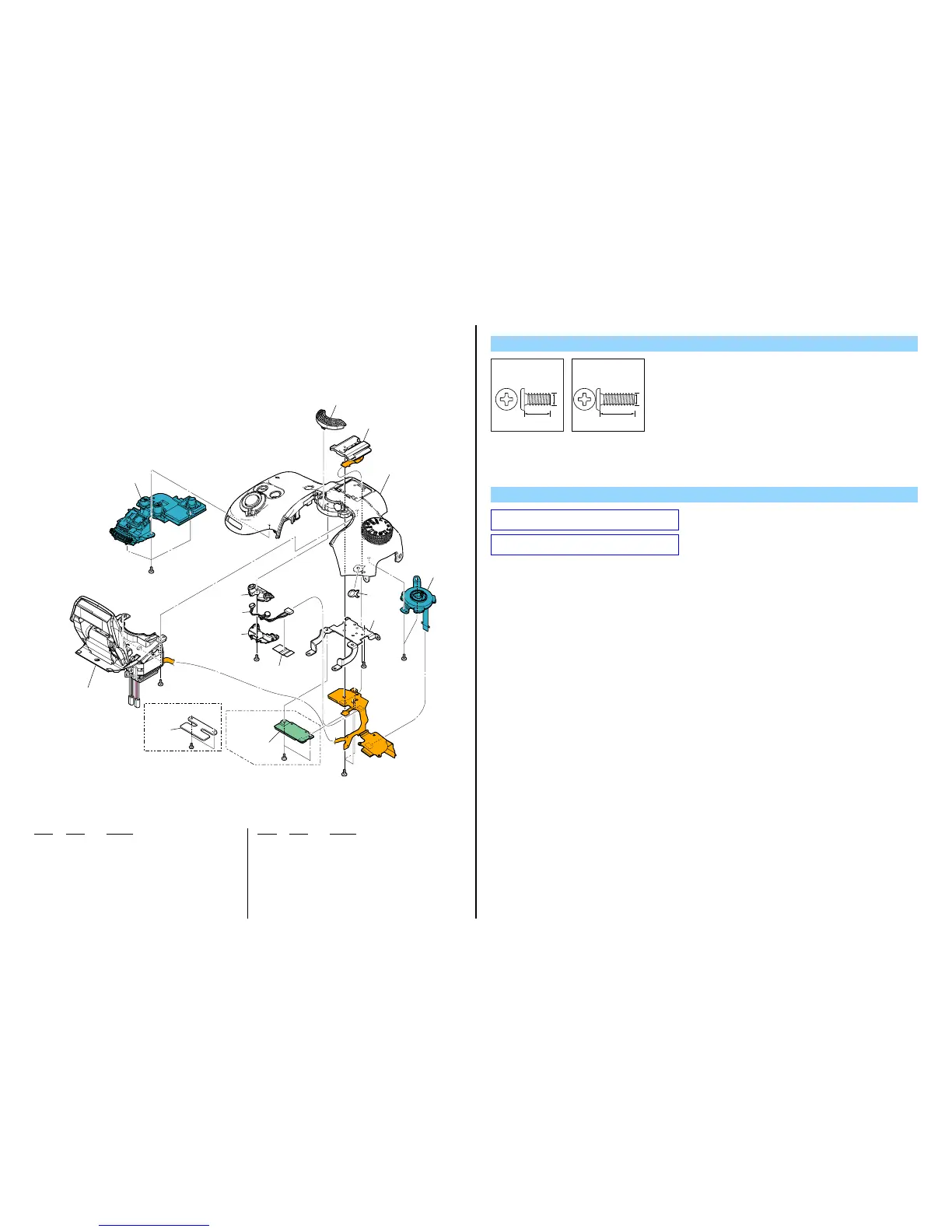

2-1-5. TOP COVER SECTION
Screw
#5: M1.7 X 3.5 (Tapping)
(Black)
3-080-204-01
3.5
1.7
Ref. No. Part No. Description
Ref. No. Part No. Description
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
A65V/A65VK/
A65VL/A65VM/
A65VX/A65VY
A65/A65K/A65L/A65M/
A65X/A65Y
211
210
208
207
201
203
204
206
209
Stroboscope Section
(See page 2-8)
(Note)
#12
#5
#5
#5
MIC901
#5
CN901
205
#5
202
#12
Note : Refer to “Assembly-1: Routing of the Flash Harness.”.
Note :

“
Assembly-1: Routing of the Flash Harness.
”
を参照
してください。
Note
201 A-1837-380-A GP868 ASSY (A65V/A65VK/A65VL/A65VM/A65VX/
A65VY)
202 4-296-656-01 BD GP D-SHEET (A65/A65K/A65L/A65M/A65X/A65Y)
203 4-293-712-01 CV MIC HARNESS TAPE
204 4-293-709-01 CV MIC UNIT HOLDER
205 4-293-710-01 CV MIC CUSHION
206 1-884-617-11 SWITCH BLOCK, CONTROL (TK86800)
207 4-293-705-01 CV SHOE FRAME (868)
208 1-884-063-11 SWITCH BLOCK, CONTROL (MD86800)
209 4-143-883-11 LOGO EMBLEM (A)
210 X-2582-403-2 CV TOP COVER ASSY (868)
211 4-293-708-01 CV MIC GRILLE
CN901 1-822-402-11 SHOE CONNECTOR
MIC901 1-542-899-11 MICROPHONE UNIT
#5 3-080-204-01 SCREW, TAPPING, P2
#12 3-080-204-21 SCREW, TAPPING, P2
The changed portions from
Ver. 1.5 are shown in blue.
Ver. 1.6 2013.07
