Sony SLT-A65 - Page 24

SLT-A65/A65K/A65L/A65M/A65V/A65VK/A65VL/A65VM/A65VX/A65VY/A65X/A65Y_L2
2-8

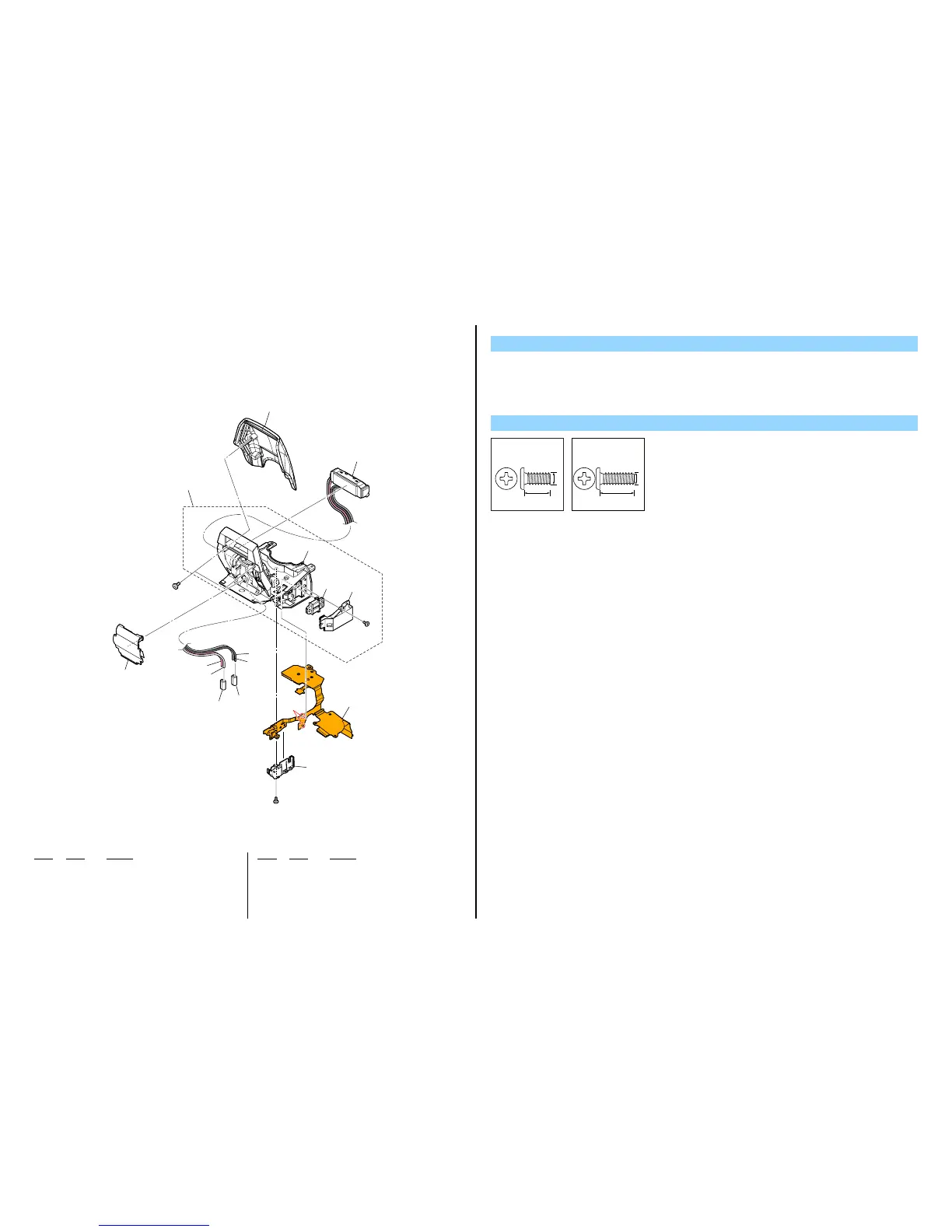

2-1-6. STROBOSCOPE SECTION
ns: not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
Pink
Black
Gray
White
#5
#5
#5
ns
255
254
253
257
256

252
251
258
ns
PL901
251 4-293-704-01 ST SW PLATE (868)
252 1-884-792-21 SHM-002 FLEXIBLE BOARD, COMPLETE
253 1-820-649-21 HOUSING, CONNECTOR 2P (Yellow)
254 1-820-649-11 HOUSING, CONNECTOR 2P (Red)
255 4-293-724-01 ST ARM COVER
256 X-2582-404-2 ST BASE ASSY
257 1-489-906-11 FLASH UNIT
258 4-293-723-01 ST CASE U (868)
PL901 1-455-061-11 SOLENOID, PLUNGER
#5 3-080-204-01 SCREW, TAPPING, P2
#12 3-080-204-21 SCREW, TAPPING, P2
1. The meaning of the symbol in left figure is as follows. Be careful when you remove it.
◇-X: Solder
DISASSEMBLY
Screw
#5: M1.7 X 3.5 (Tapping)
(Black)
3-080-204-01
3.5
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
The changed portions from
Ver. 1.1 are shown in blue.
Ver. 1.2 2012.04
