Ref. No. Part No. Description Ref. No. Part No. Description
501 A-1842-086-A SLIDER UNIT (870 SERVICE), AS (Note 1, 2)
502 4-110-892-01 SPRING, ADJUSTMENT AO
503 X-2548-677-1 AS HOLDER ACTUATOR ASSY (Note 4)
504 2-695-356-11 BALL, BEARING
505 X-2582-520-1 AS SLIDER (B) ASSY (870)T (Note 3)
#14 2-599-475-11 SCREW (M1.7)
#87 2-689-328-01 SCREW, CCD AO ADJUSTMENT

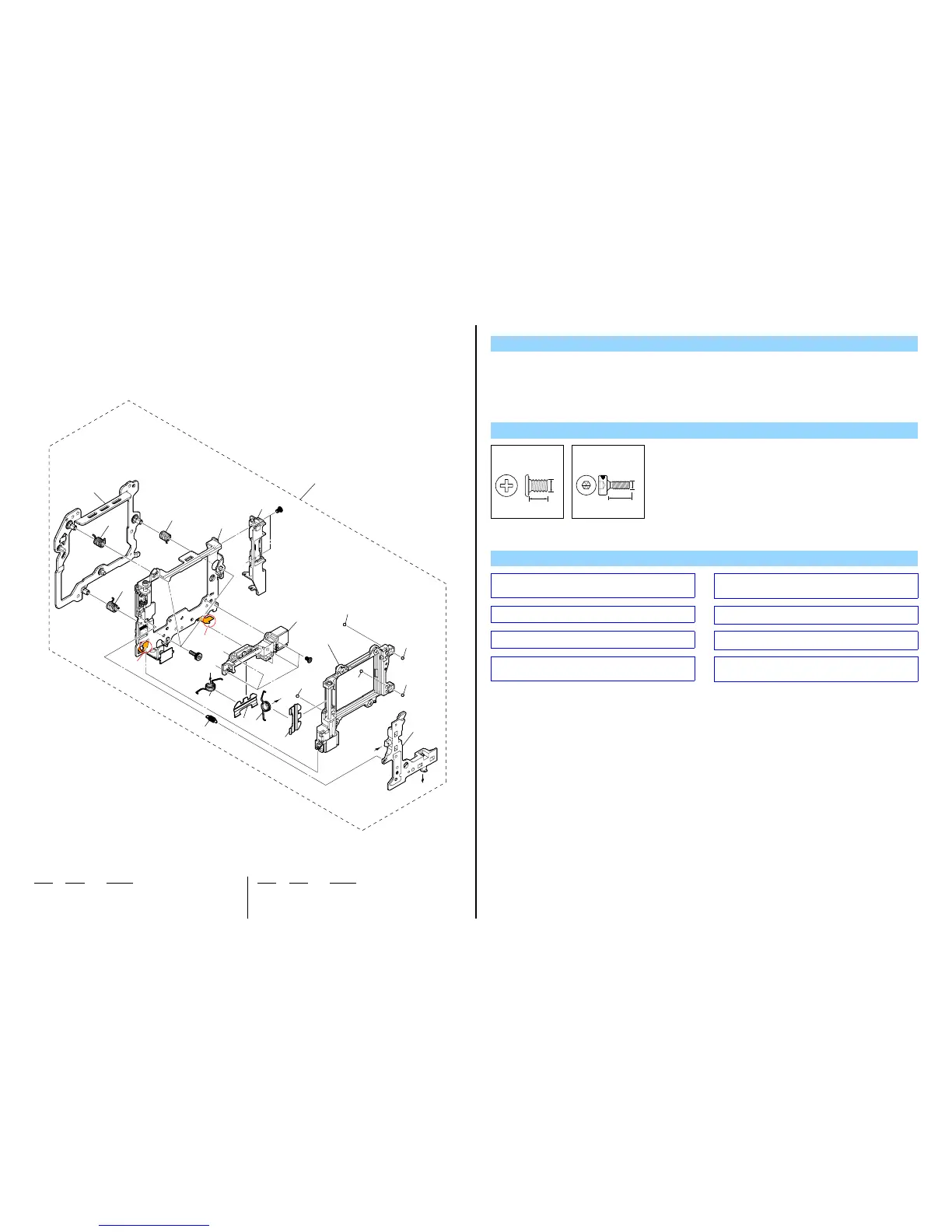

2-1-11. ANTI SHAKE UNIT SECTION
ns: not supplied
B
B
A
A
ns
ns
ns
ns
ns
ns
ns
ns
ns
502
502
501
(Note1,2)
(Note3)
503 (Note4)
504
505
504
504
504
502
#14
#14
#87
504


Note
Note 1: Refer to “1-3. METHOD FOR CHECKING THE AS SLIDER
UNIT (870)” on page 1-3 when checking the AS Slider Unit
(870).
Note 1:
 ASスライダーユニット（870） のチェック行う場合，1-9ペー
ジの
“
1-3. ASスライダーユニット（870）チェック方法
”
を参照
してください。
Note 2: Refer to “1-4. METHOD FOR ADJUSTING THE TEBURE
REVISE” on page 1-3 when adjusting the Tebure Revise.
Note 3: Refer to “1-6. METHOD FOR REPLACING THE AS SLIDER
B ASSY” on page 1-4 when replacing the AS Slider B Assy.
Note 4: Refer to “1-7. METHOD FOR REPLACING THE AS HOLDER
ACTUATOR ASSY” on page 1-5 when replacing the AS Holder
Actuator Assy.
Note 2:
 Tebure Reviseの調整を行う場合，1-9ページの
“
1-5. 手ぶれ
リバイス調整方法
”
を参照してください。
Note 3:
 ASスライダー B Assyの交換を行う場合，1-10ページの
“
1-6.
ASスライダー B ASSYの交換方法
”
を参照してください。
Note 4:
 ASアクチュエータホルダAssyの交換を行う場合，1-11ページの
“
1-7. ASアクチュエータホルダASSYの交換方法
”
を参照してく
ださい。
DISASSEMBLY
1. The meaning of the symbol in left figure is as follows. Be careful when you remove it.
◇: Solder
Screw
#14: M1.7 X 2.5
(Silver)
2-599-475-11
2.5
1.7
#87: M1.6 X 5.3
(Black)
2-689-328-01
5.3
1.6
The changed portions from
Ver. 1.1 are shown in blue.
