Sony SLT-A65 - Page 32

SLT-A65/A65K/A65L/A65M/A65V/A65VK/A65VL/A65VM/A65VX/A65VY/A65X/A65Y_L2
2-16
Note
Note 2: Refer to “1-1. METHOD FOR REPLACING THE P.O.I.” on
page 1-1 when replacing the P.O.I. without disassembling the
camera.
Note 2:
 分解を行わずにP.O.I.のみ交換する場合，1-7 ページの
“
1-1.
P.O.I.の交換方法
”
を参照してください。
Note 1: If the MB Mirror Frame Holder Assy (P.O.I.) is raised and then
pushed from the front side with the Shutter Unit (AFE-3032)
and the AS Slider Unit (870) have been removed, it may drop
off behind and get scratched or damaged.
Note 1:
 シャッターユニット，ASスライダーユニットを取り外した
状態でMBミラー枠ホルダー Assy（P.O.I.）をアップさせ，正
面より押した場合，後ろへ抜け落ち，キズ，破損の恐れがあ
ります。
Screw
#23: M1.7 X 4.0 (Tapping)
(Black)
3-080-204-11
4.0
1.7
#241:M1.4 X 2.5
 (Black)
 3-703-816-46
2.5
1.4
Ref. No. Part No. Description Ref. No. Part No. Description
651 X-2582-300-1 MB FRONT FRAME ASSY
652 A-1837-335-A MB MIRROR FRAME HOLDER ASSY (Note 1)
653 A-1855-640-A P.O.I (SERVICE) (Note1, 2)
654 4-292-475-01 MB SHUTTER CHARGE LEVER
655 4-292-476-01 MB SHUTTER CHARGE LEVER SP
656 4-292-473-01 MB DECELERATION GEAR 1
657 4-292-474-01 MB DECELERATION GEAR 2
658 X-2582-303-1 MB SHUTTER CHARGE CAMGEAR ASSY
659 A-1837-338-A SLK FPC UNIT 870 BOARD, COMPLETE
(including M903 (charge motor) and SLK-009 flexible
complete board)
660 4-292-574-01 MB LENS LOCK BASE PLATE
661 4-292-585-01 MB AF/MF SELECTION LEVER
662 4-292-464-01 MB MIRROR FRAME HOLDING SP
663 4-194-447-01 MB LEVER CUSHION
#23 3-080-204-11 SCREW, TAPPING, P2
#241 3-703-816-46 SCREW (M1.4X2.5), SPECIAL HEAD

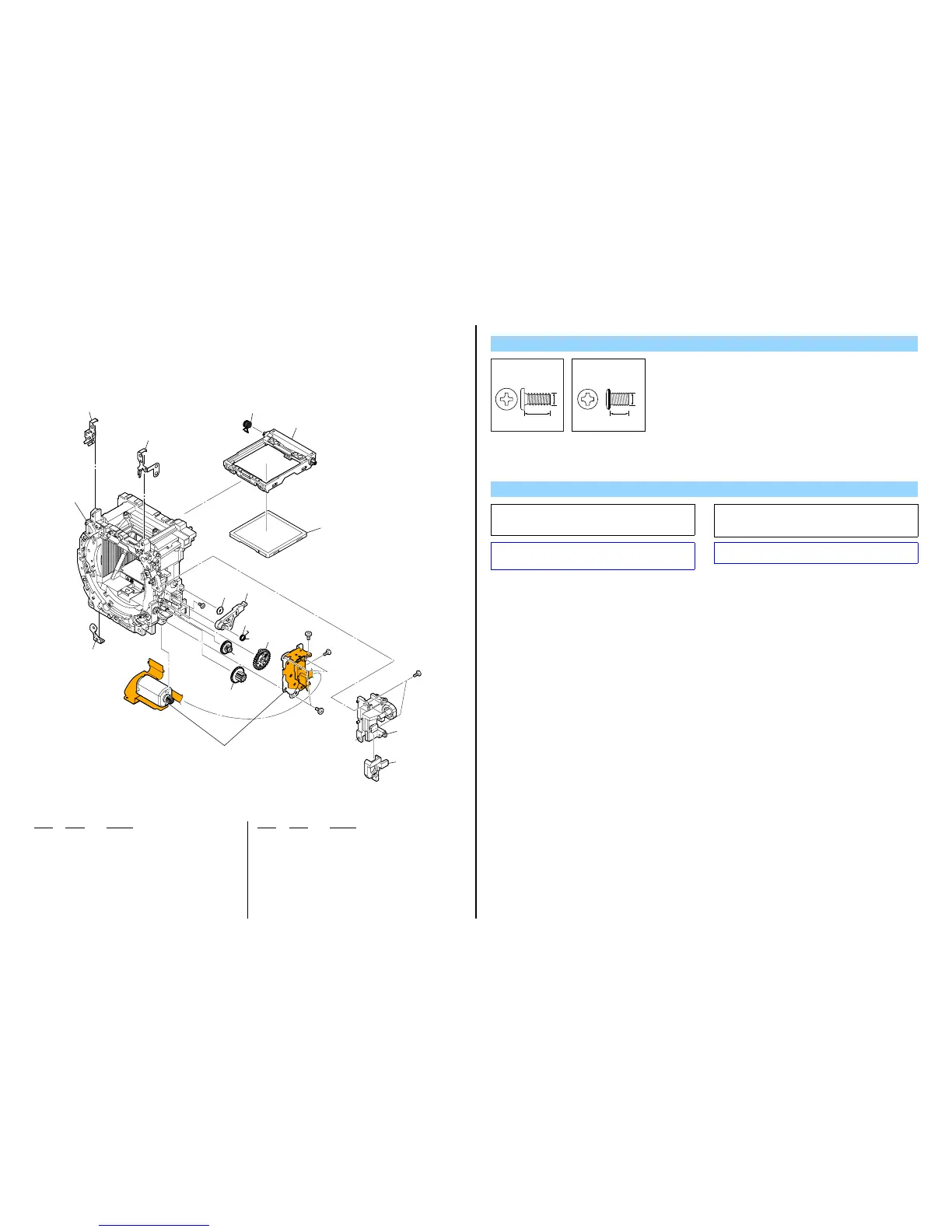

2-1-14. MIRROR BOX SECTION (SUB UNIT-2)
ns: not supplied
ns
ns
ns
#23
#241
#23
#23
#2
3
652
(Note 1)
653
(Note 1, 2)
662
661
657
658
651
656
655
660
654
663
659
(including M903 (charge motor) and
SLK-009 flexible complete board)
