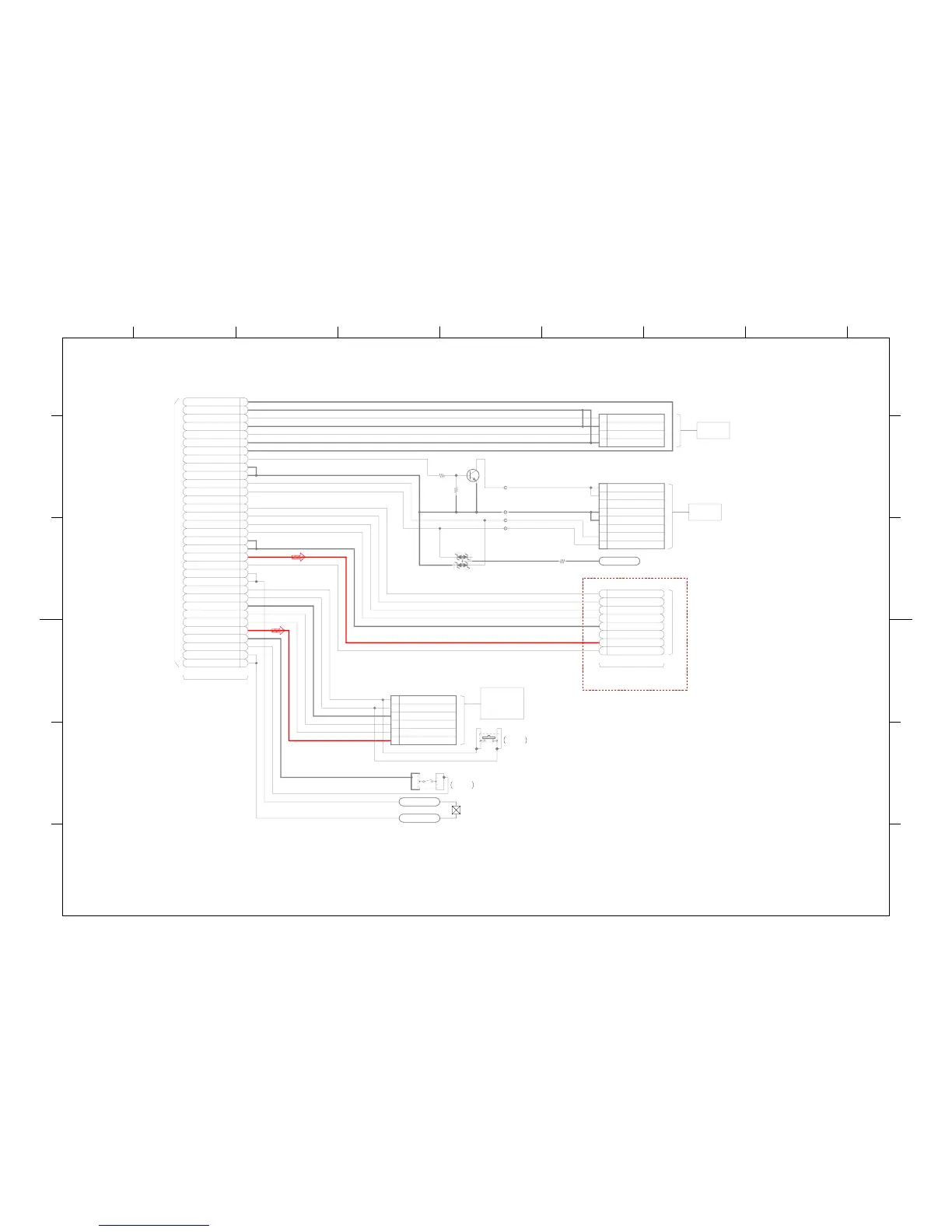

Sony SLTA77 - Control Key

SLT-A77/A77Q/A77V/A77VK/A77VQ_L3
6-27
(17/19)
AM-027
(PAGE 6-19)
CN3704
(PAGE 6-23)
DM101
GP-042
Note 1: MIC901, CN901, CONTROL SWITCH BLOCK (MD86800)
and PL901 are not included in SHM-002 FLEXIBLE
COMPLETE BOARD.
Note 2: All mounted parts (except MIC901, CN901, MD86800, PL901)
are not supplied, but they are included in SHM-002 FLEXIBLE
COMPLETE BOARD.
A77V/A77VK/A77VQ
XGPS_RST
D_3.1V
GPS_CTS
GPS_UART_RXD
GPS_RTS
GPS_UART_TXD
REG_GND_2
Q7501
2SC4505T100
R7501
10k
FB7504
R7502
47k
FB7503
LN7505
ESD_GND
FB7501
CN7501 8P
1 EXT_FLASH_TRIG
2 EXT_FLASH_TRIG
3NC
4REG_GND
5REG_GND
6NC
7 EXT_FLASH_F2
8 EXT_FLASH_F3
FB7502
D7501
DZ5S068D0R
5
43
2
1
R7503
0
CN7502 6P
1 A_3.1V
2 MODE_DIAL2
3 MODE_DIAL1
4REG_GND
5NC
6NC
LN7501
33P
1PRELMG_VDD
2PRELMG_VDD
3XINT_FLASH_UP_SENS
4REG_GND_0
5A_3.1V
6KEY_AD3
7KEY_AD2
8REG_GND_4
9KEY_MAT_SEL_1
10XKEY_MAT_IN_5
11PRELMG_B
12PRELMG_B
13XGPS_RST
14D_3.1V
15REG_GND_2
16REG_GND_2
17GPS_UART_TXD
18GPS_RTS
19GPS_UART_RXD
20GPS_CTS
21N.C.
22EXT_FLASH_F3
23EXT_FLASH_F2
24REG_GND_3
25REG_GND_3
26EXT_FLASH_TRIG
27REG_GND_1
28AUDIO_GND
29INT_MIC_R
30
AUDIO_GND
31INT_MIC_L
32AUDIO_GND
33REG_GND_1
LN7504
8P
1
GPS_RTS
2 GPS_TX0
3 GPS_CTS
4 GPS_RX0
5REG_GND
6 N.C.
7 D_3.1V
8 XGPS_RST
LN7503
PRELMG_VDD
LN7502
PRELMG_B
S7501
2
3
1
4
S7502
CN7503
4P
1 MIC_IN_L
2 AUDIO_GND
3 MIC_IN_R
4 AUDIO_GND
BUFFER
MICROPHONE
MIC901
ACCESSORY
CN901
SHOE
Pin
3
8
1
7
2
6
SWITCH
BLOCK
CONTROL
(MD86800)
FLASH
POP-UP
POP-UP
DETECT
PL901
(PLUNGER)
2
Pin
33
1
32
3
31
12345 6 7 8 9
A
B
C
D
E
F
A
B
C
D
E
F
08
SHM-002 FLEXIBLE BOARD
CONTROL KEY
