Sony SLTA77 - Eye Sensor; Lcd-022 Flexible Board

SLT-A77/A77Q/A77V/A77VK/A77VQ_L3
6-33
(7/19)
AM-027
(PAGE 6-9)
CN2101
(PAGE 6-26)
CN6201
PD-444
LND000233P
1REG_GND
2REG_GND
3N.C.
4BL_A
5N.C.
6BL_K
7N.C.
8REG_GND
9REG_GND
10D1-
11N.C.
12D1+
13REG_GND
14CLK-
15N.C.
16CLK+
17REG_GND
18D0-
19N.C.
20D0+
21REG_GND
22REG_GND
23PANEL_PS
24D_1.8V
25XAVP_RESET
26D_3.1V
27AV_SCK
28OUTLIGHT
29AV_SO
30PANEL_SENS_CLOSE1
31XCS_LCD
32REG_GND
33REG_GND
LND0001 30P
1 REG_GND
2 REG_GND
3 BL_A
4 REG_GND
5 BL_K
6 REG_GND
7 REG_GND
8D1-
9 REG_GND
10 D1+
11 REG_GND
12 CLK-
13 REG_GND
14 CLK+
15 REG_GND
16 D0-
17 REG_GND
18 D0+
19 REG_GND
20 REG_GND
21 PANEL_PS
22 D_1.8V
23 XAVP_RESET
24 D_3.1V
25 AV_SCK
26 OUTLIGHT
27 AV_SO
28 PANEL_SENS_CLOSE1
29 XCS_LCD
30 REG_GND
1
32
33
3
2
31
Pin
Pin
1
30
2
29
3
28
12 3 4
A
B
C
D
E
F
A
B
C
D
E
F
08

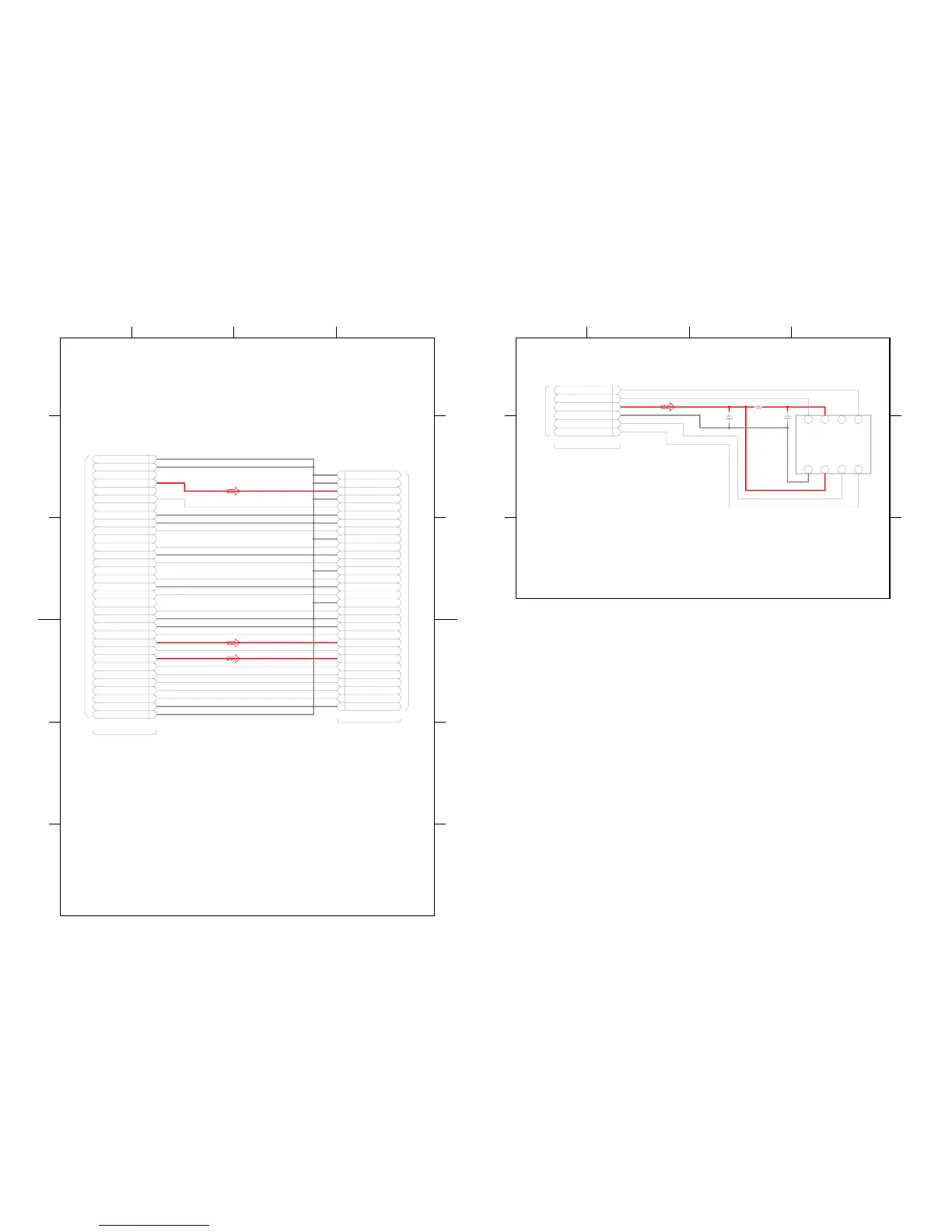

LCD-022 FLEXIBLE BOARD
AM-PD CONNECTION
(PRINTED WIRING BOARD is omitted)
Note: All mounted parts are not supplied,
but they are included in EYE-012 FLEXIBLE COMPLETE BOARD.
(7/19)
AM-027
(PAGE 6-9)
CN2103
SE7151
1
LEDA
2
LEDC
3
VCC
4
VOUT
5
GND
6
VIO
7
SDA
8
SCL
LN71516P
1EYE_SENS_LEDA
2EYE_SENSE_OUT
3EYE_SENS_VCC/VIO
4REG_GND
5CA_SDA_EYE_SENS
6CA_SCL_EYE_SENS
R7151
10
C7151
1u
C7152
1u
(EYEPIECE SENSOR)
Pin
3
6
1
5
2
4
12 3 4
A
B
C
A
B
C
08
EYE-012 FLEXIBLE BOARD
EYE SENSOR
