Sony SLTA77 - Page 57

SLT-A77/A77Q/A77V/A77VK/A77VQ_L3
6-43
: Uses unleaded solder.
mk OR C
SLK-009
XX
1
LN8406
LN8407
TH8401
LN8412
LN8411
1-885-044- 11

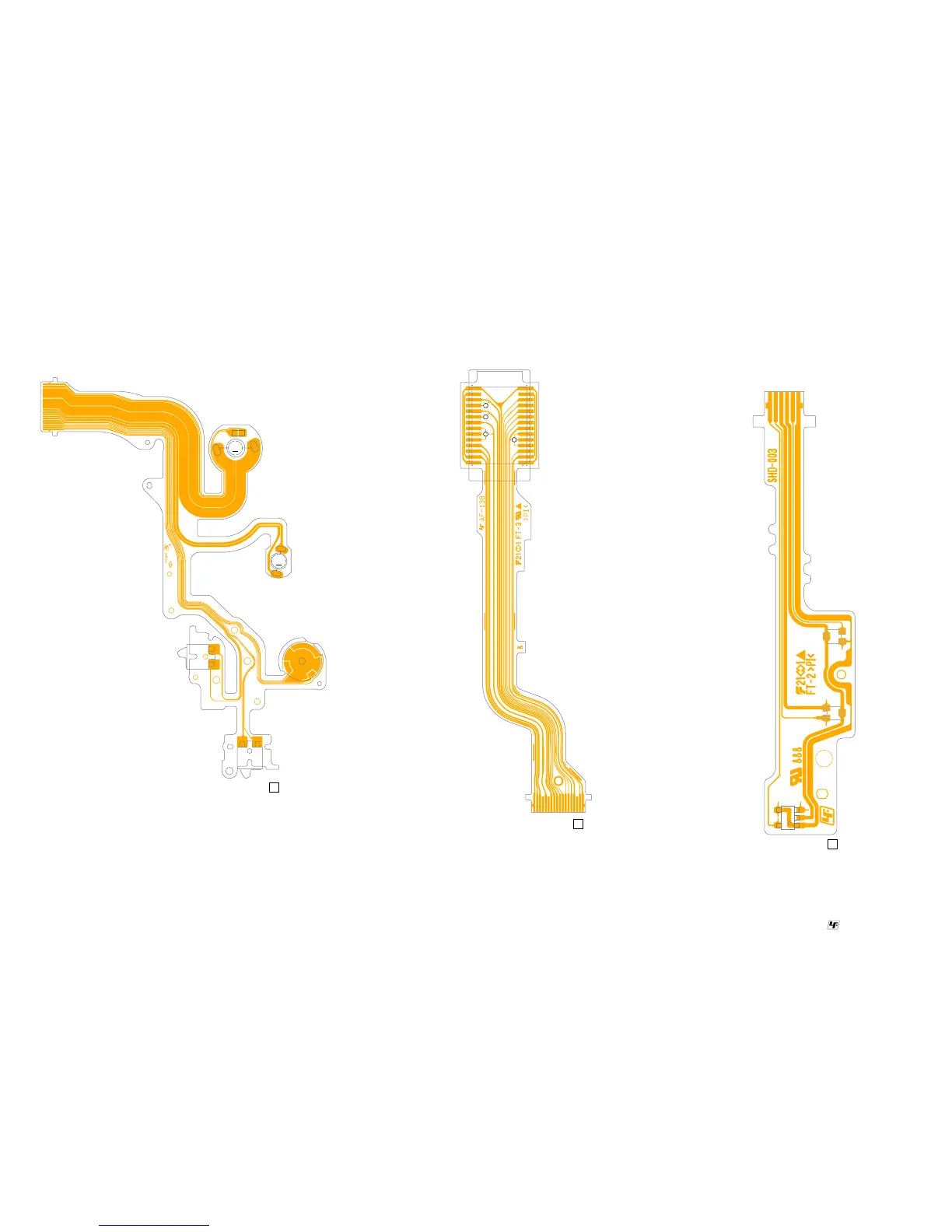

SLK-009 FLEXIBLE BOARD
M903
(CHARGE MOTOR)
All mounted parts and SLK-009 FLEXIBLE
COMPLETE BOARD are not supplied, but they
are included in SLK FPC UNIT 870
COMPLETE BOARD.
S8401
(LENS RELEASE)
S8402
()
CHARGE CAM
DETECT
M904
(DMF MOTOR)
LN8401
221
Note:
M
M
28
1
15
14
IC8051
118
LND8051
08
AF-138 FLEXIBLE BOARD
1-884-797- 11
All mounted parts and AF-138
FLEXIBLE COMPLETE BOARD
are not supplied, but they are
included in ALX-8700.
Note:
IC7651
RM7652
1
3
5
4
2
LN7651
6
1
1-884-793- 41
SHD-003 (870)
FLEXIBLE BOARD
All mounted parts are not supplied, but
they are included in SHD-003 (870)
FLEXIBLE COMPLETE BOARD.
Note:
RM7651
3
2
1
2
1
3
