Additional Information
Attaching a UHF/VHF band mixer
When using both 75-ohm coaxial cable and 300-ohm twin lead cable for
VHF/UHF antenna, use the EAC-66 UHF/VHF band separator/mixer (not
supplied) to connect the antenna to the VCR.
1 Loosen the screws on the mixer.
2 Wind the twin leads around the screws on the mixer.
3 Retighten the screws.
4 Connect the 75-ohm coaxial cable to the mixer.

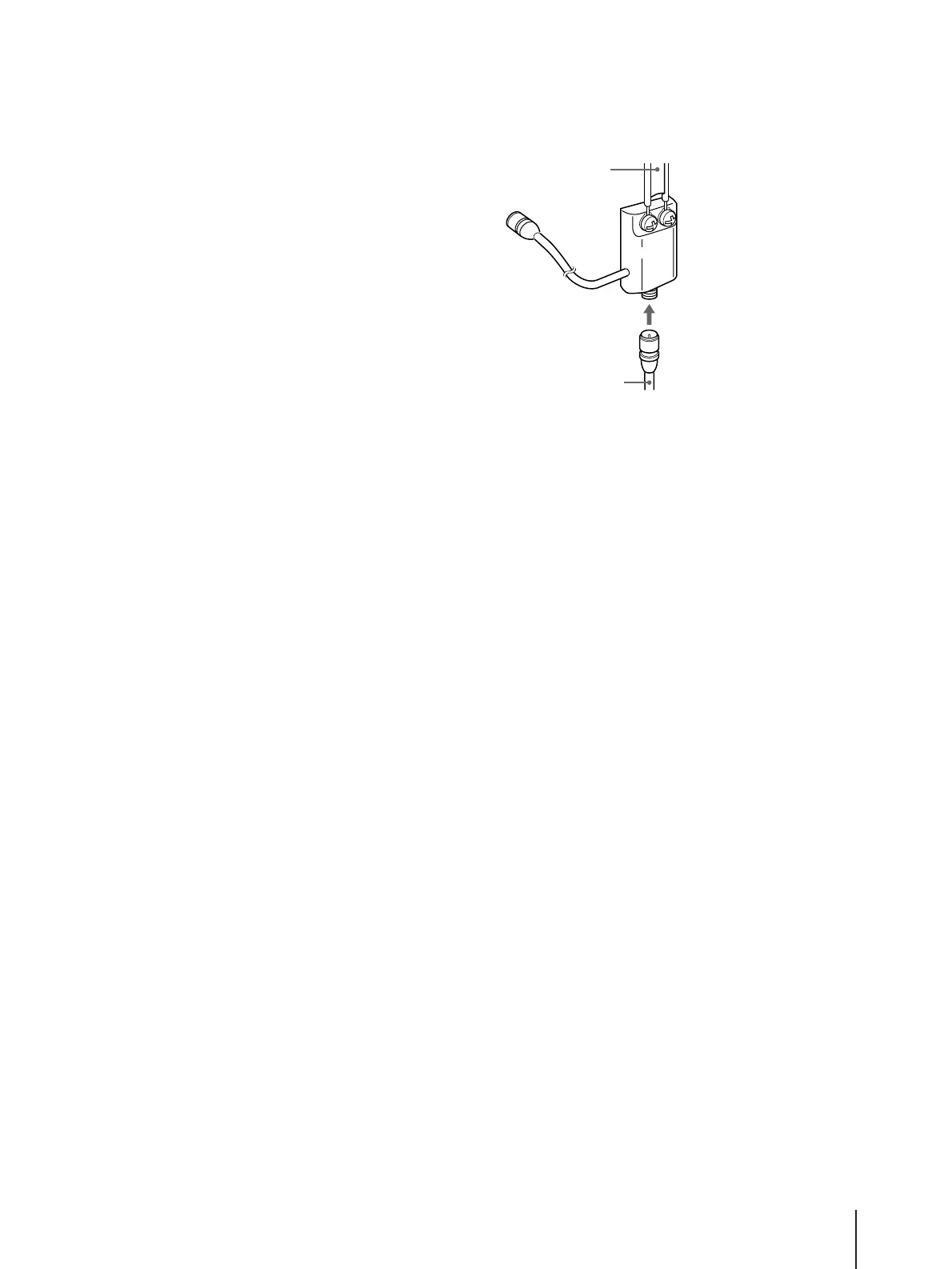

EAC-66
UHF/VHF
band
separator/
mixer (not
supplied)
300-ohm twin
lead cable
75-ohm coaxial
cable
