Additional Information

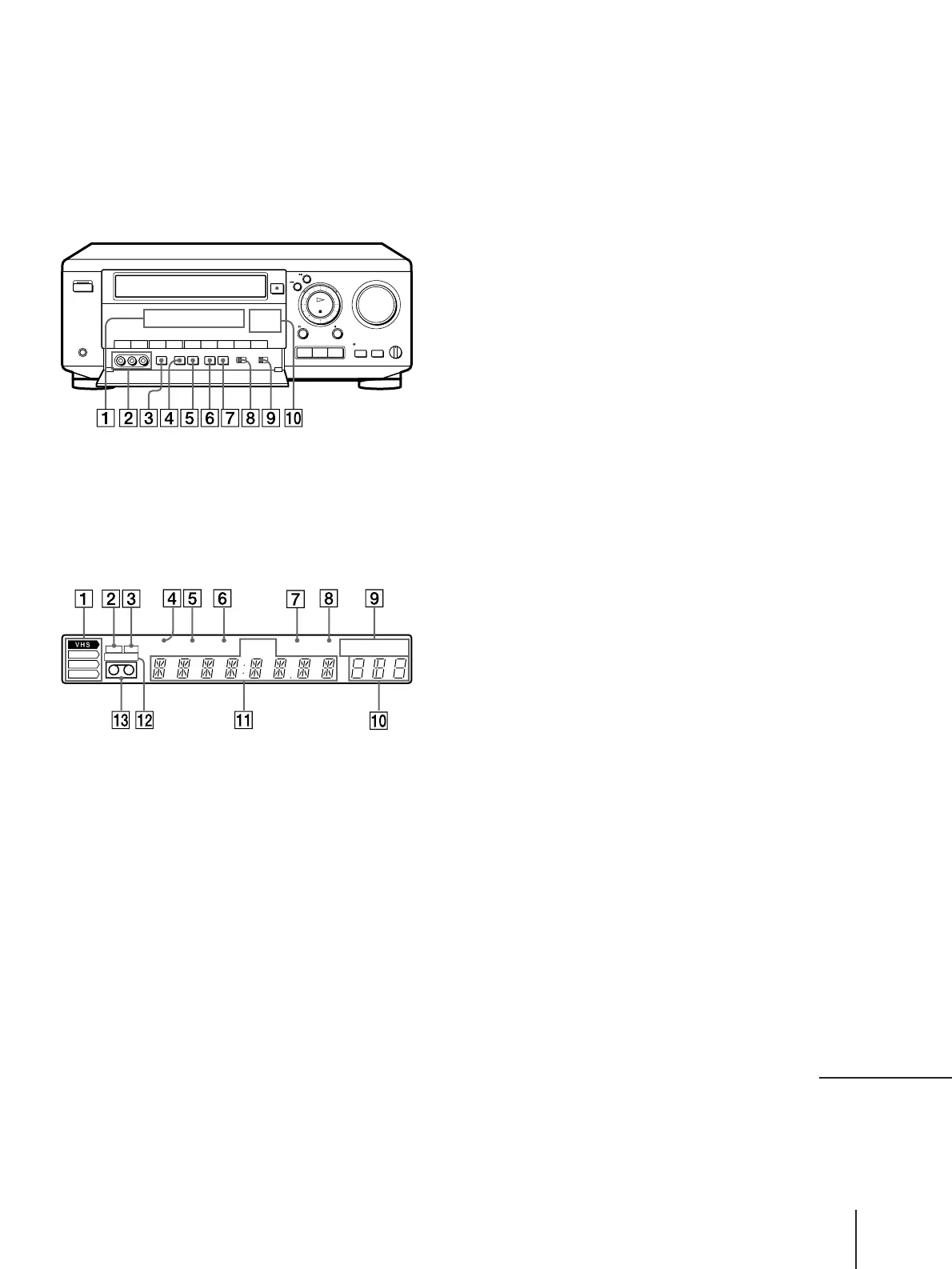

Front panel, with cover opened
1 Display window (48)
2 VIDEO 2 INPUT VIDEO/AUDIO L/R jacks (9)
3 EASY SET UP button (14, 17, 20, 23, 26, 28)
4 TIMER REC (ON/OFF) button (52)
5 QUICK TIMER button (85)
6 COUNTER RESET button (48)
7 MEMORY button (46)
8 EDIT ON/OFF switch (90)
9 VTR COMMAND MODE OFF/1/2/3 selector (62)
0 Tape operation indicators
Display window
1 Video input indicators (60)
2 TIMER indicator (52, 55, 85)
3 REC indicator (85)
4 VTR indicator (92)
5 APC indicator (88, 89)
6 MONO indicator (45)
7 STEREO indicator (45)
8 SAP indicator (86)
9 AUTO/MANUAL/MEMORY indicators (45, 46)
!º Line/channel indicator (50)
!¡ Time counter/clock/operating function/sound field
indications (48)
!™ Tape speed indicators (50)
!£ Ò (tape) indicator
continued
AUTO TRACKING
TIMER
LINE
VIDEO1
VIDEO2
REC
LPEPSP
VTR APC MONO AM STEREO SAP
HMS
PM
MEMORY
AUTO MANUAL
