Sony SLV-ED15 - Page 37

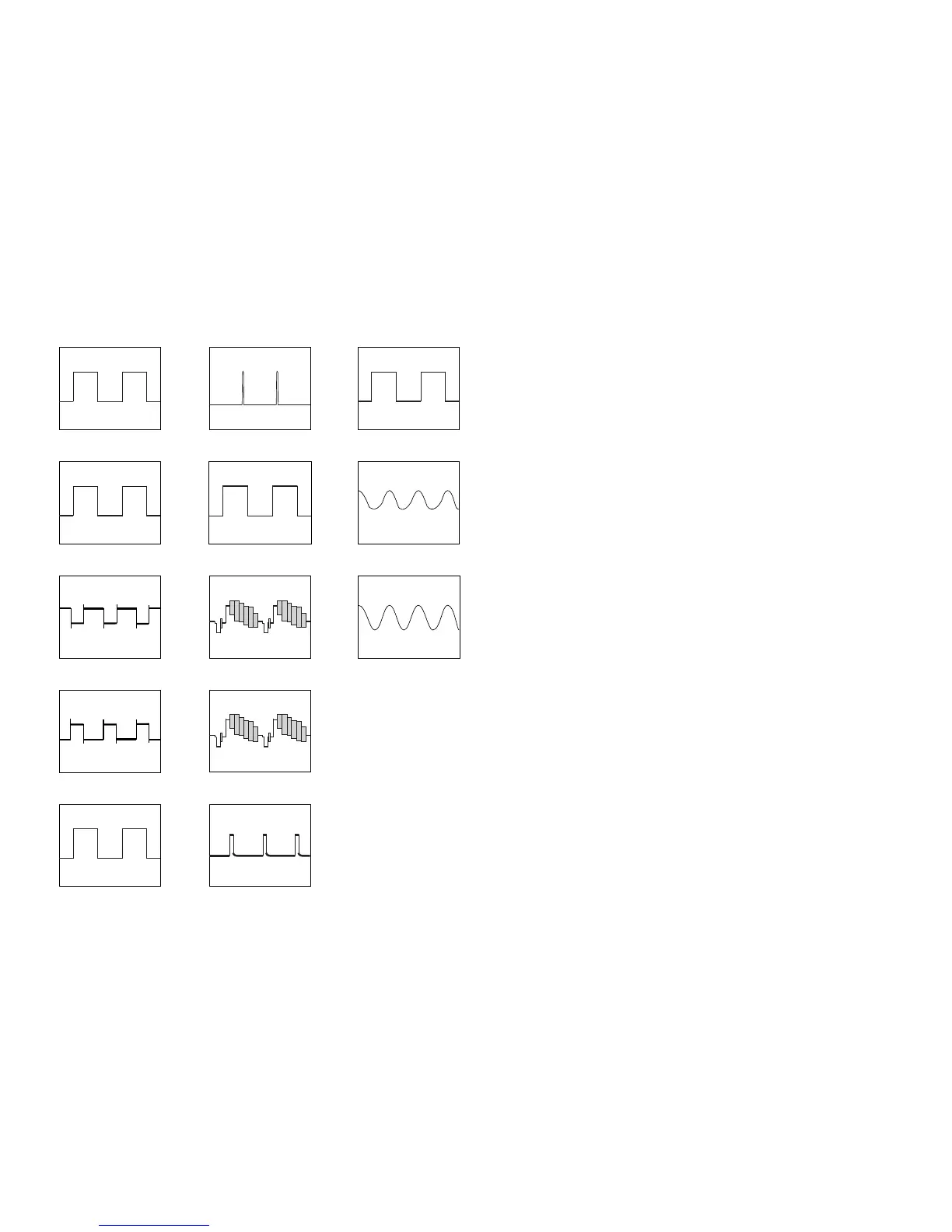

• Waveforms
1 IC101 wd REC/PB
5.2 Vp-p (25 Hz)
2 IC101 wf REC/PB
5.2 Vp-p (25 Hz)
3 IC101 ea REC/PB
5.2 Vp-p (25 Hz)
4 IC101 es REC/PB
5.5 Vp-p (25 Hz)
5 IC101 ek REC/PB
4.8 Vp-p (301.2 Hz)
6 IC101 el REC/PB
4.8 Vp-p (25 Hz)
7 IC101 r; REC/PB
4.7 Vp-p (757.6 Hz)
8 IC101 rd REC/PB
2.2 Vp-p (H)
9 IC101 rg REC/PB
2.2 Vp-p (H)
q; IC101 tf REC/PB
4.1 Vp-p (H)
qa IC101 yh REC/PB
5.1 Vp-p (H)
qs IC101 yl REC/PB
2.6Vp-p (32.768 kHz)
qd IC101 ud REC/PB
4.3 Vp-p (10 MHz)
4-15
