Sony SLV-ED15 - Mechanism Chassis Assembly (1)

8-5
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

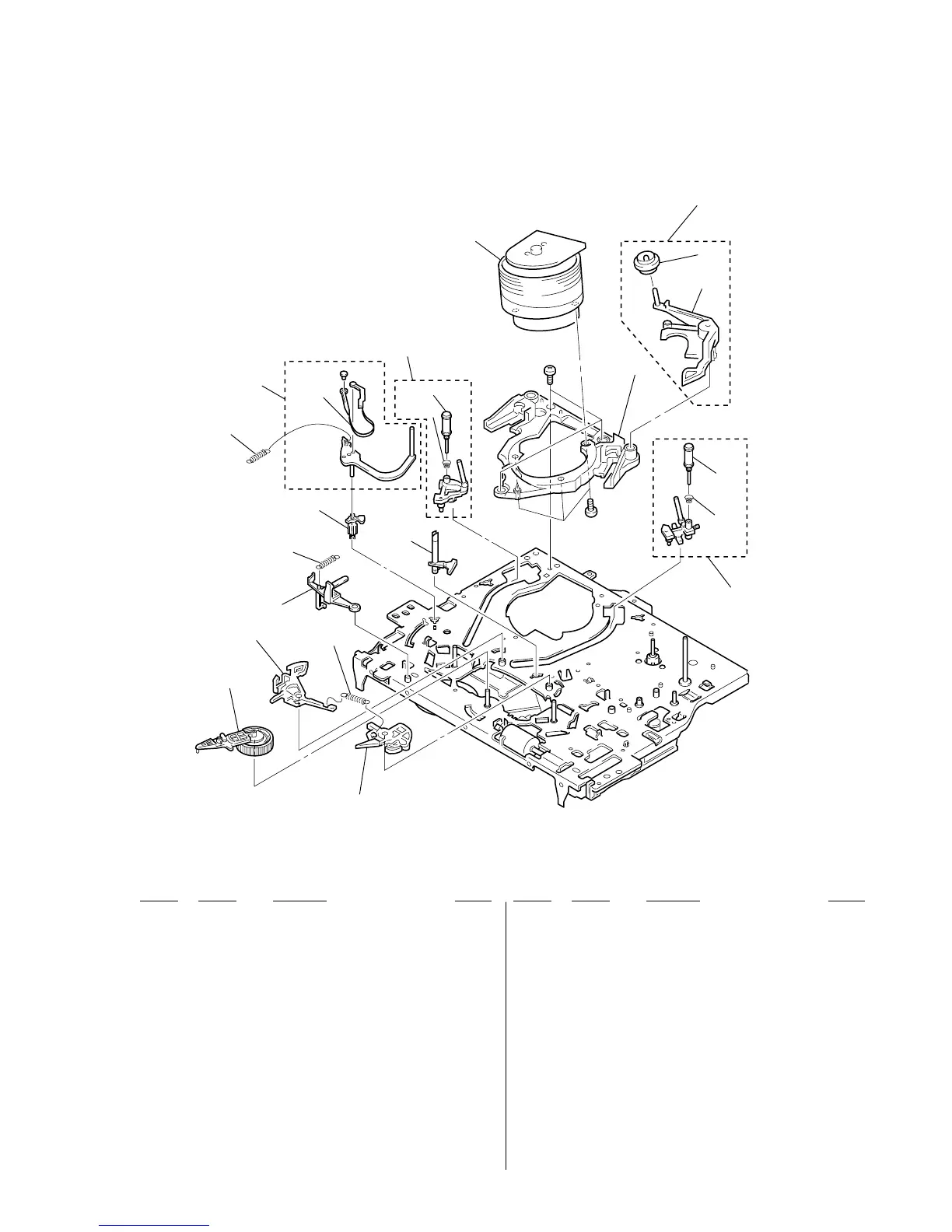

8-1-4. MECHANISM CHASSIS ASSEMBLY (2)
#4
#2
768
771
772
773
764
762
763
765
751
753
754
752
755
756
757
766
762
763
761
759
758
760
751 X-3947-581-1 BRAKE (T) ASSY, MAIN
752 3-977-462-01 SPRING, EXTENTION. (MAIN BRAKE)
753 X-3947-573-1 ARM ASSY, PENDULUM
754 X-3947-580-2 BRAKE (S) ASSY, MAIN
755 3-977-513-02 LEVER, REC. PROOF
756 3-976-767-01 SPRING, TENS. (REC. PROOF)
757 3-977-487-01 BOSS, TG1 FULCRUM
758 X-3947-587-1 TG1 ASSY (ED66SG/ED85TH/ED88MJ/ED89/
ED95: MI, MN/EZ22/EZ77AS)
758 X-3950-427-1 TG1 ASSY (SD) (EXCEPT ED66SG/ED85TH/
ED88MJ/ED89/ED95: MI, MN/EZ22/EZ77AS)
759 X-3947-589-1 BAND ASSY, TG1 (ED66SG/ED85TH/ED88MJ/
ED89/ED95: MI, MN/EZ22/EZ77AS)
759 X-3950-373-1 BAND ASSY, TG1 (SD)
(EXCEPT ED66SG/ED85TH/ED88MJ/ED89/
ED95: MI, MN/EZ22/EZ77AS)
760 3-977-488-01 SPRING (POWER TENSION)
761 A-6750-324-A SHUTTLE (S) BLOCK ASSY
762 X-3944-378-1 ROLLER ASSY, GUIDE
763 3-965-178-01 SPRING
764 3-969-632-04 BASE, DRUM
765 A-6750-328-E SHUTTLE (T) BLOCK ASSY
766 3-977-501-01 PLATE, LUMINOUS
768 1-772-360-11 DRUM ASSY, DZH-89D-R
(ED15/ED25/ED33/ED39/EZ11/EZ22)
768 8-839-048-51 DRUM ASSY, DZH-0A1A/Z-RP
(ED85/ED88/ED89/ED95/EZ66/EZ77)
768 8-839-050-51 DRUM ASSY, DZH-0A3A/Z-RP
(ED55/ED66/EZ44)
771 A-6746-074-G ROLLER BLOCK ASSY, HC
772 X-3947-255-1 ROLLER ASSY, HC
773 3-975-724-07 ARM, HC
