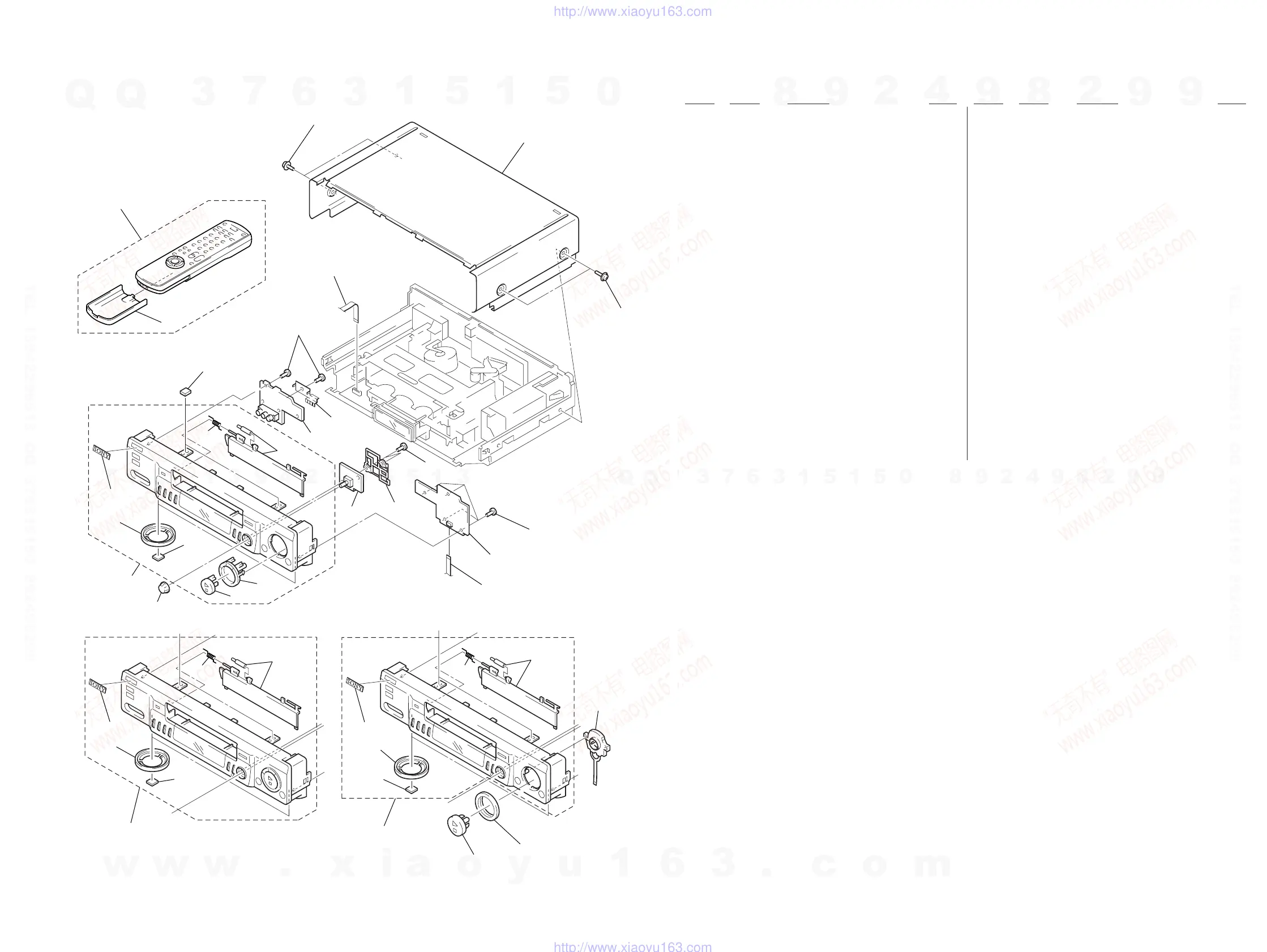

8-1-3. FRONT PANEL AND CABINET ASSEMBLIES
(ED40/ED60/ED70/EZ40/EZ60/EZ70)
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
101 X-3949-341-1 PANEL, ASSY FRONT (EZ40)
101 X-3949-342-1 PANEL, ASSY FRONT (ED40)
101 X-3949-343-1 PANEL, ASSY FRONT (ED60)
101 X-3949-344-1 PANEL, ASSY FRONT (EZ60)
101 X-3949-345-1 PANEL, ASSY FRONT (ED70)
101 X-3949-346-1 PANEL, ASSY FRONT (EZ70: AS)
101 X-3949-347-1 PANEL, ASSY FRONT (EZ70: NZ)
102 3-052-763-01 KNOB, ETR (P5) (EXCEPT ED40/EZ40)
102 3-052-763-11 KNOB, ETR (P5) (ED40/EZ40)
104 3-953-432-01 SPRING (GE), FL
105 3-943-995-01 EMBLEM (NO.5), SONY (ED40/EZ40)
105 3-943-995-31 EMBLEM (NO.5), SONY (EXCEPT ED40/EZ40)
* 106 3-977-160-01 INSULATOR
107 3-987-816-01 RING, BUTTON (ED40/EZ40)
108 3-972-518-11 BUTTON, CENTER (ED40/EZ40)
108 3-979-309-61 BUTTON (AV), CENTER (ED70/EZ70)
109 3-988-327-21 RING (M), JOG (ED70/EZ70)
110 4-921-277-41 SCREW (B2.6X8), TAPPING, BIND
111 1-790-533-11 CABLE, FLAT (FFC) (FDM-6)
* 112 A-6791-859-A DM-85 BOARD, COMPLETE
(EXCEPT ED70/EZ70)
* 112 A-6791-873-A DM-85 BOARD, COMPLETE (ED70/EZ70)
* 113 A-6791-860-A MF-317 BOARD, COMPLETE (ED60)
* 113 A-6791-865-A MF-317 BOARD, COMPLETE (EZ40/EZ60)
* 113 A-6791-868-A MF-317 BOARD, COMPLETE (ED40)
* 113 A-6791-874-A MF-317 BOARD, COMPLETE (ED70)
* 113 A-6791-877-A MF-317 BOARD, COMPLETE (EZ70)
114 1-790-534-11 CABLE, FLAT (FFC) (FMF-36)
(ED60/EZ40/EZ60)
114 1-790-535-11 CABLE, FLAT (FFC) (FMF-33)
(ED40/ED70/EZ70)
115 3-710-901-01 SCREW, TAPPING (EXCEPT ED40/EZ40)
115 3-710-901-11 SCREW, TAPPING (ED40/EZ40)
116 3-979-313-61 CASE, UPPER (EXCEPT ED40/EZ40)
116 3-979-313-81 CASE, UPPER (ED40/EZ40)
117 1-418-159-11 COMMANDER, STANDARD (RMT-V245C)
(EZ60)
117 1-418-161-11 COMMANDER, STANDARD (RMT-V247C)
(ED60)
117 1-418-161-21 COMMANDER, STANDARD (RMT-V247D)
(ED70)
117 1-475-614-11 COMMANDER, STANDARD (RMT-V245)
(EZ70)
117 1-475-614-21 COMMANDER, STANDARD (RMT-V245A)
(EZ40)
117 1-475-616-11 COMMANDER, STANDARD (RMT-V247)
(ED40)
118 3-709-128-01 COVER, BATTERY (for RMT-V245/V245A/
V245C) (EZ40/EZ60/EZ70)
118 3-709-133-11 COVER, BATTERY (for RMT-V247/V245C/
V247D) (ED40/ED60/ED70)
* 119 A-6791-861-A KK-19 BOARD, COMPLETE
120 3-052-765-01 HOLDER, ETR (P5)
121 1-762-844-21 SWITCH, ROTARY (ED70/EZ70)
