Sony SLV-SE310 - MA-401 Board Removal; Mechanism Deck Removal

2-2

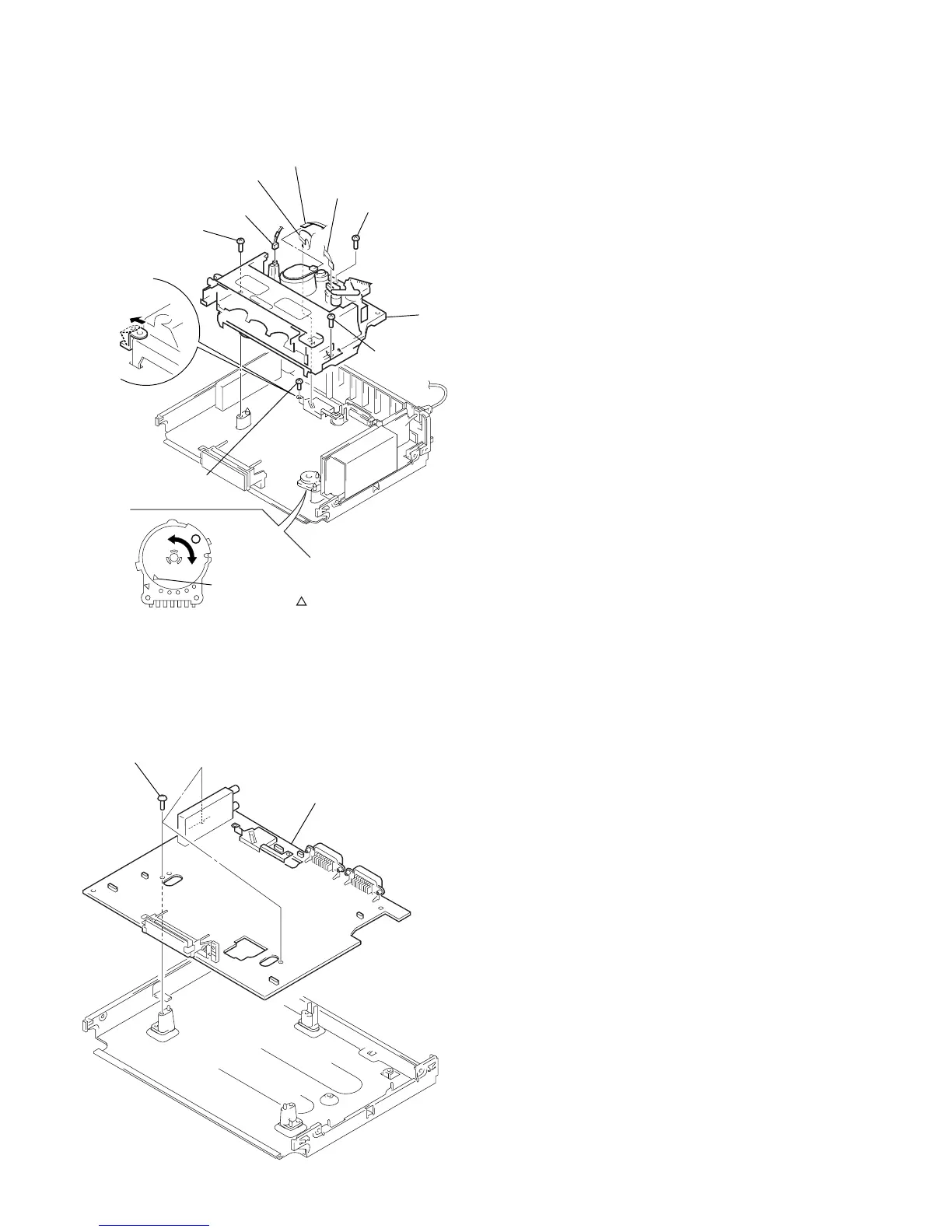

2-5. MECHANISM DECK REMOVAL
2-6. MA-401 BOARD REMOVAL
3 Flat cable
(FFM-001)
4 Flat cable (FAC-8)
(ACE head)
0 Mechanism
deck
6 Claw
1 Connector
(FE head)
7 Screw
(BVTP3 × 12)
8 Screw
(BVTP3 × 12)
9 Screw
(BVTP3 × 12)
5 Screw
(B3)
2 Flexible board
Note: When mounting the mechanism deck,
first align mark on the rotary switch.
2 MA-401 board
1 Three screws
(B3)
