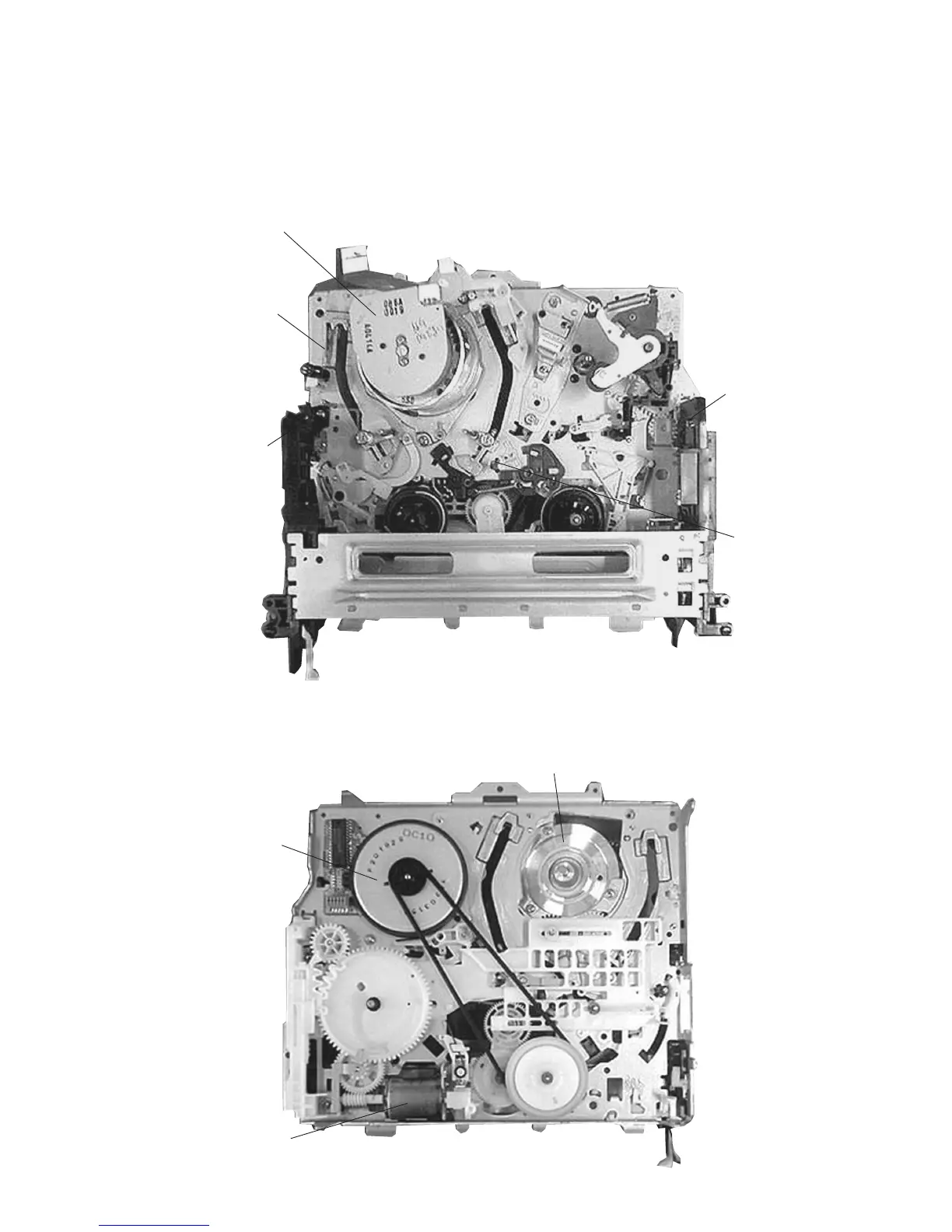

2-7. INTERNAL VIEWS
Drum assembly (M901) (DZH-92D-R)
1-772-361-11 (SE310)
Drum assembly (M901) (DZH-93D-R)
1-772-362-11 (SE410/SE510)
Drum assembly (M901) (DZH-92D-R)
1-772-361-11 (SE310)
Drum assembly (M901) (DZH-93D-R)
1-772-362-11 (SE410/SE510)
M903
Cam motor assembly
X-3947-577-1
M902
Capstan motor
1-698-971-11
FE head
1-500-471-11
Q101
Tape end sensor
8-729-043-84
D100
Tape top/end LED
8-719-048-26
Q100
Tape top sensor
8-729-043-84
