Sony SLV-SE70 Service Manual

4-31E

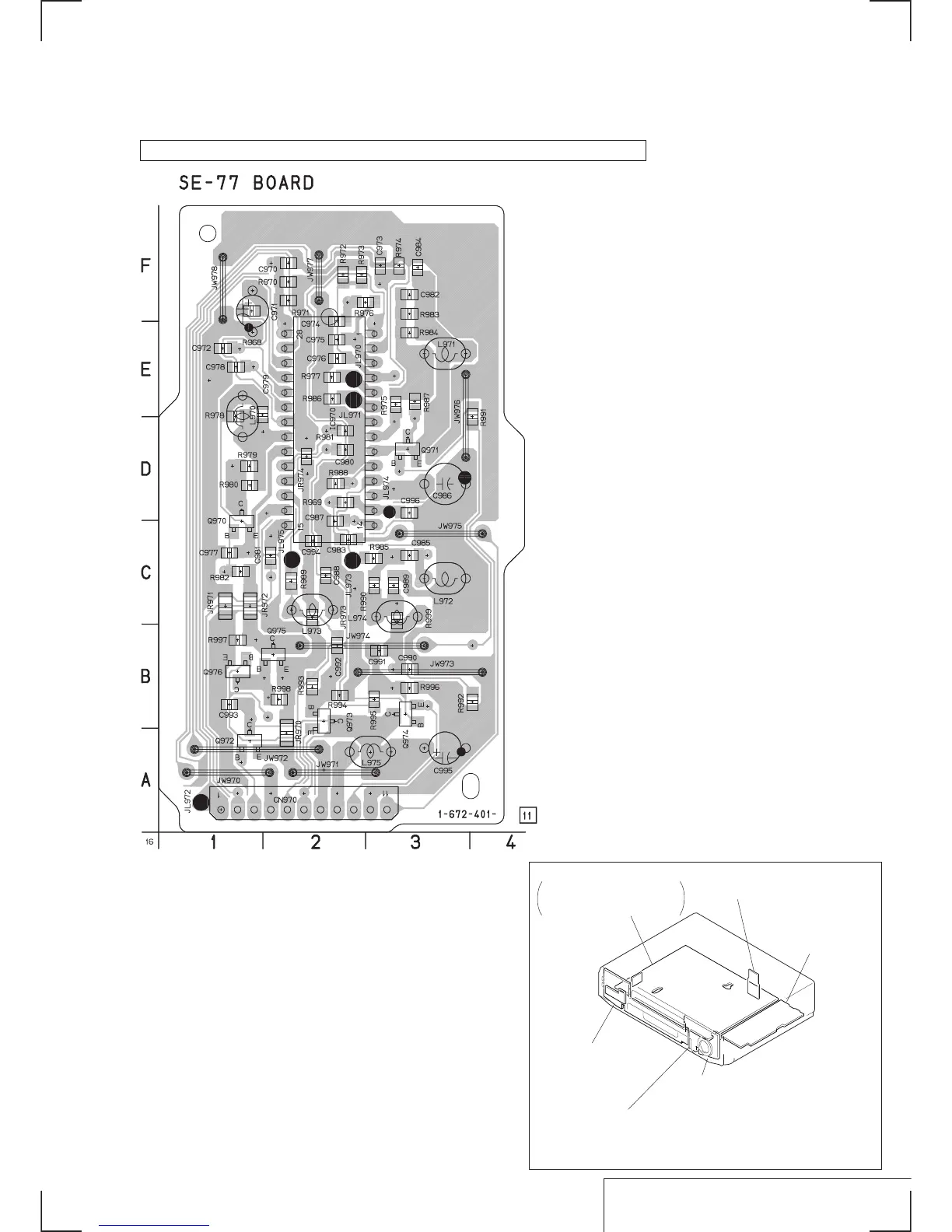

SE-77(SECAM VIDEO SIGNAL PROCESSOR) PRINTED WIRING BOARD (SE70B/SE80B/SX70B MODEL)
— Ref. No. SE-77 Board:1,000 Series —
There are few cases that the part printed on this diagram isn’t mounted in this model.
SECAM VIDEO SIGNAL PROCESSOR
SE-77
MA-339
REC/PB AMP, VIDEO, AUDIO,
SERVO/SYSTEM CONTROL,
TUNER
FR-152
(MODE CONTROL)
DM-82
(OPERATION SWITCHES)
POWER BLOCK
SRV878EK
SE-77 (SLV-SE70B/SE80B/SX70B)
(SECAM)
KK-17 (SLV-SE80B/SE80NP/SE80UX/SE80VC1/SE80VC2/SX80)
(TIMER)
SU-5 (SLV-SE50EE)
(SURROUND)
SLV-SE35/SE50/SE60/SE70/SE80/SX60/SX70/SX80
