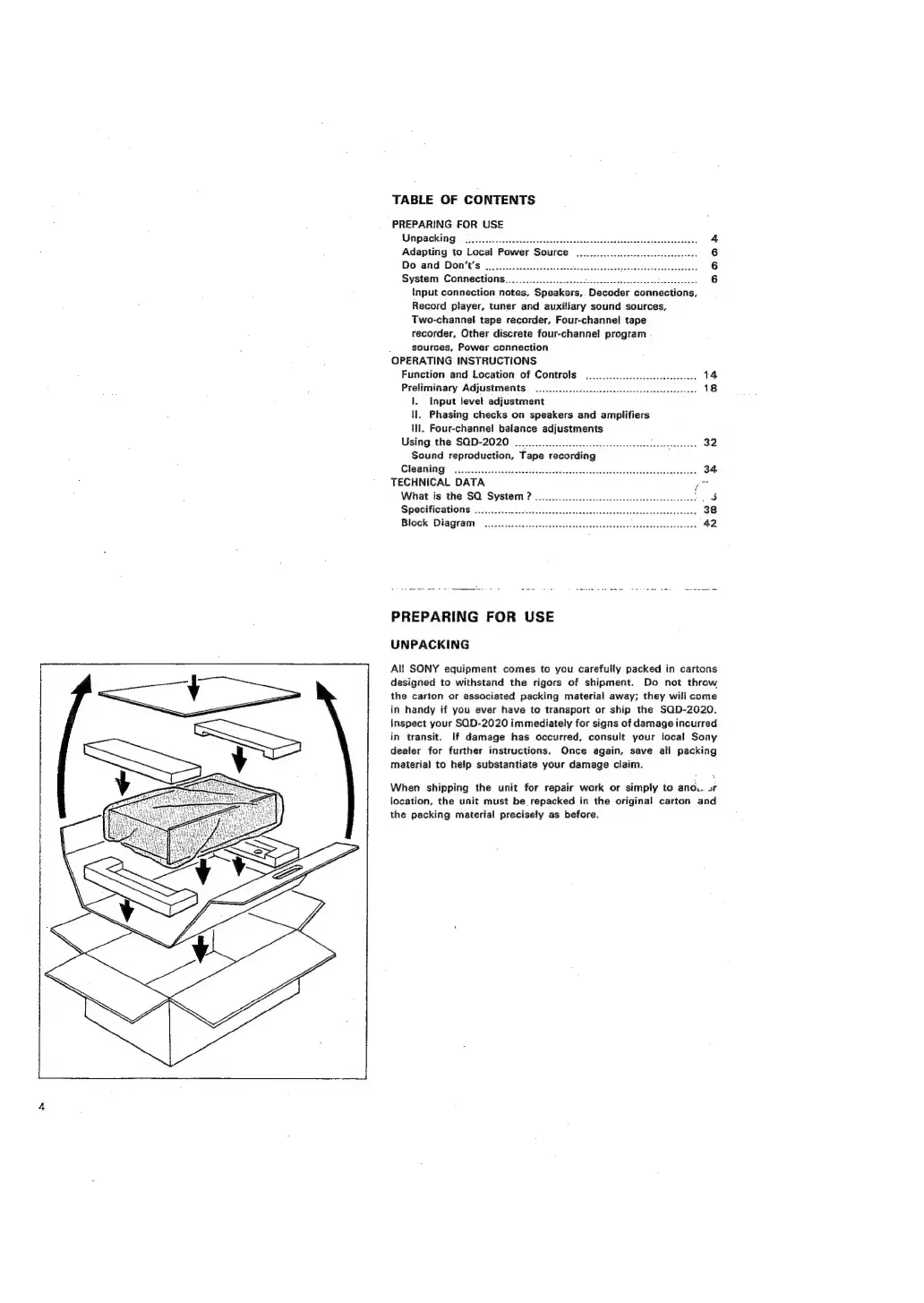

Sony SQD-2020 - PREPARING FOR USE; UNPACKING

TABLE OF CONTENTS
PREPARING FOR USE
REUBBONI IG coasaiy Snascisns sds dedtosoacseviabibledelaticete ener anersdaldcone
Adapting to Local Power Source ...
Do and Don’t’s .....
System Connection oe
Input connection notes, Speakers,. Decoder connections,
Record player, tuner and auxiliary sound sources,
Two-channel tape recorder, Four-channel tape
recorder, Other discrete four-channel program
sources, Power connection
OPERATING INSTRUCTIONS
Function and Location of Controls
Preliminary Adjustments
|. Input level adjustment
ll. Phasing checks on speakers and amplifiers
iil. Four-channel balance adjustments
Using the SQD-2020 ooo eceeceececctecseceececteneeeeeres 32
Sound reproduction, Tape recording ;
Cleaning
TECHNICAL DATA
What is the SQ System? ....
Specifications ...
Block Diagram
OOnh
PREPARING FOR USE
UNPACKING
All SONY equipment comes to you carefully packed in cartons
designed to withstand the rigors of shipment. Do not throw
the carton or associated packing material away; they will come
in handy if you ever have to transport or ship the SQD-2020.
Inspect your SQD-2020 immediately for signs of damage incurred
in transit. If damage has occurred, consult your local Sony
dealer for further instructions. Once again, save all packing
material to help substantiate your damage claim.
When shipping the unit for repair work or simply to ano... or
location, the unit must be repacked in the original carton and
the packing material precisely as before.
