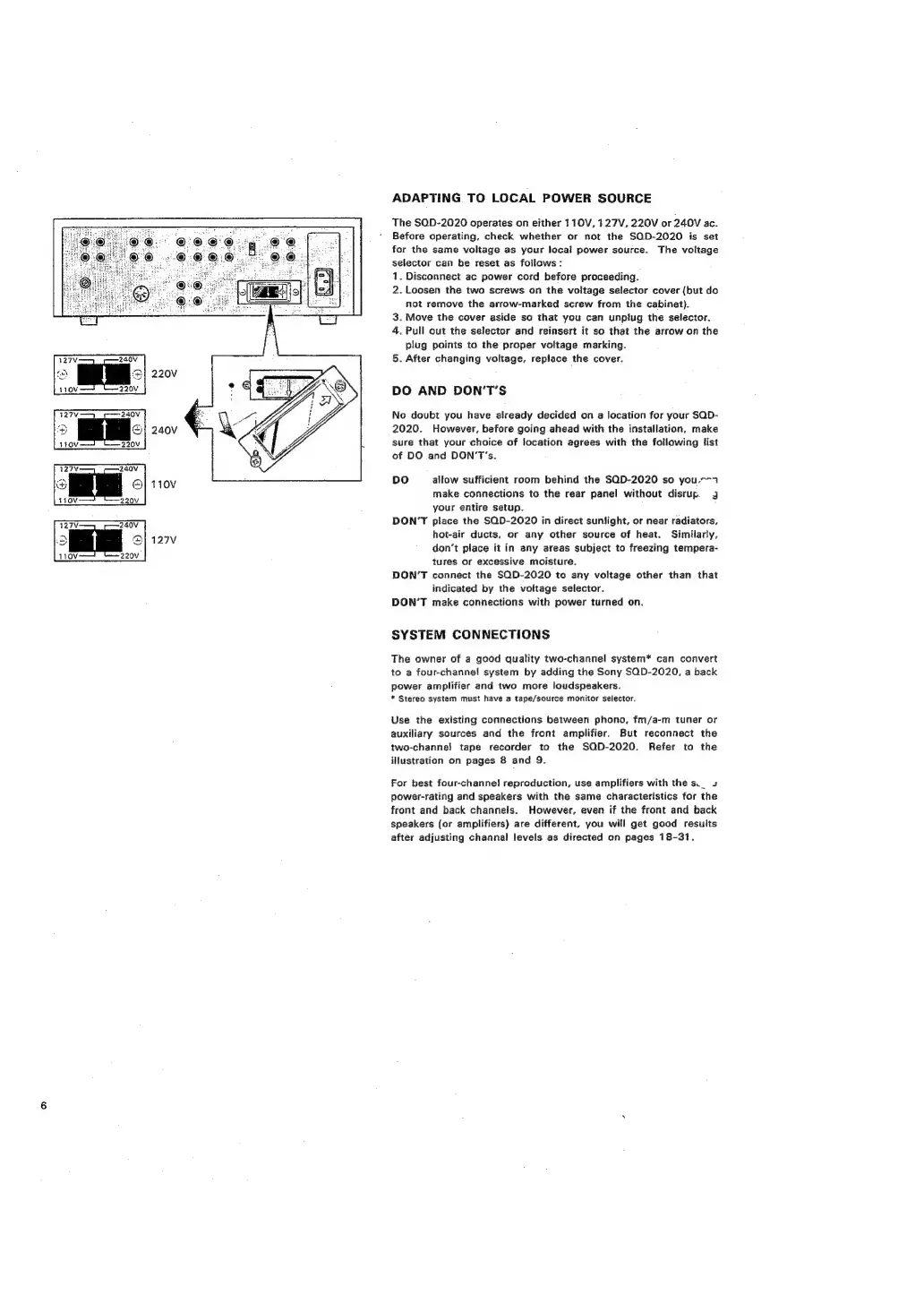

ADAPTING TO LOCAL POWER SOURCE
The SQD-2020 operates on either 110V, 127V, 220V or 240V ac.
Before operating, check whether or not the SQD-2020 is set
for the same voltage as your local power source. The voltage
selector can be reset as follows:
1. Disconnect ac power cord before proceeding.
2. Loosen the two screws on the voitage selector cover (but do
not remove the arrow-marked screw from the cabinet).
3. Move the cover aside so that you can unplug the selector.
4. Pull out the selector and reinsert it so that the arrow on the
plug points to the proper voltage marking.
5. After changing voltage, replace the cover.
DO AND DON’T’S
No doubt you have already decided on a location for your SQD-
2020. However, before going ahead with the installation, make
sure that your choice of location agrees with the following list
of DO and DON’T‘s.
DO allow sufficient room behind the SQD-2020 so you.--1
make connections to the rear panel without disrup. J
your entire setup.
DON'T place the SQD-2020 in direct sunlight, or near radiators,
hot-air ducts, or any other source of heat. Similarly,
don’t place it in any areas subject to freezing tempera-
tures or excessive moisture.
DON’T connect the SQD-2020 to any voltage other than that
indicated by the voltage selector.
DON’T make connections with power turned on.
SYSTEM CONNECTIONS
The owner of a good quality two-channel system* can convert
to a four-channe! system by adding the Sony SQD-2020, a back
power amplifier and two more loudspeakers.
* Stereo system must have a tape/source monitor selector.
Use the existing connections between phono, fm/a-m tuner or
auxiliary sources and the front amplifier. But reconnect the
two-channe} tape recorder to the SQD-2020. Refer to the
illustration on pages 8 and 9.
For best four-channe! reproduction, use amplifiers with thes. +
power-rating and speakers with the same characteristics for the
front and back channels. However, even if the front and back
speakers (or amplifiers) are different, you will get good results
after adjusting channal levels as directed on pages 18-31.
