Sony SRF-M97 - Exploded Views; Rear Cabinet Components

15
SRF-M97

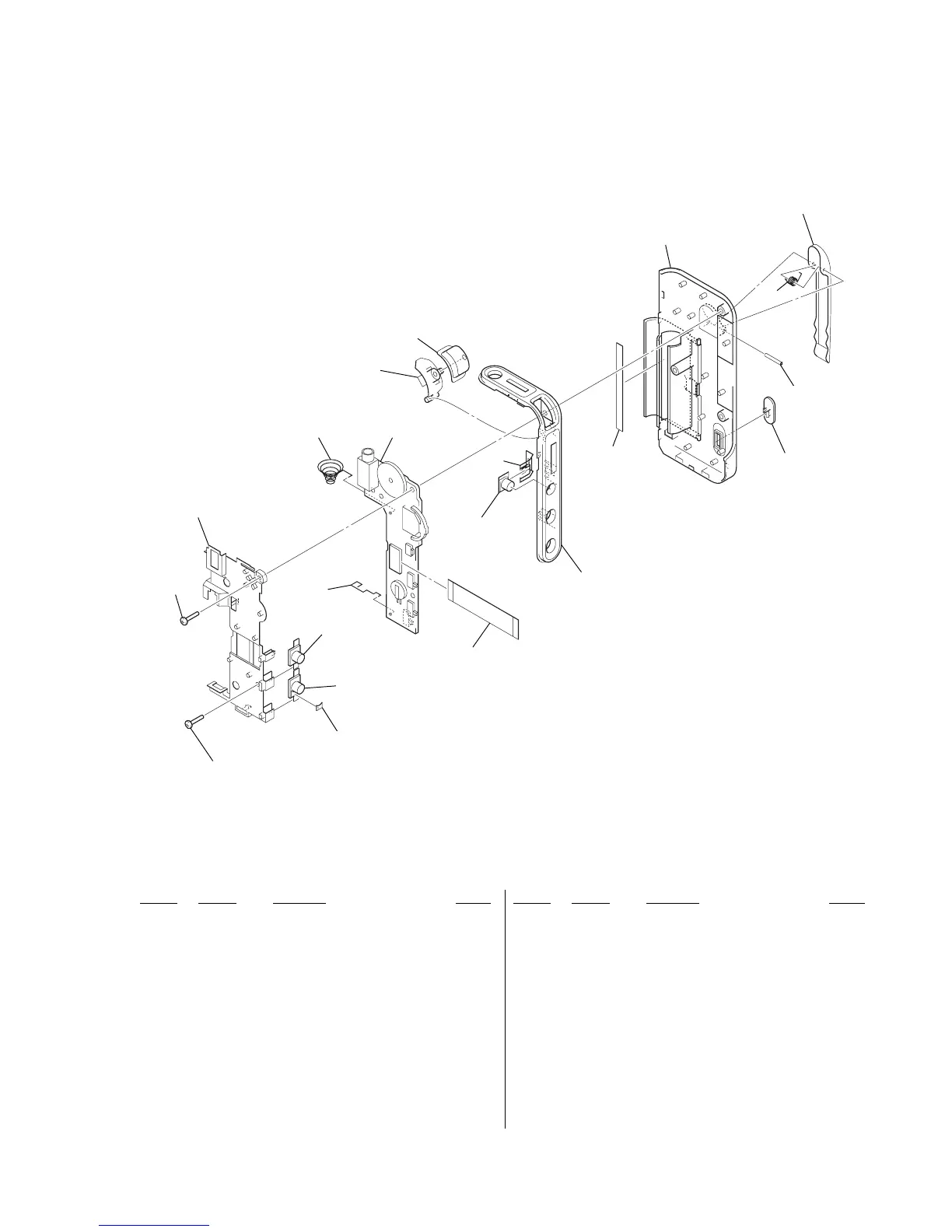

5-2. CABINET (REAR) SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 3-252-824-01 SCREW (1.4)
52 2-189-418-01 HOLDER (JACK)
53 2-189-428-01 TERMINAL (–), BATTERY
54 A-1079-165-A AMP BOARD, COMPLETE (JE)
54 A-1085-528-A AMP BOARD, COMPLETE (EXCEPT AEP, JE)
54 A-1090-510-A AMP BOARD, COMPLETE (AEP)
55 2-189-425-01 CAP (POWER)
56 2-189-421-01 BUTTON (POWER)
58 X-2024-707-1 CABINET (REAR) ASSY (AEP)
58 X-2024-708-1 CABINET (REAR) ASSY (E)
58 X-2024-709-1 CABINET (REAR) ASSY (US, AUS, CH)
58 X-2024-771-1 CABINET (REAR) ASSY (JE)
59 3-244-861-01 SPRING (CLIP)
60 3-244-857-01 CLIP
61 7-626-305-31 SPRING-PIN 1X8
62 2-189-427-01 KNOB (REAR)
63 2-189-416-01 PANEL, SIDE
64 2-189-426-01 CAP (MODE)
65 2-189-422-01 BUTTON (MODE)
66 1-679-616-11 CONNECTION FLEXIBLE BOARD
67 2-189-429-01 TERMINAL (+), BATTERY
68 2-189-423-01 KNOB (MEGA BASS)
69 2-189-424-01 KNOB (HOLD)
70 2-189-434-01 SHEET (HOLD)
71 2-348-456-01 CUSHION (LID)
51
52
51
70
69
68
67
64
63
62
61
60
59
58
65
66
53
54
56
55
71
Ver. 1.1
