Sony SRF-M97 - Disassembly Instructions; Side Panel and Rear Cabinet Removal

SRF-M97
5

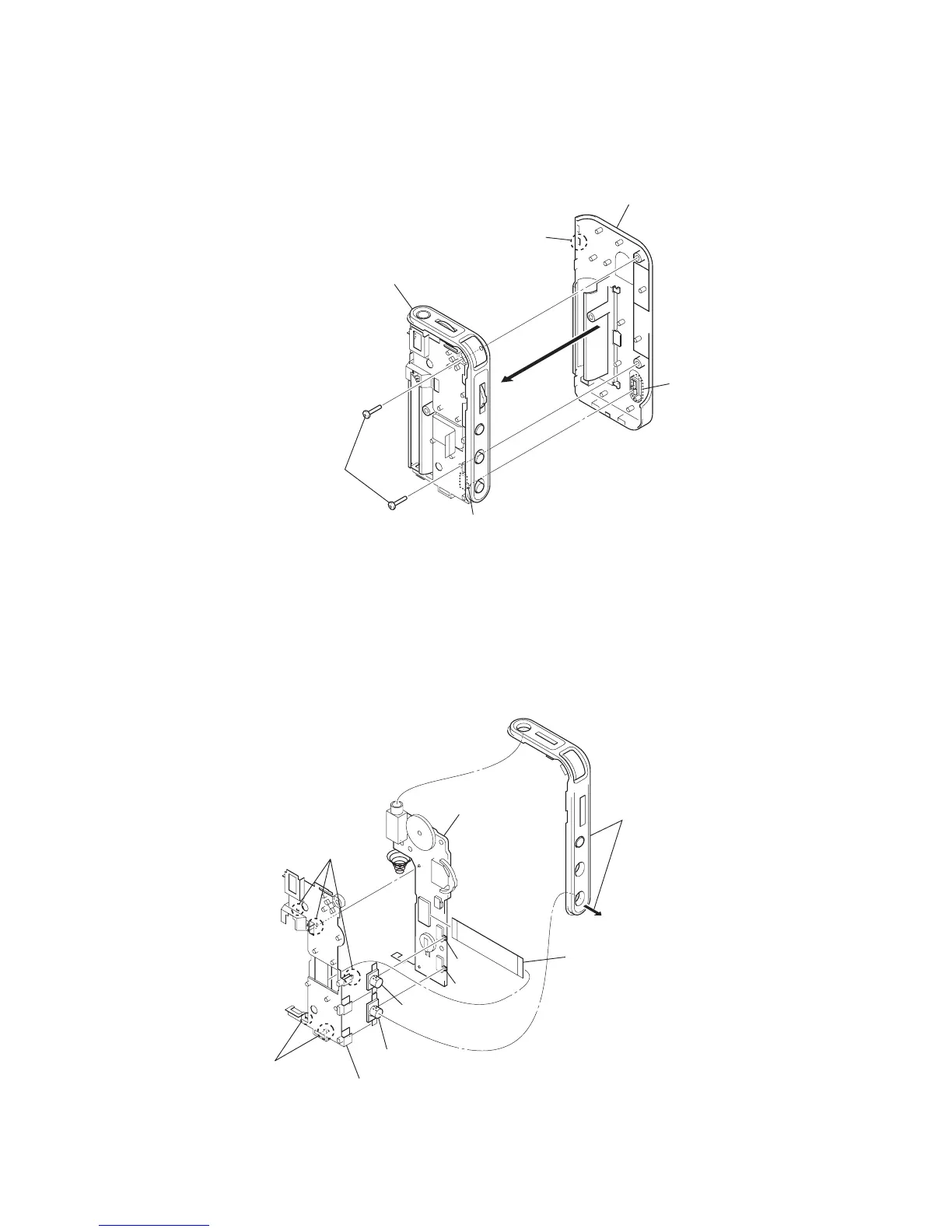

2-3. SIDE PANEL SECTION, CABINET (REAR) ASSY
2-4. AMP BOARD
S205
S204
Note : On installation of AMP board,
adjust the position of switch
(S204, S205) and knob (hold, mega bass).
4 connection flexible board
(CN201)
5 knob (mega bass)
6 knob (hold)
7 holder (jack)
1 Please open a side panel
forcibly and do not remove it.
2 two claws
2 three claws
3 AMP board
S203
1 two screws (1.4)
2 claw
4 cabinet (rear) ass
y
3 side panel section
Note : On installation of side panel section
and cabinet (rear) assy,
adjust the position of switch
(S203) and knob (rear).
knob (rear)
