SRF-M97
4
Note: Follow the disassembly procedure in the numerical order given.

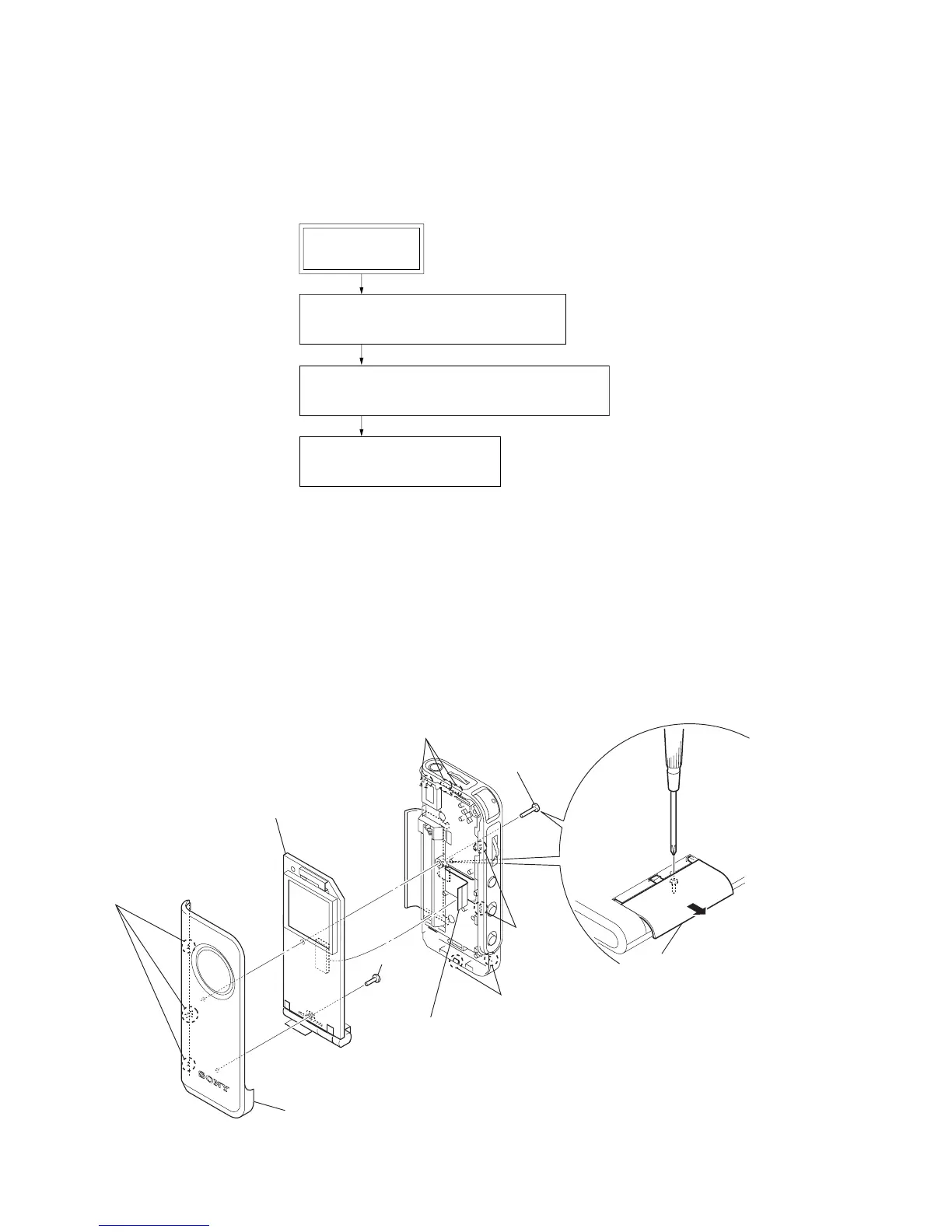

2-2. MAIN BOARD, CABINET (FRONT) ASSY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SECTION 2
DISASSEMBLY
SET
2-2. MAIN BOARD, CABINET (FRONT) ASSY
(Page 4)
2-4. AMP BOARD
(Page 5)
2-3. SIDE PANEL SECTION, CABINET (REAR) ASSY
(Page 5)
2
screw (1.4)
5
screw
(B1.4)
6
MAIN board
4
connection flexible borad
(CN1)
3
three claws
3
three claws
7
cabinet (front) assy
3
two claws
3
two claws
1
Open the battery lid.
To Next Page
