Sony SRF-M97 - Front Cabinet Components

14
SRF-M97
SECTION 5
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-2024-706-2 CABINET (FRONT) ASSY
2 2-189-433-01 SHEET, INSULATING
3 A-1085-523-A MAIN BOARD, COMPLETE (JE)
3 A-1085-531-A MAIN BOARD, COMPLETE (EXCEPT US, JE)
3 A-1096-774-A MAIN BOARD, COMPLETE (US)
4 2-189-430-01 CASE (LCD)
5 1-694-757-11 CONDUCTIVE BOARD, CONNECTION
6 2-189-432-01 LEAF (LCD), COPPER
7 2-189-420-01 HOLDER (LCD)
8 2-348-455-01 LEAF (MC), COPPER
9 2-190-137-01 SHEET (BATT)
10 3-252-824-01 SCREW (1.4)
11 3-254-136-01 SCREW (B1.4)
12 2-189-419-01 HOLDER (ANT)
L4 1-419-843-21 COIL, FERRITE-ROD ANTENNA (MW)
LCD1 1-805-704-11 DISPLAY PANEL, LIQUID CRYSTAL

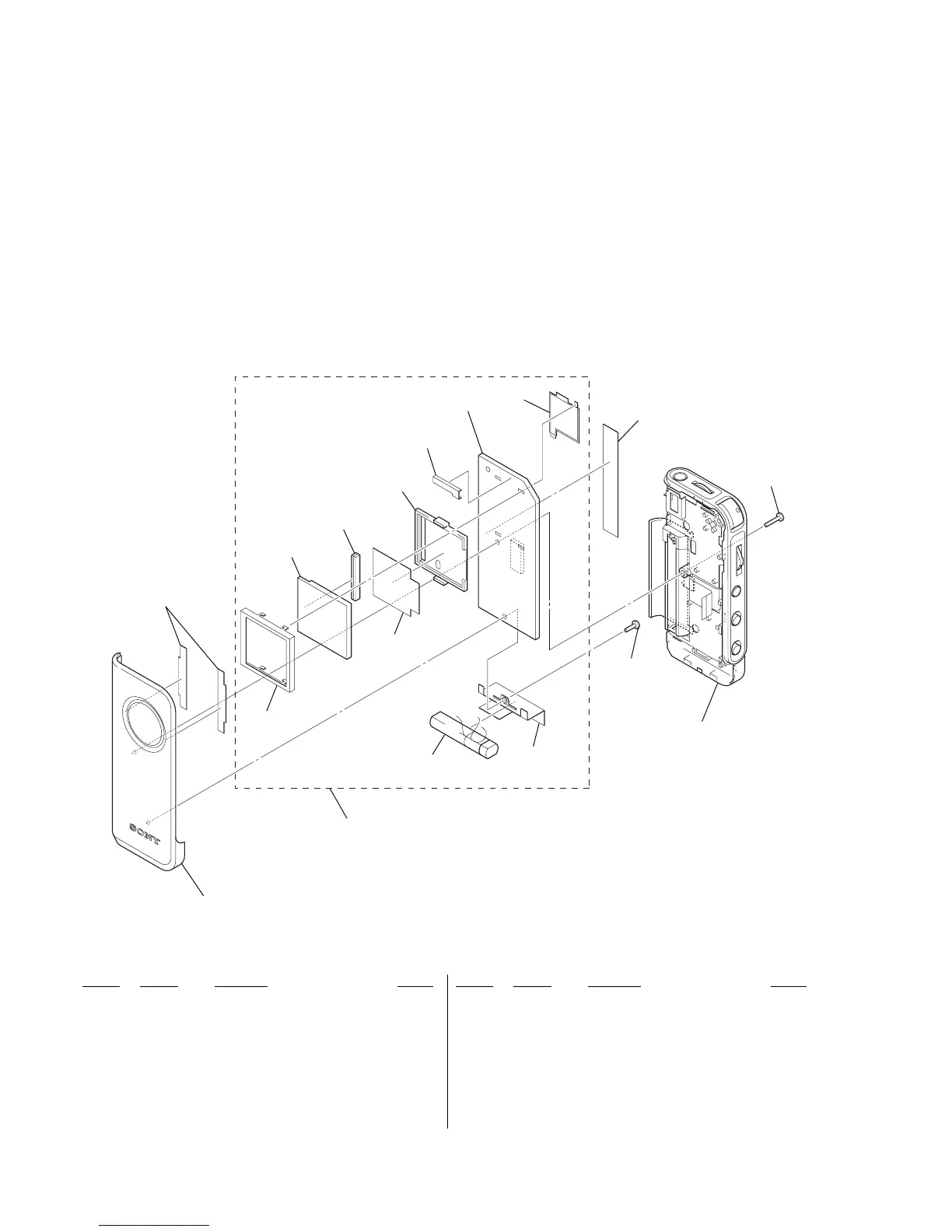

5-1. CABINET (FRONT) SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AUS: Australian model
CH : Chinese model
JE : Tourist model
2
4
3
12
5
7
8
9
10
11
6
1
not supplied
MAIN board
cabinet rear assy
LCD1
L4
Ver. 1.1
