75
NAS-E35HD/SS-CE35HD

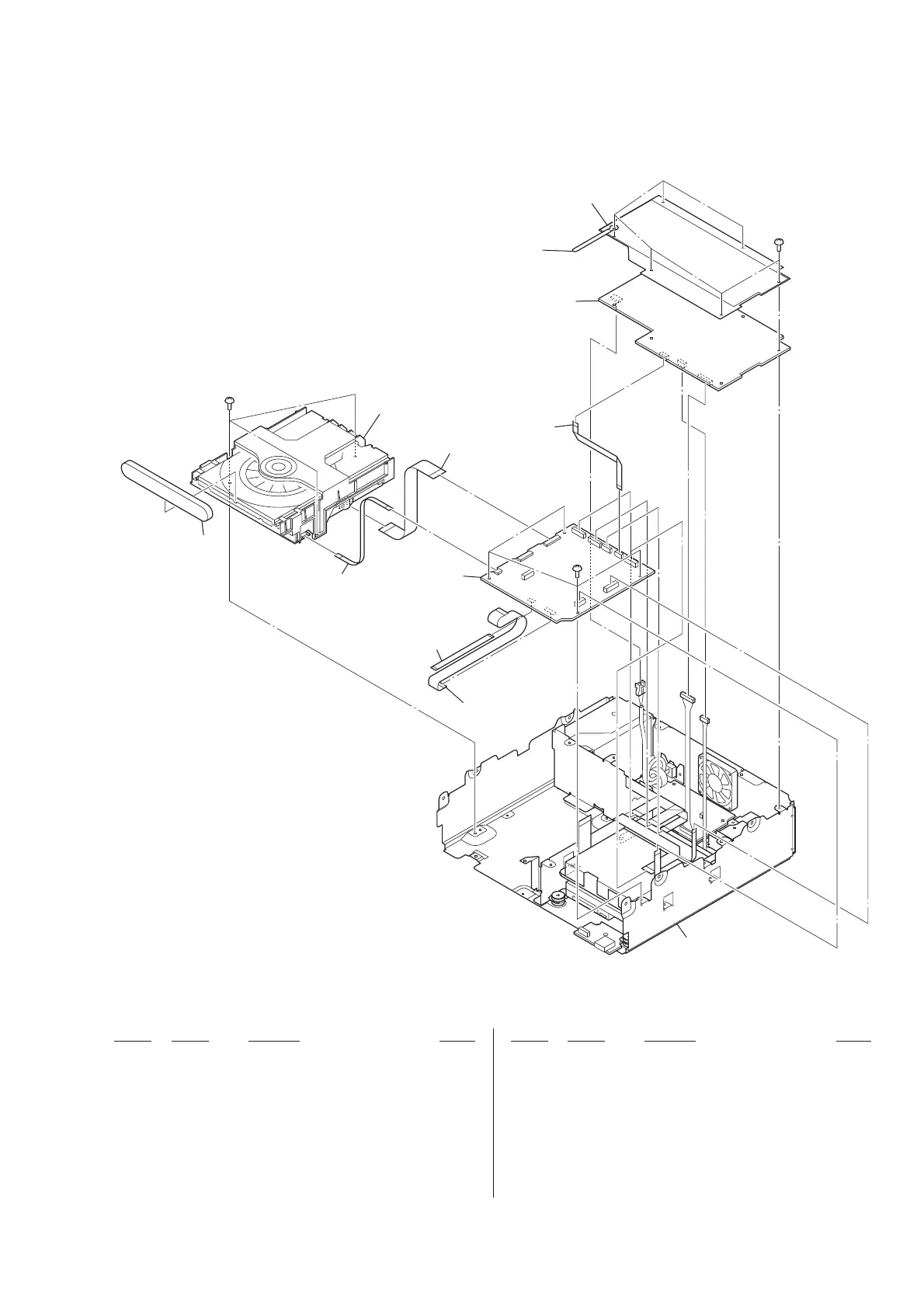

7-3. MAIN SECTION
101 A-1498-599-A MAIN BOARD, COMPLETE (AEP)
101 A-1536-379-A MAIN BOARD, COMPLETE (RU)
101 A-1536-382-A MAIN BOARD, COMPLETE (UK)
101 A-1547-154-A MAIN BOARD, COMPLETE (MX, AR)
101 A-1550-937-A MAIN BOARD, COMPLETE (E51)
101 A-1550-944-A MAIN BOARD, COMPLETE (AUS)
102 1-831-755-21 CABLE, FLEXIBLE FLAT (5 CORE)
103 1-831-780-21 CABLE, FLEXIBLE FLAT (11 CORE)
104 1-832-533-21 CABLE, FLEXIBLE FLAT (5 CORE)
105 3-280-185-01 PLATE (CD TRAY), ORNAMENTAL
106 1-835-450-21 CABLE, FLEXIBLE FLAT (19 CORE)
107 1-832-795-21 CABLE, FLEXIBLE FLAT (5 CORE)
108 A-1498-601-A POWER BOARD, COMPLETE (EXCEPT MX, E51)
108 A-1547-194-A POWER BOARD, COMPLETE (MX)
108 A-1550-939-A POWER BOARD, COMPLETE (E51)
#1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#1
HDD section
loading mechanism section
not supplied
#1
#1
not supplied
108
107
106
104
105
103
101
102
