26
ST-S3

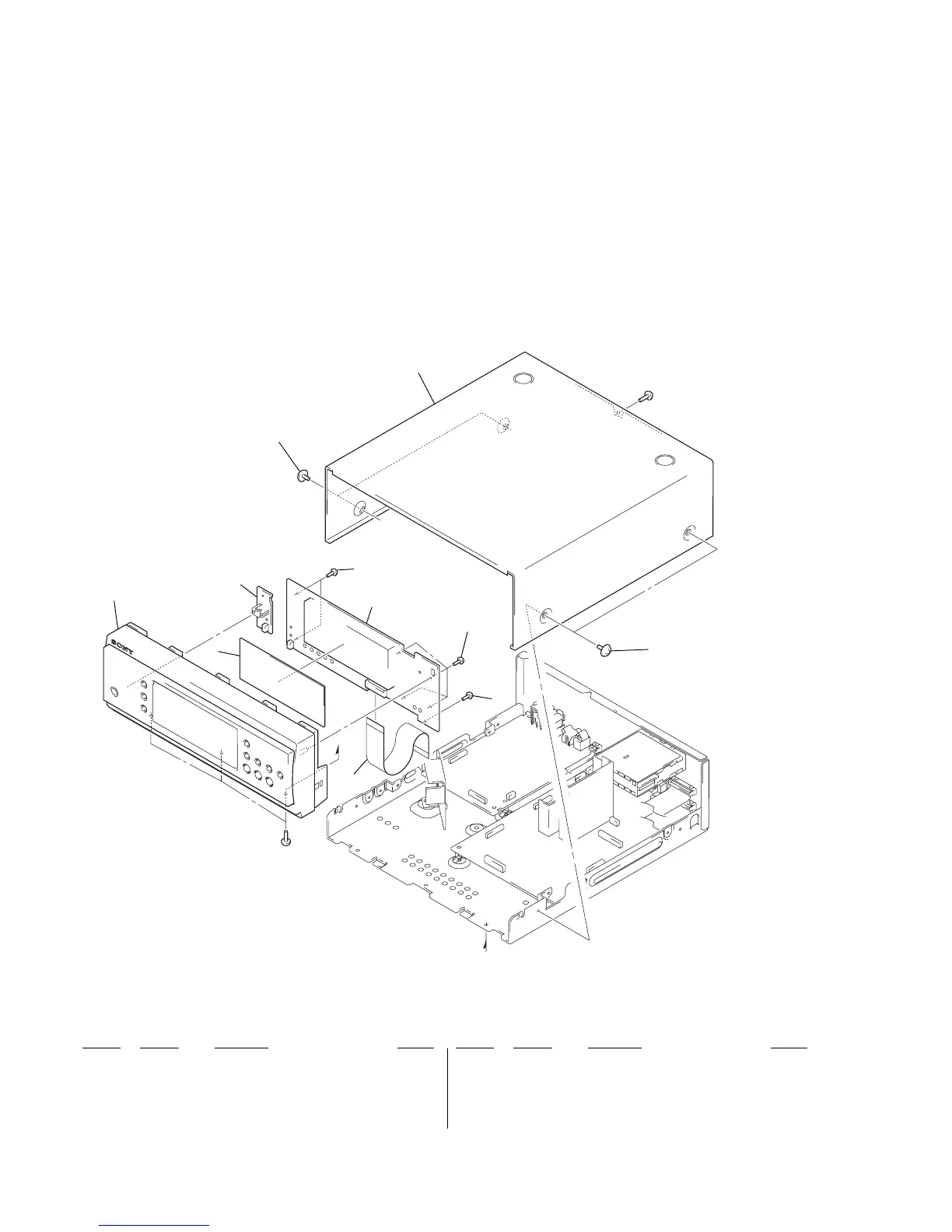

6-1. COVER, FRONT PANEL SECTION
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
#1
#2
2
3
4
5
6
5
5
7
8
7
1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4953-451-1 PANEL ASSY (ST), FRONT
2 1-773-114-11 WIRE (FLAT TYPE) (19 CORE)
3 4-232-351-01 FILTER (FL)
4 1-680-697-11 SIRCS BOARD
5 4-951-620-01 SCREW (2.6X8), +BVTP
6 A-4476-267-A PANEL BOARD, COMPLETE
7 3-363-099-21 SCREW (CASE 3 TP2)
8 4-233-134-31 COVER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
To Next Page
