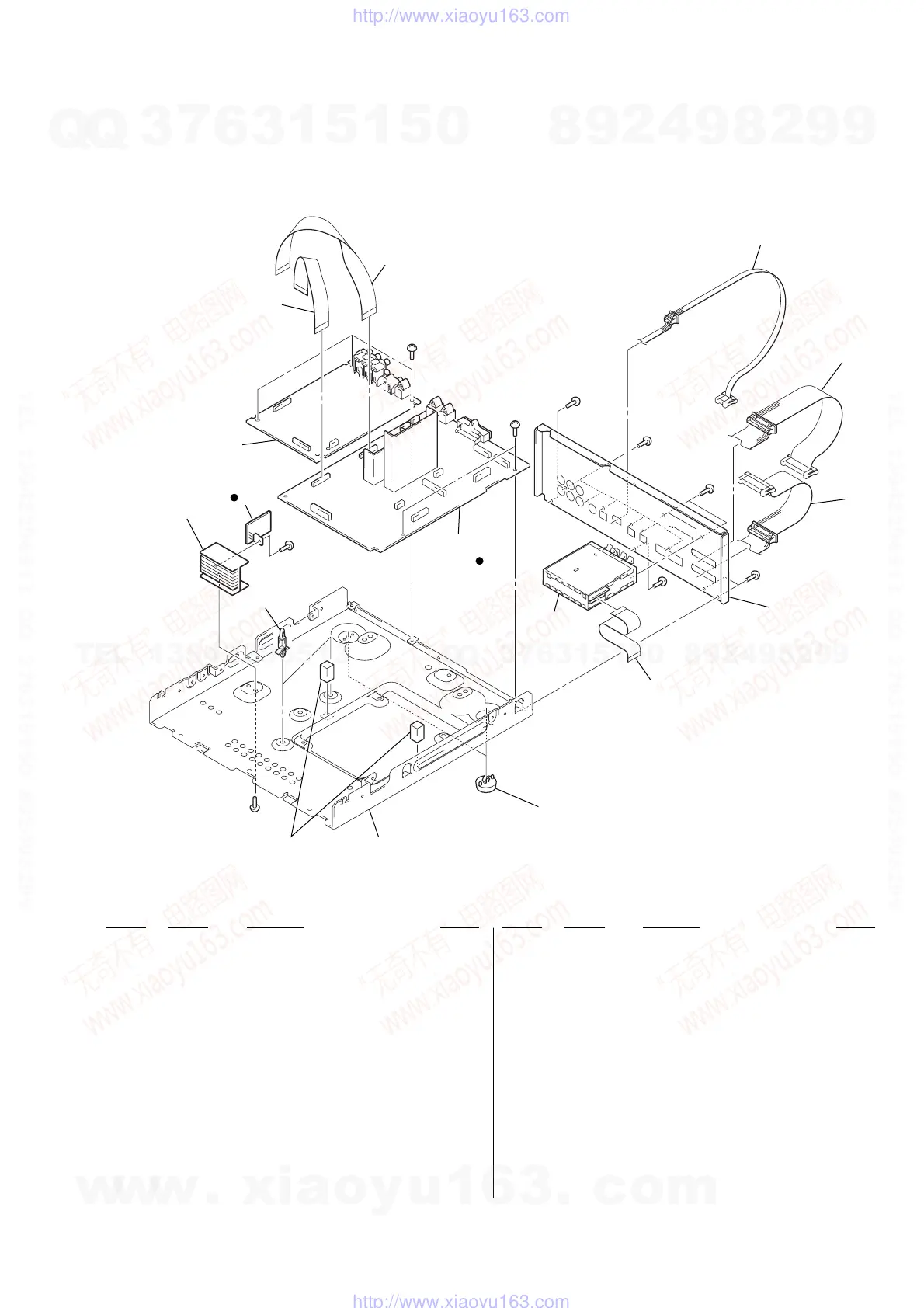

6-2. CHASSIS SECTION
54
55
53
#1
not supplied
#1
#1
#1
#1
#1
#1
#1
#1
52
(Including A)
A
51
not supplied
not supplied
62
61
60
56
57
58
59
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 51 4-924-098-01 HOLDER, PC BOARD
52 A-4727-046-A MAIN BOARD, COMPLETE (TH)
52 A-4727-047-A MAIN BOARD, COMPLETE (AEP, UK)
52 A-4727-049-A MAIN BOARD, COMPLETE (E, MX)
52 A-4727-053-A MAIN BOARD, COMPLETE (EA)
52 A-4727-275-A MAIN BOARD, COMPLETE (AUS, KR, SP)
53 A-4727-694-A DSP BOARD, COMPLETE
(AUS, EA, E, KR, MX, SP)
53 A-4727-696-A DSP BOARD, COMPLETE (AEP, UK)
53 A-4727-697-A DSP BOARD, COMPLETE (TH)
54 1-757-599-11 WIRE (FLAT TYPE) (21 CORE)
55 1-757-600-11 WIRE (FLAT TYPE) (23 CORE)
56 1-757-629-11 CORD (WITH CONNECTOR) 5P
57 1-757-631-11 CORD (WITH CONNECTOR) 20P
58 1-757-630-11 CORD (WITH CONNECTOR) 19P
59 4-232-349-01 PANEL (ST-DVD), BACK (AEP, UK)
59 4-232-349-11 PANEL (ST-DVD), BACK (AUS)
59 4-232-349-21 PANEL (ST-DVD), BACK (EA)
59 4-232-349-31 PANEL (ST-DVD), BACK (E, SP)
59 4-232-349-41 PANEL (ST-DVD), BACK (MX)
59 4-232-349-51 PANEL (ST-DVD), BACK (TH)
59 4-232-349-61 PANEL (ST-DVD), BACK (KR)
60 1-769-940-11 WIRE (FLAT TYPE) (11 CORE)
(AUS, EA, E, KR, MX, SP, TH)
60 1-773-004-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
61 1-693-529-11 TUNER (FM/AM) (AEP, UK)
61 1-693-531-71 TUNER (FM/AM) (AUS, EA, E, MX, SP, TH)
61 1-693-538-11 TUNER (FM/AM) (KR)
62 4-965-822-01 FOOT
#1 7-685-646-79 SCREW +BVTP (3X8 TYPE2 N-S)
