Sony ST-S9 - Case; Front Panel Section

6
ST-S9

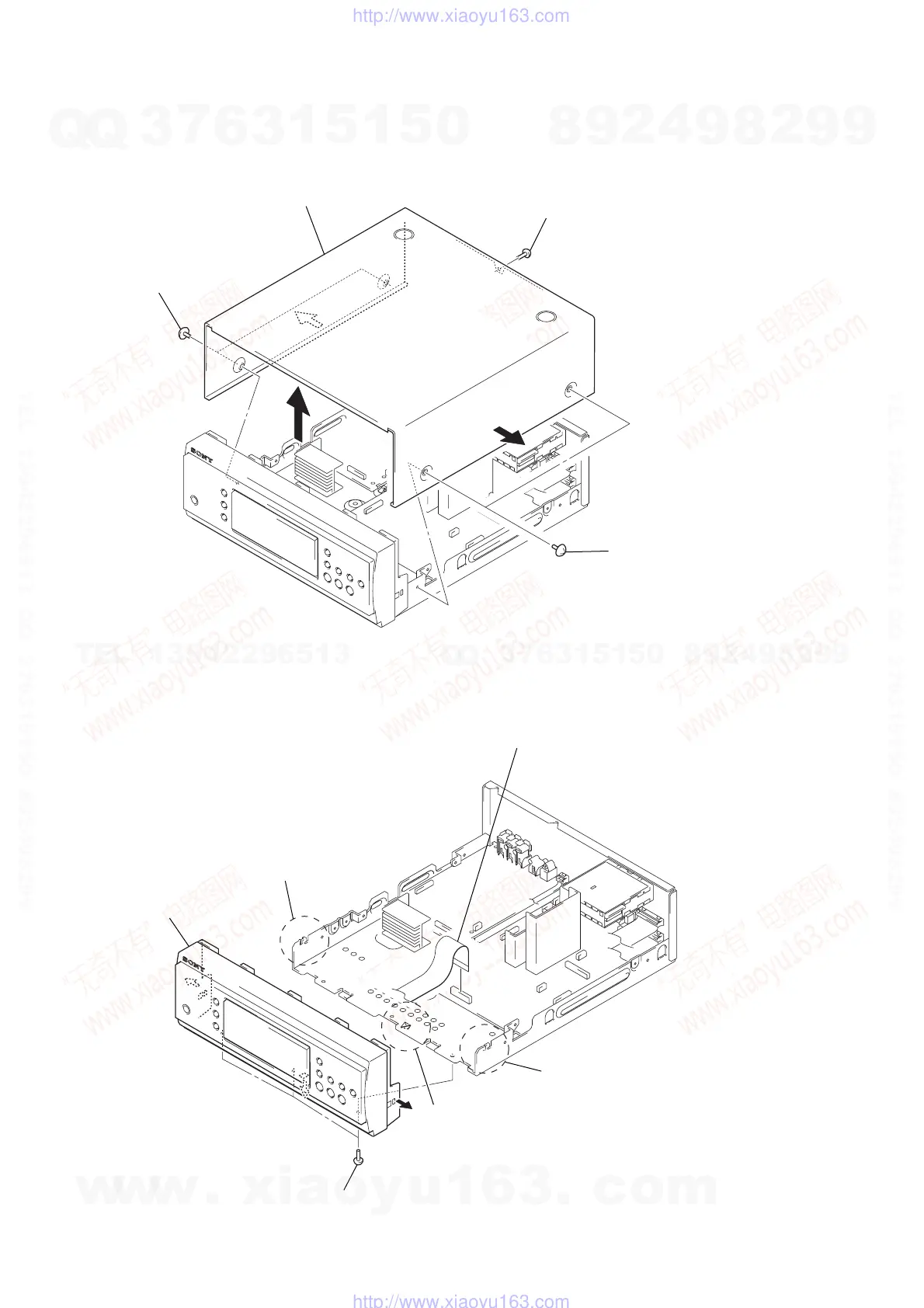

3-3. FRONT PANEL SECTION
2 three screws
(BVTP3
× 8)
3 claw
3 claw
1 wire (flat type) (19 core)
(CN502)
3 claw
4 front panel section
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
2 two screws
(case 3 TP2)
3 case
1 screw
(+BVTT3
× 6 (S))
2 two screws
(case 3 TP2
)
