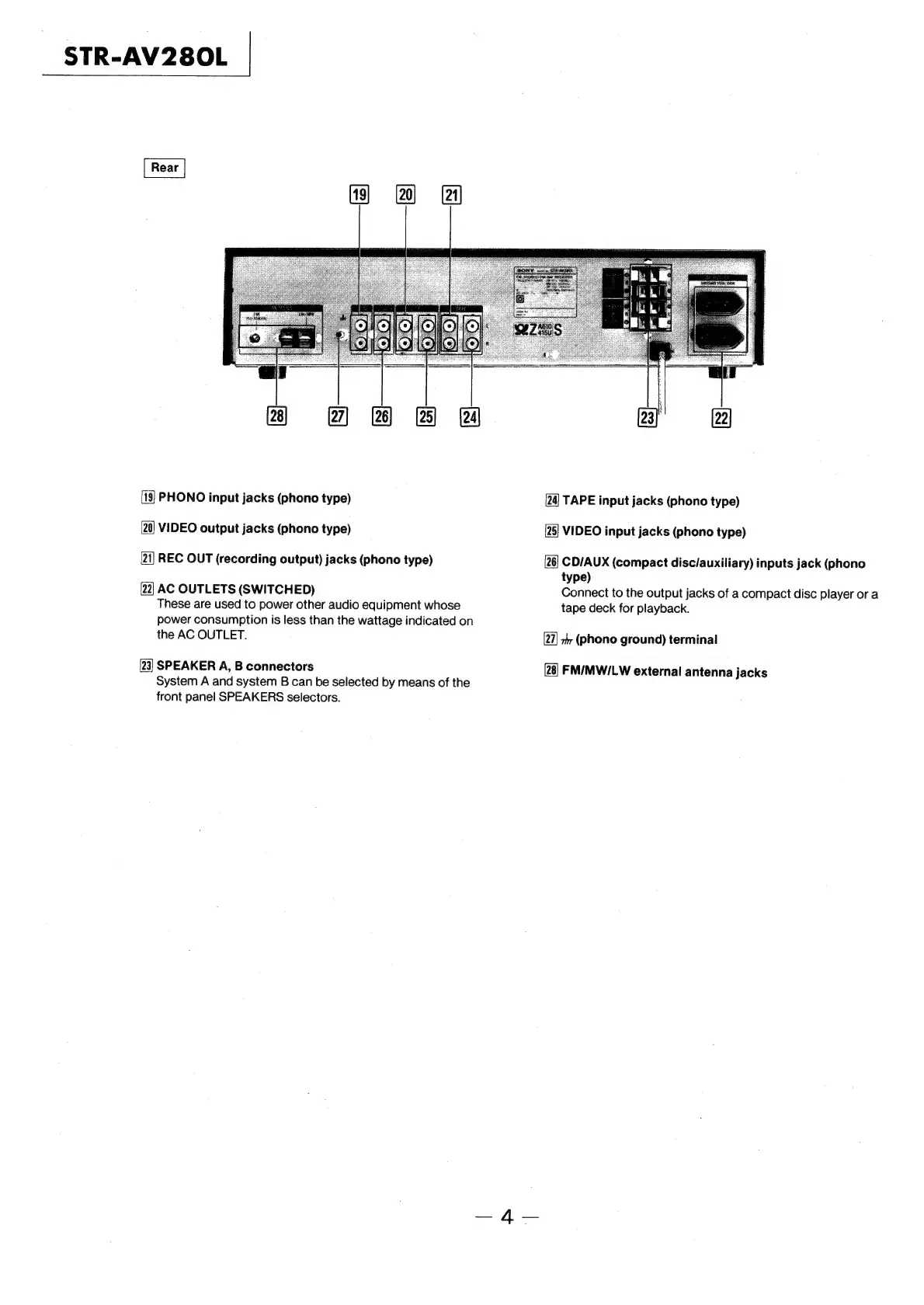

STR-AV280L |
(i3} (20) 2]
[27] [26) (25) (2a)
[19] PHONO input jacks (phono type)
[20] VIDEO output jacks (phono type)
[21] REC OUT (recording output) jacks (phono type)
22] AC OUTLETS (SWITCHED)
These are used to power other audio equipment whose
power consumption is less than the wattage indicated on
the AC OUTLET.
(23) SPEAKER A, B connectors
System A and system B can be selected by means of the
front panel SPEAKERS selectors.
[24] TAPE input jacks (phono type)
[25] VIDEO input jacks (phono type)
[26] CDIAUX (compact disc/auxiliary) inputs jack (phono
type)
Connect to the output jacks of a compact disc player or a
tape deck for playback.
ahr (phono ground) terminal
FM/MWILW
external
antenna
jacks
