Sony STR-AV280L - Section 2 Disassembly

SECTION 2
DISASSEMBLY

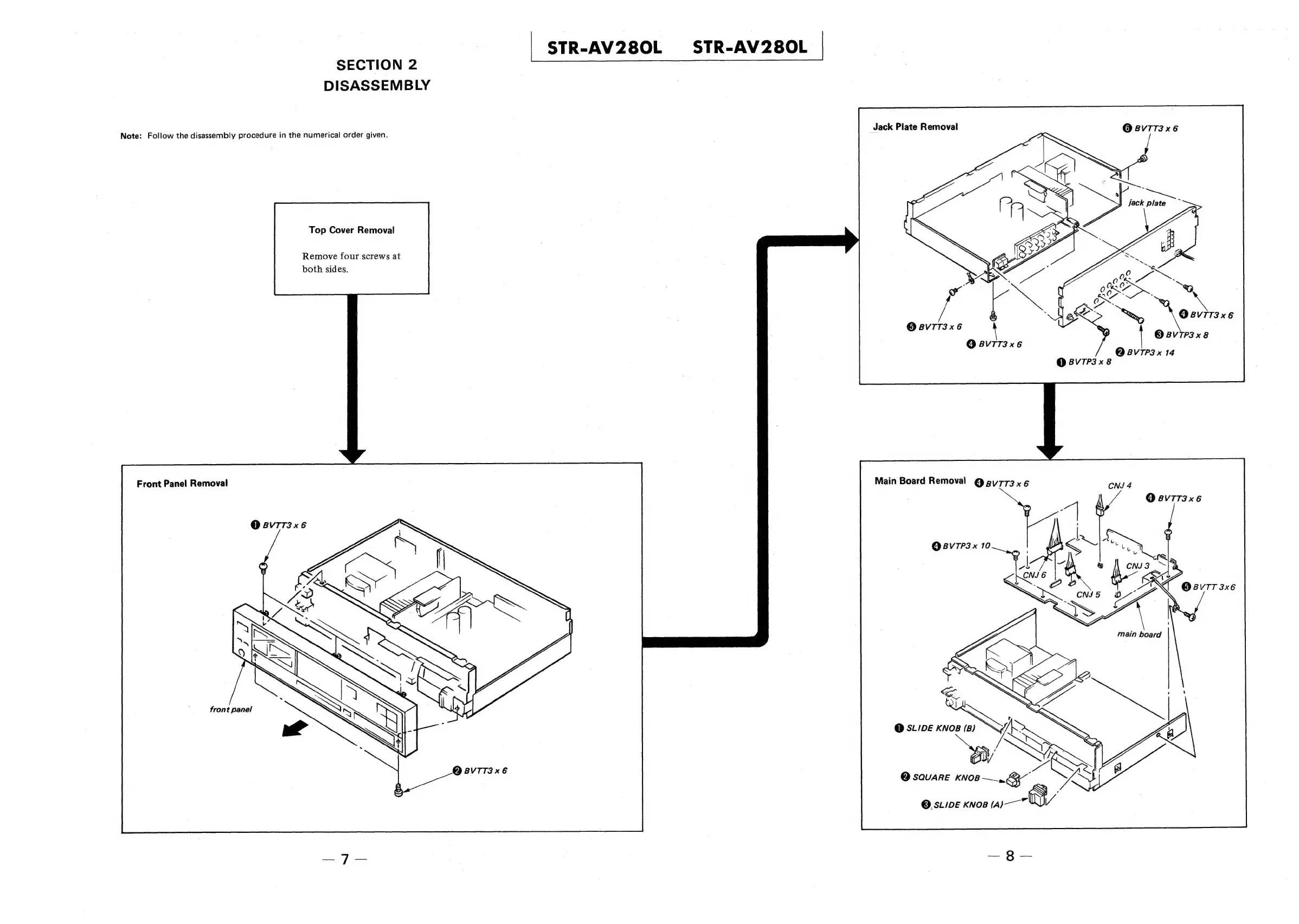

Note: Follow the disassembly procedure in the numerical order given.
Top Cover Removal
Remove four screws at
both sides.
Front Panel Removal
O BvTT3 x6
iy
| STR-AV280L STR-AV280OL |
_Jack Plate Removal @ BVTT3 x6
@ BVTT3 x6
OBvrP3 x 8
O BVTT3 x6
@OBVTP3 x 14
@ BVTP3 x 8
Main Board Removal @ gy773x6
O BVTT3x6
OBVTP3 x 10
OBVTT 3x6
@ SQUARE KNOB eS
@ SLIDE KNOB (A) tS
