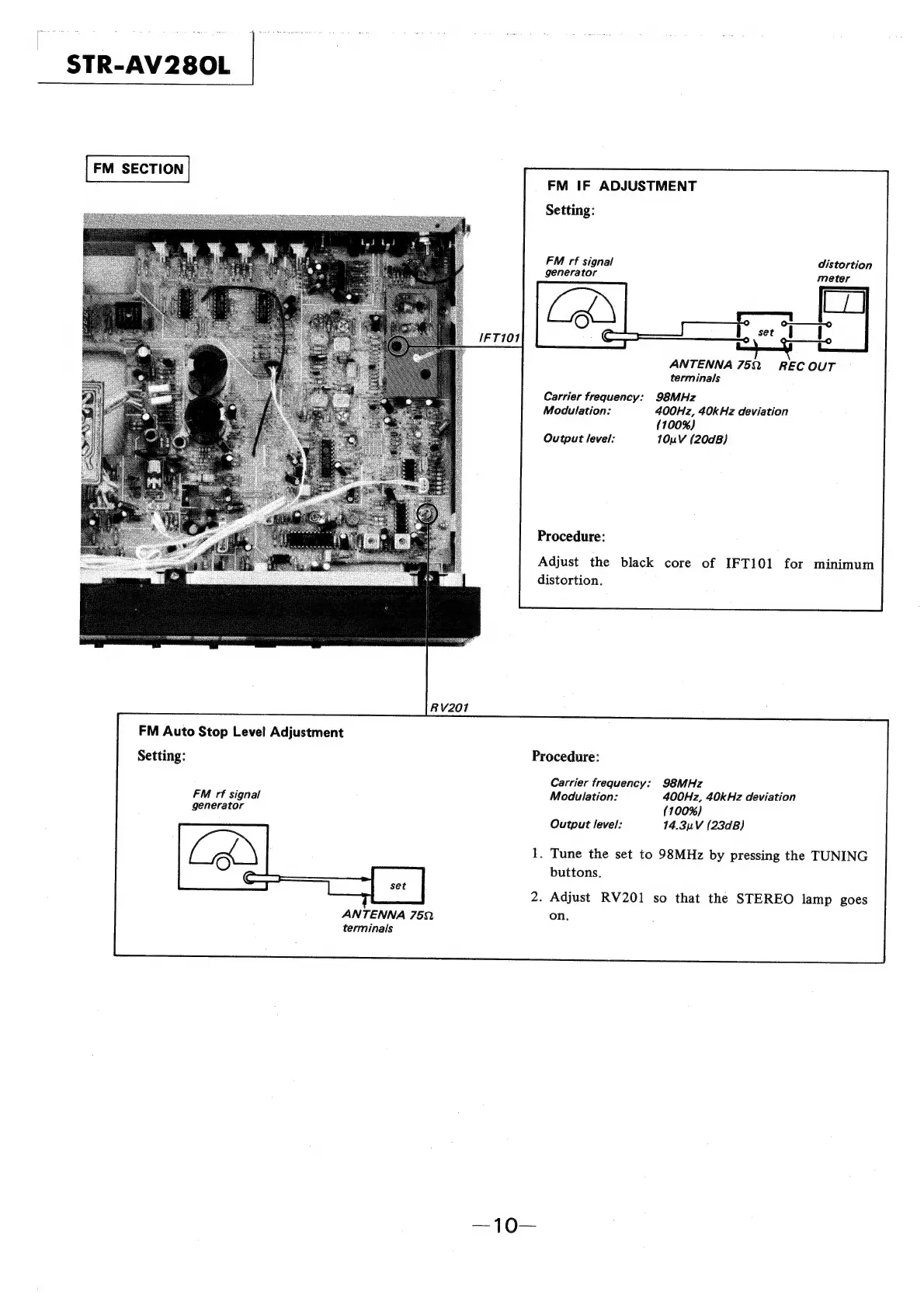

STR-AV280L
FM
SECTION
FM
Auto
Stop
Level
Adjustment
Setting:
FM
rf
signal
generator
ANTENNA
752
terminals
FM
IF
ADJUSTMENT
Setting:
FM
rf
signal
distortion
generator
meter
/FT101
ANTENNA
782.
REC
OUT
terminals
Carrier
frequency:
98MHz
Modulation:
400Hz,
40kHz
deviation
(100%)
Output
level:
10uV
(20dB)
Procedure:
Adjust
the
black
core
of
IFT101
for
minimum
distortion.
Procedure:
Carrier
frequency:
98MHz
Modulation:
400Hz,
40kHz
deviation
(100%)
Output
level:
14.3uV
(23dB)
1.
Tune
the
set
to
98MHz
by
pressing
the
TUNING
buttons.
2.
Adjust
RV201
so
that
the
STEREO
lamp
goes
on.
