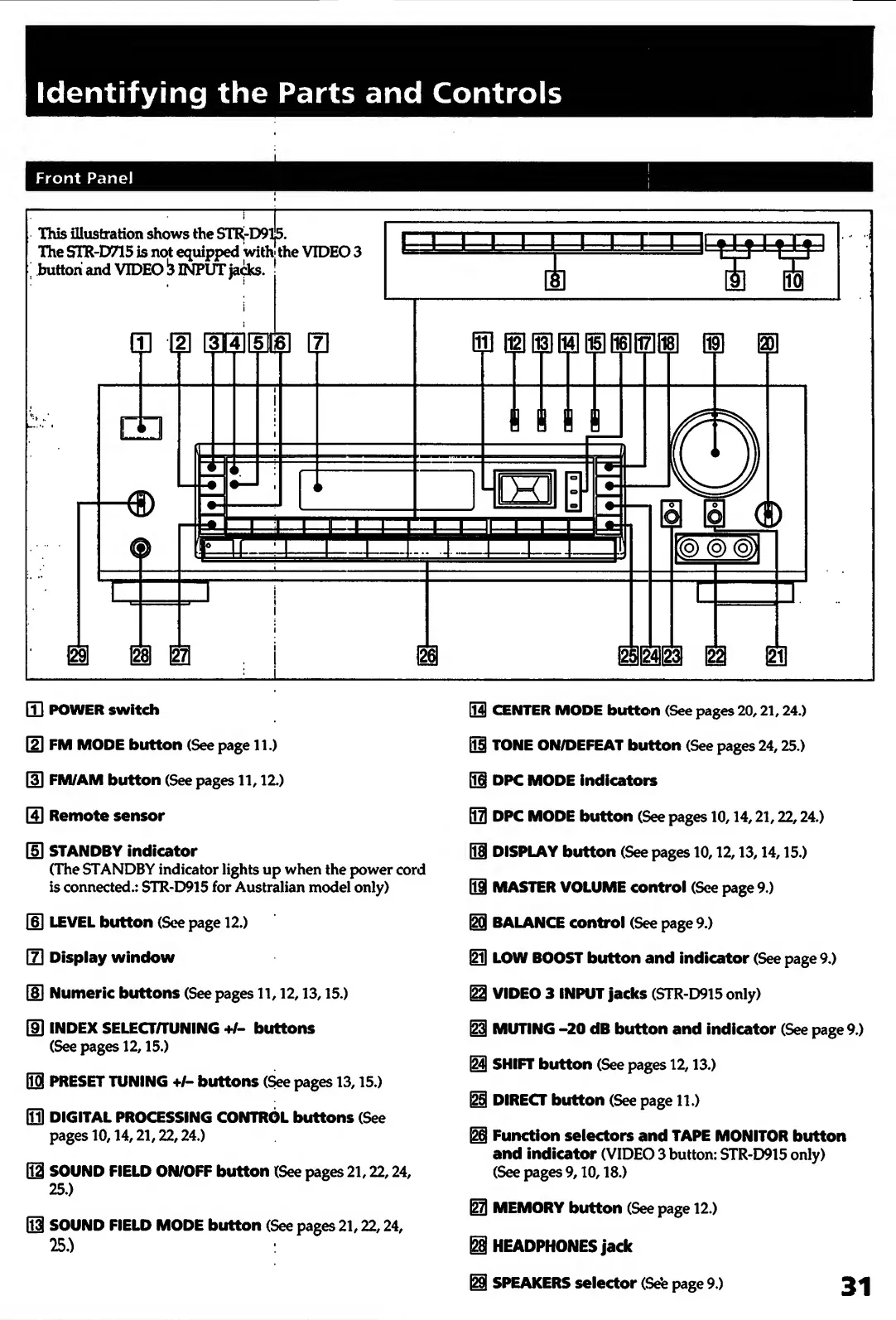

[H POWER switch
[D FM MODE button (See page 11.)
[3] FM/AM button (See pages 11,12.)
Si CENTER MODE button (See pages 20,21,24.)
Si TONE ON/DEFEAT button (See pages 24,25.)
S§ DPC MODE indicators
[D Remote sensor
\5\ STANDBY indicator
(The STANDBY indicator lights up when the power cord
is connected.: STR-D915 for Australian model only)
d] LEVEL button (See page 12.)
|y| Display window
d] Numeric buttons (See pages 11,12,13,15.)
d] INDEX SELECrrrUNING */- buttons
(See pages 12 , 1 5 .)
Si PRESET TUNING +1- buttons (See pages 13,15.)
Si DIGITAL PROCESSING CONTROL buttons (See
pages 10,14,21,22,24.)
m SOUND FIELD ON/OFF button (See pages 21,22,24,
25.)
m SOUND FIELD MODE button (See pages 21,22,24,
25 .)
gi DPC MODE button (See pages 10,14,21,22,24.)
M DISPLAY button (See pages 10,12,13,14,15.)
M MASTER VOLUME control (See page 9.)
M BALANCE control (See page 9.)
li LOW BOOST button and indicator (See page 9.)
M VIDEO 3 INPUT jacks (STR-D915 only)
M MUTING -20 dB button and indicator (See page 9.)
SHIFT button (See pages 12,13.)
DIRECT button (See page 11.)
^ Function selectors and TAPE MONITOR button
and indicator (VIDEO 3 button: STR-D915 only)
(See pages 9,10,18.)
M MEMORY button (See page 12.)
M HEADPHONES jack
M SPEAKERS selector (Seb page 9.)
