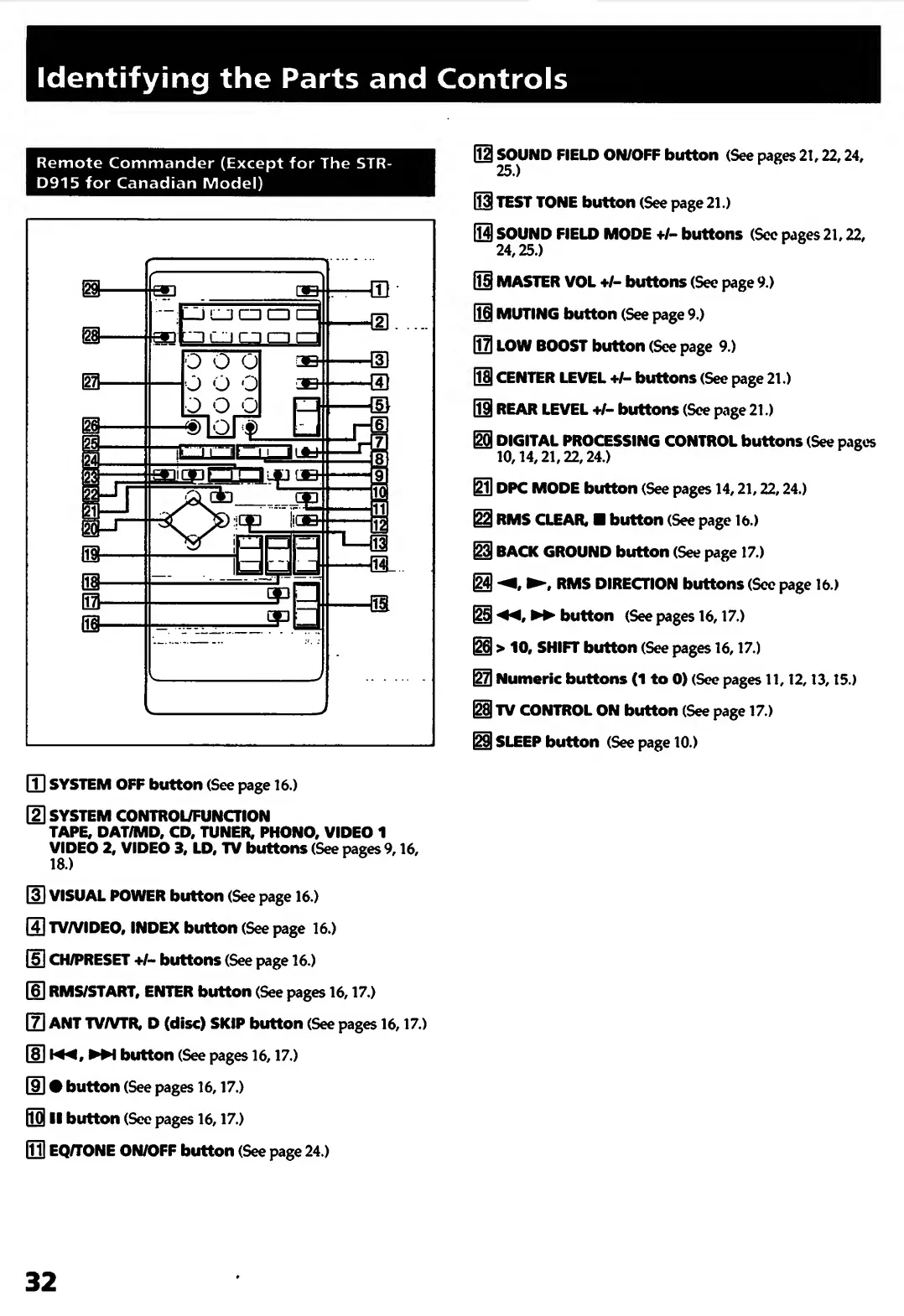

Identifying the Parts and Controls
Remote Commander (Except for The STR-
D915 for Canadian Model)
I SOUND FIELD ON/OFF button (See pages 21,22,24,
25.)
m TEST TONE button (See page 21.)
m SOUND FIELD MODE W- buttons (See pages 21,22,
24,25.)
m MASTER VOL *1- buttons (See page 9.)
m MUTING button (See page 9.)
LOW BOOST button (See page 9.)
QS CENTER LEVEL *h buttons (See page 21.)
03 REAR LEVEL 4/- buttons (See page 21.)
^ DIGITAL PROCESSING CONTROL buttons (See pages
10,14,21,22,24.)
M DPC MODE button (See pages 14,21,22,24.)
^ RMS CLEAR, ■ button (See page 16.)
^ BACK GROUND button (See page 17.)
^ ► . RMS DIRECTION buttons (See page 16.)
Bsl b utton (See pages 16,17.)
^ > 10, SHIFT button (See pages 16,17.)
^ Numoric buttons (1 to 0) (Sec pages 11,12,13,15.)
M TV CONTROL ON button (See page 17.)
^ SLEEP button (See page 10.)
[H SYSTEM OFF button (See page 16.)
[D SYSTEM CONTROL/FUNCTION
TAPE, DAT/MD, CD, TUNER, PHONO, VIDEO 1
VIDEO 2, VIDEO 3, LD, TV buttons (See pages 9,16,
18.)
[D VISUAL POWER button (See page 16.)
(H TV/VIDEO, INDEX button (See page 16.)
IS CH/PRESET 4/> buttons (See page 16.)
m RMS/START, ENTER button (See pages 16,17.)
IZ] ANT TVATTR, D (disc) SKIP button (See pages 16,17.)
d] Md, button (See pages 16,17.)
IS ^ button (See pages 16,17.)
OS II button (See pages 16,17.)
O EQ/TONE ON/OFF button (See page 24.)
32
