Sony STR-DA1ES - Chassis Section-4

61
STR-DA1ES/DB780
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 A-4729-168-A DIGITAL BOARD, COMPLETE (DA1ES)
301 A-4729-169-A DIGITAL BOARD, COMPLETE
(DB780: SP, MY, TW, KR, CH)
301 A-4729-170-A DIGITAL BOARD, COMPLETE (DB780: AEP, UK)
302 3-704-515-21 SCREW (BV/RING) (EXCEPT DB780: AEP, UK)
302 4-974-510-11 SCREW (+BV 3X8 CU) (DB780: AEP, UK)
303 3-704-515-11 SCREW (BV/RING) (EXCEPT DB780: UK)
303 3-704-515-51 SCREW (BV/RING) (DB780: UK)
304 4-947-010-01 SCREW, FEEDER FIXED
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
(EXCEPT DB780: AEP, UK)
#4 4-974-510-11 SCREW (+BV 3X8 CU) (DB780: AEP, UK)
#4
#1
#4
#4
#1
#1
#1
#4
#4
#4
not
supplied
bias board section
not supplied
not supplied
not supplied
chassis section-5
not supplied
302
301
302
302
302
302
302
304
302
303

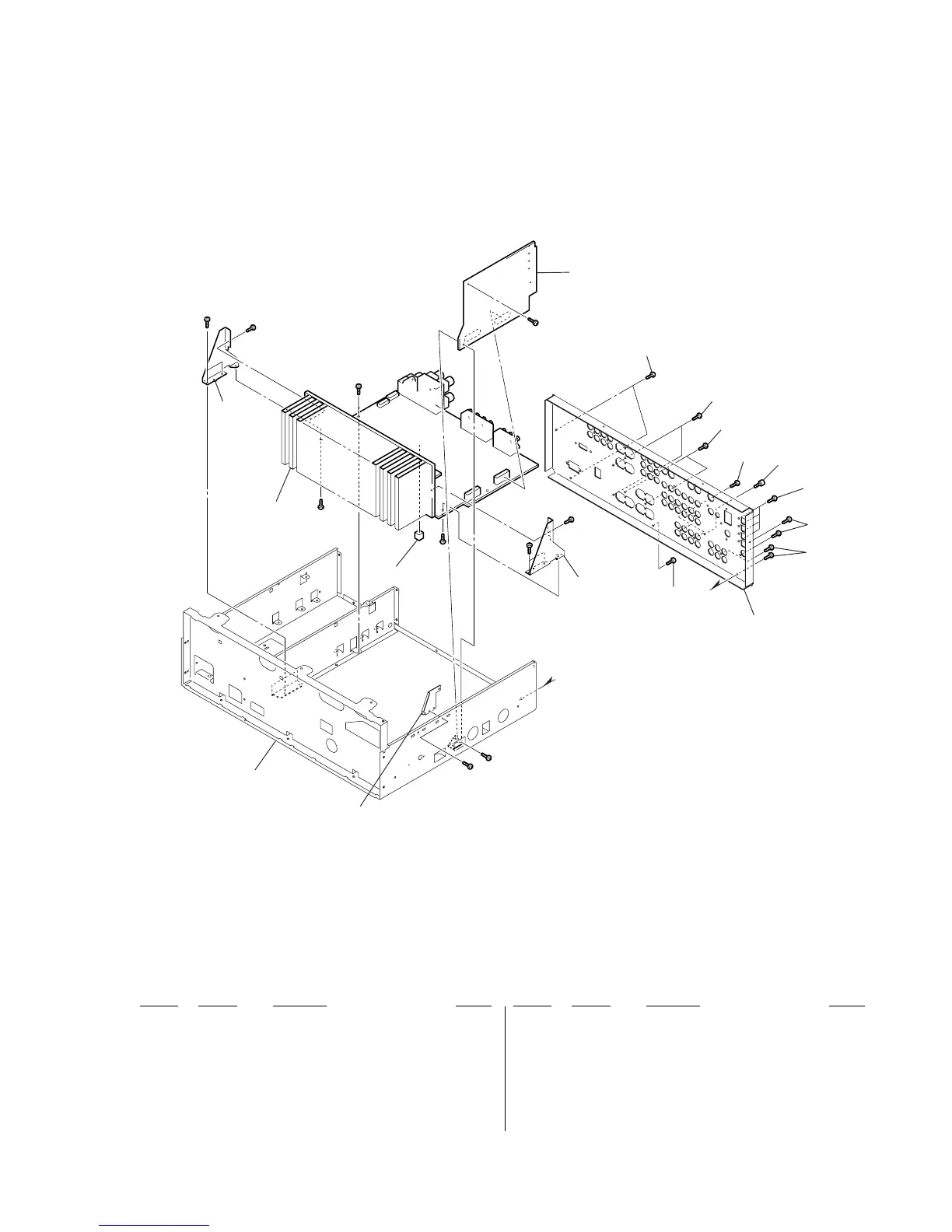

6-7. CHASSIS SECTION-4
