Hooking Up the Components
5.1 INPUT
VIDEO OUT
WOOFER
SPEAKERS
REAR/CENTER
SPEAKERS
FRONT
PHONES
SPEAKERS
A
OFF
A
+
B
B
0
1
0
SHIFT FM/AM
– +
PRESET TUNING
MEMORY FM MODE TUNING
LRVIDEO AUDIOS-VIDEO
–+
DIMMER SLEEP INPUT
MODE
VIDEO 3
INPUT
EQUALIZER SOUND FIELD
GENRE MODE
CURSOR
MODE
SET UP
V
bB
v
PHONO
SOUND FIELD
ON/OFF
TUNERCDMD/DATTAPETV/DBSDVD/LDVIDEO 3VIDEO 2
BASS BOOST
VIDEO 1
•
•
•
BALANCE
LR
SUR
INDEX
EQ
DISPLAY
MULTI CHANNEL DECODING
MODE FUNCTION MUTING
MASTER
VOLUME
BASS
BOOST
REAR
CENTER
WOOFER
5.1 OUTPUT
FRONT
+
–
RLR LRL
SPEAKERS
IMPEDANCE USE 4–16Ω
CENTERREARFRONTBA
S-VIDEO
IN
VIDEO
S-VIDEO
OUT
VIDEO
S-VIDEO
OUT
VIDEO
S-VIDEO
IN
VIDEO
S-VIDEO
OUT
VIDEO
DVD IN OPT
DVD IN
COAXIAL
S-VIDEO
IN
VIDEO
IN
L
R
REC OUT
SIGNAL GND
AM
AUDIO
IN
L
R
L
R
AUDIO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
CTRL A1
FRONT REAR WOOFER CENTER
y
y
ANTENNA
TAPE
VIDEO 2
TV/LD DVD
S-LINK
S-VIDEO
IN
VIDEO
AUDIO
IN
DIGITAL
VIDEO 1
MONITOR
PRE OUT
AC OUTLET
IN
PHONO
IN
CD
IN
REC OUT
MD/DAT
FM
75Ω
COAXIAL
TV/LD IN OPT
CD IN OPT
MD/DAT OUT OPT
MD/DAT IN OPT
4 Ω 8 Ω
IMPEDANCE
SELECTOR
L
R
FRONT REAR CENTER
5.1 INPUT
WOOFER

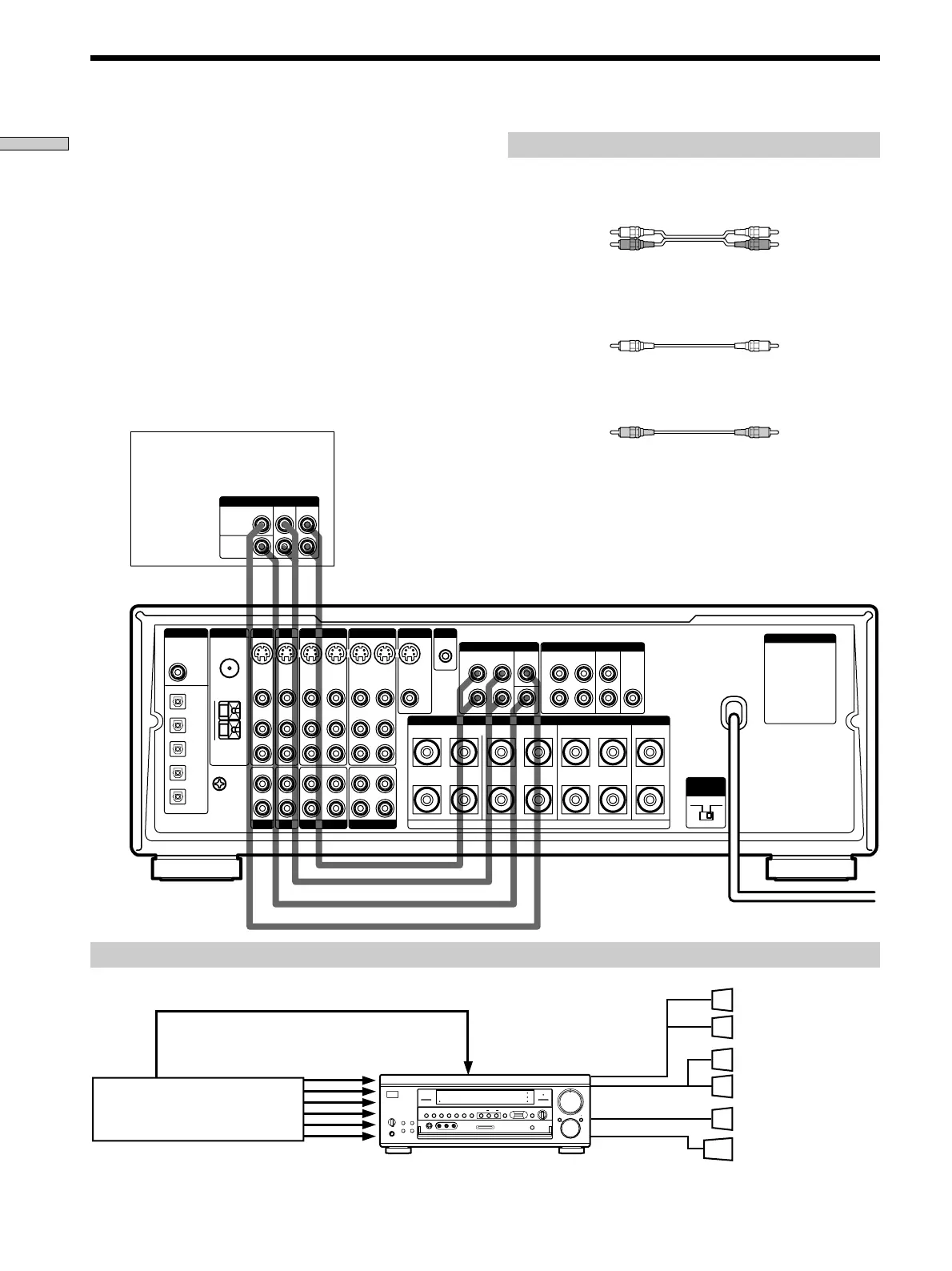

5.1 Input Hookups
Required cords
Audio cords (not supplied)
Two for the 5.1 INPUT FRONT and REAR jacks
White (L) White (L)
Red (R) Red (R)
Monaural audio cords (not supplied)
Two for the 5.1 INPUT CENTER and WOOFER jacks
Black Black
Video cord (not supplied)
One for the DVD VIDEO IN jacks (etc.)
Yellow Yellow
Note
When using the connections described below, adjust the level of
your surround speakers and subwoofer from the DVD player or
multi-channel decoder.
Although this receiver incorporates a multi channel
decoder, it is also equipped with 5.1 INPUT jacks. These
connections allow you to enjoy multi-channel software
encoded in formats other than Dolby Digital (AC-3) and
DTS. If your DVD player is equipped with 5.1 OUTPUT
jacks, you can connect them directly to this unit to enjoy
the sound of the DVD player’s multi channel decoder.
Alternatively, the 5.1 INPUT jacks can be used to connect
an external multi channel decoder.
To fully enjoy multi channel surround sound, you will
need five speakers (two front speakers, two rear speakers,
and a center speaker) and a subwoofer. Refer to the
instruction manual supplied with your DVD player, multi
channel decoder, etc., for details on the 5.1-channel input
hookups.
Example of a DVD player hookup using the 5.1 INPUT jacks
Note
See page 12 for details on speaker system hookup.
DVD player
Front Speaker (L)
Front Speaker (R)
Rear Speaker (L)
Rear Speaker (R)
Center Speaker
Active Woofer
DVD player,
Multi-channel decoder, etc.
DVD
IN VIDEO etc.
To Next Page
