Sony STR-DA5600ES - Connection Diagram Example

EQUINOX INTEGRATION GUIDE
©Vantage Equinox
Sony: STR-DA5600ES
page 7 of 9

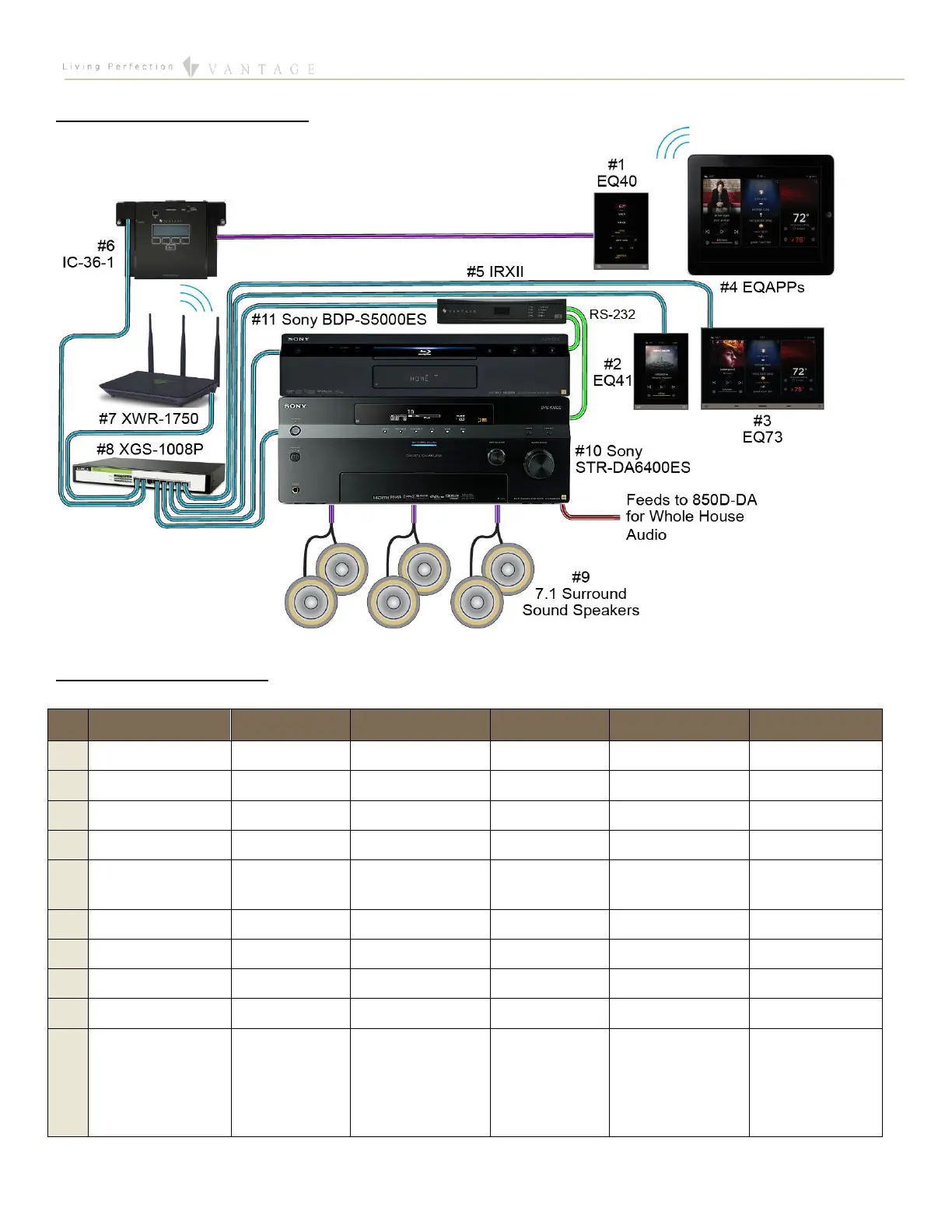

IX. Connection Diagram Example
X. Bill of Materials Example
#
Device
Manufacturer
Part Number
Protocol
Connector Type
Notes
1
EQ40
Vantage
EQ40TB-TI
Station Bus (16/2)
2
EQ41
Vantage
EQ41TB-TI
Ethernet w/PoE
Cat 5 (RJ45)
3
EQ73
Vantage
EQ73TB-TI
Ethernet w/PoE
Cat 5 (RJ45)
4
EQ Mobile Apps
Vantage
EQ-APP-5/10/X
WiFi
N/A
5
IR Interface
Vantage
IRX-II
Ethernet, RS-232,
IR
Cat 5 Ethernet, RS-
232 dB9
6
Infusion Controller
Vantage
IC-36-1
Ethernet
Station bus / Cat 5
7
Wireless Router
Luxul
XWR-1750
Ethernet / WiFi
Cat 5 (RJ45)
8
Gigabit Switch w/PoE
Luxul
XGS-1008P
Ethernet w/PoE
Cat 5 (RJ45)
9
Zone Speakers
Various
Various
N/A
16/4 Speaker Wire
10
Receiver/Pre-amp
Sony
STR-DA6400ES
Ethernet, RS-232,
Dolby TrueHD,
DTS-HD, THX,
WMA, MP3,
Internet Radio
Cat 5 Ethernet, dB9
RS-232, HDMI, RCA
