* You must connect the HDMI OUT or MONITOR
OUT jack to your TV to watch the selected input
image (page 28).

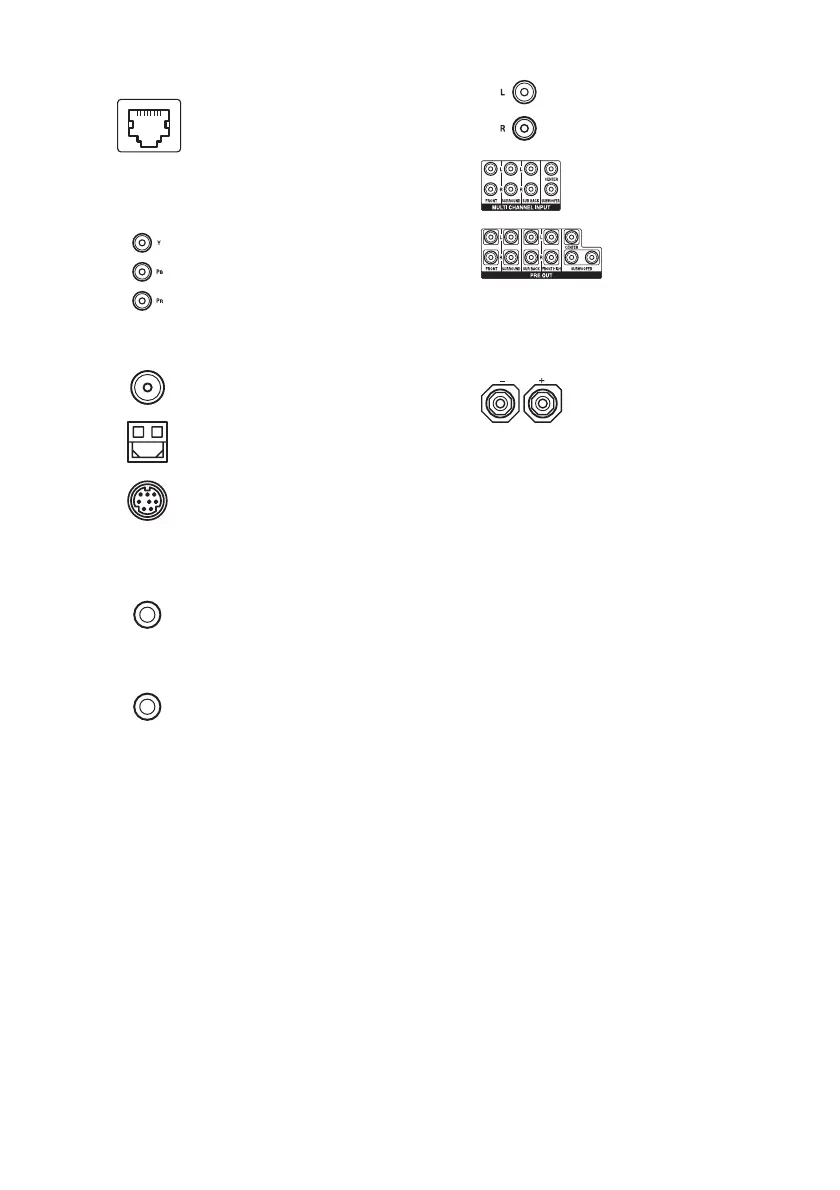

D LAN ports (switching hubs)
(page 46)
E COMPONENT VIDEO INPUT/
OUTPUT section (page 28, 31, 34)
Y, P
B
, P
R
IN/OUT* jacks
F ANTENNA section
FM ANTENNA jack
(page 43)
AM ANTENNA jack
(page 43)
SIRIUS jack (page 65)
G Control jacks for Sony equipment
and other external equipment
IR REMOTE IN/OUT
jacks (page 78)
Connect an IR repeater (not supplied) to
use the Multi-zone function.
TRIGGER OUT jacks
(page 117)
Connect to interlock on/off of the power
supply of other 12V TRIGGER compliant
equipment, or the amplifier/receiver of
zone 2 or zone 3.
H AUDIO INPUT/OUTPUT section
AUDIO IN/OUT jacks
(page 39, 42, 44)
MULTI CHANNEL INPUT
jacks (page 31, 39)
PRE OUT jacks
Connect to an external power amplifier.
I SPEAKERS section (page 26)
