Front Panel Operations (Remote Short-cuts: USA and Canada only)

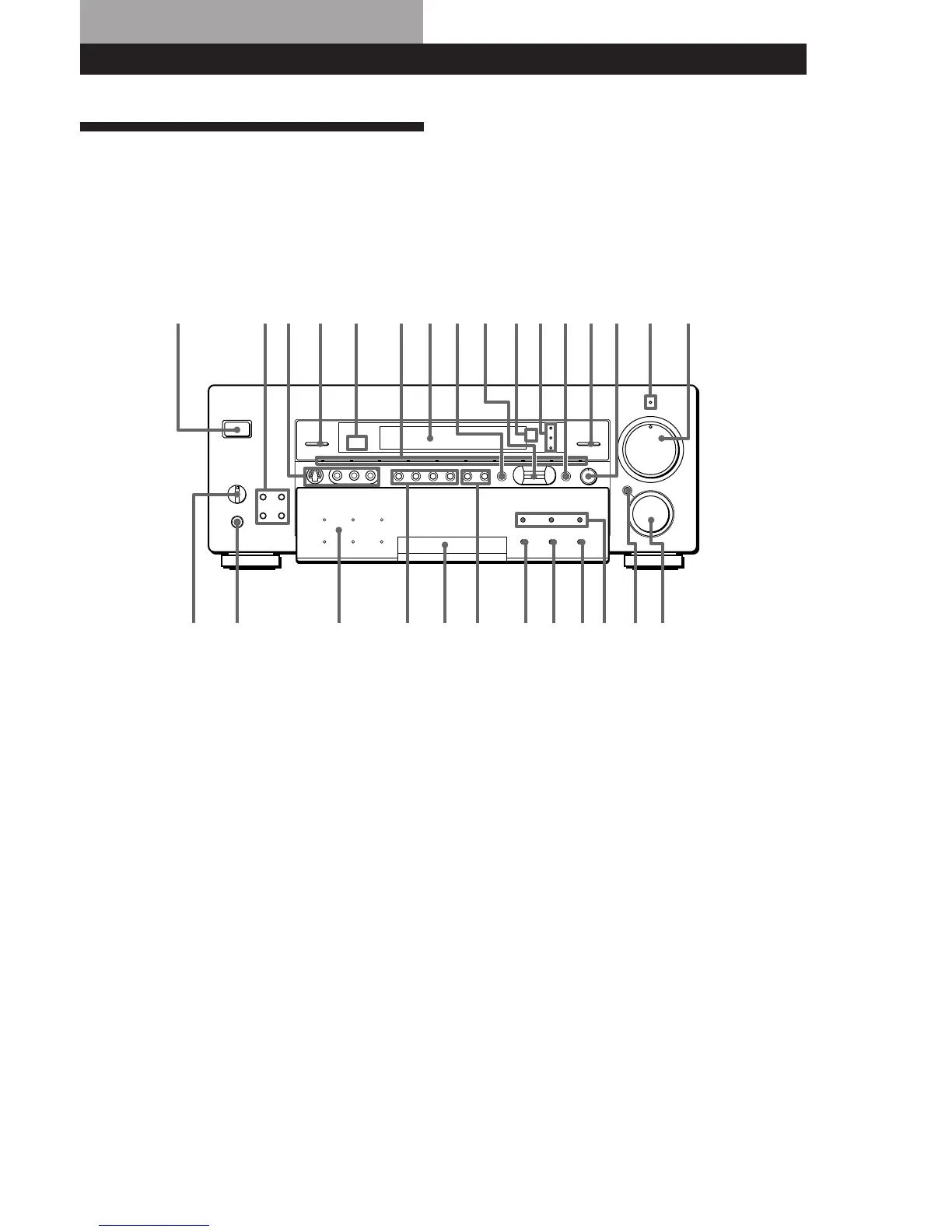

Front Panel Descriptions
You can control the receiver using the front panel
instead of the remote. For details of the operations, see
the pages in parenthesis.
!¶ FUNCTION selector (49)
!• MODE button (49)
!ª SOUND FIELD buttons (52)
SOUND FIELD button
GENRE button
MODE button
@º INPUT MODE button (49)
@¡ BASS BOOST button and indicator (49)
@™ DIRECT PASS button and indicator (49)
@£ EQUALIZER buttons (52)
BAND button
CH (channel) button
@¢ IR emitter (4)
@∞ Tuner operation buttons (50)
TUNING (+/–) buttons
FM MODE button
MEMORY button
@§ Control panel cover
@¶ PHONES jack (49)
@• SPEAKERS selector (10)
1 POWER switch
2 Tuner operation buttons (50)
PRESET TUNING (+/–) buttons
SHIFT button
FM/AM button
3 VIDEO 3 input jacks (12)
4 DISPLAY button (55)
5 LEARNING SENSOR (18)
6 FUNCTION indicators
7 Display
8 DPC MODE button (52, 53, 55)
9 Digital Processing Controls
0 IR receptor (15)
!¡ SUR indicator (53)
EQ indicator (52)
INDEX indicator (55)
!™ SET UP button (54)
!£ PANEL UP/DOWN button (49)
!¢ BALANCE control (49)
!∞ MUTING indicator
!§ MASTER VOLUME control (49)
