7
Getting StartedHooking Up the System
Important
If you connect an outdoor antenna, ground it against
lightning. To prevent a gas explosion, do not connect the
ground wire to a gas pipe.
Notes
• Do not use the y SIGNAL GND for this connection.
• To prevent noise pickup, keep the AM loop antenna away
from the receiver and TV.

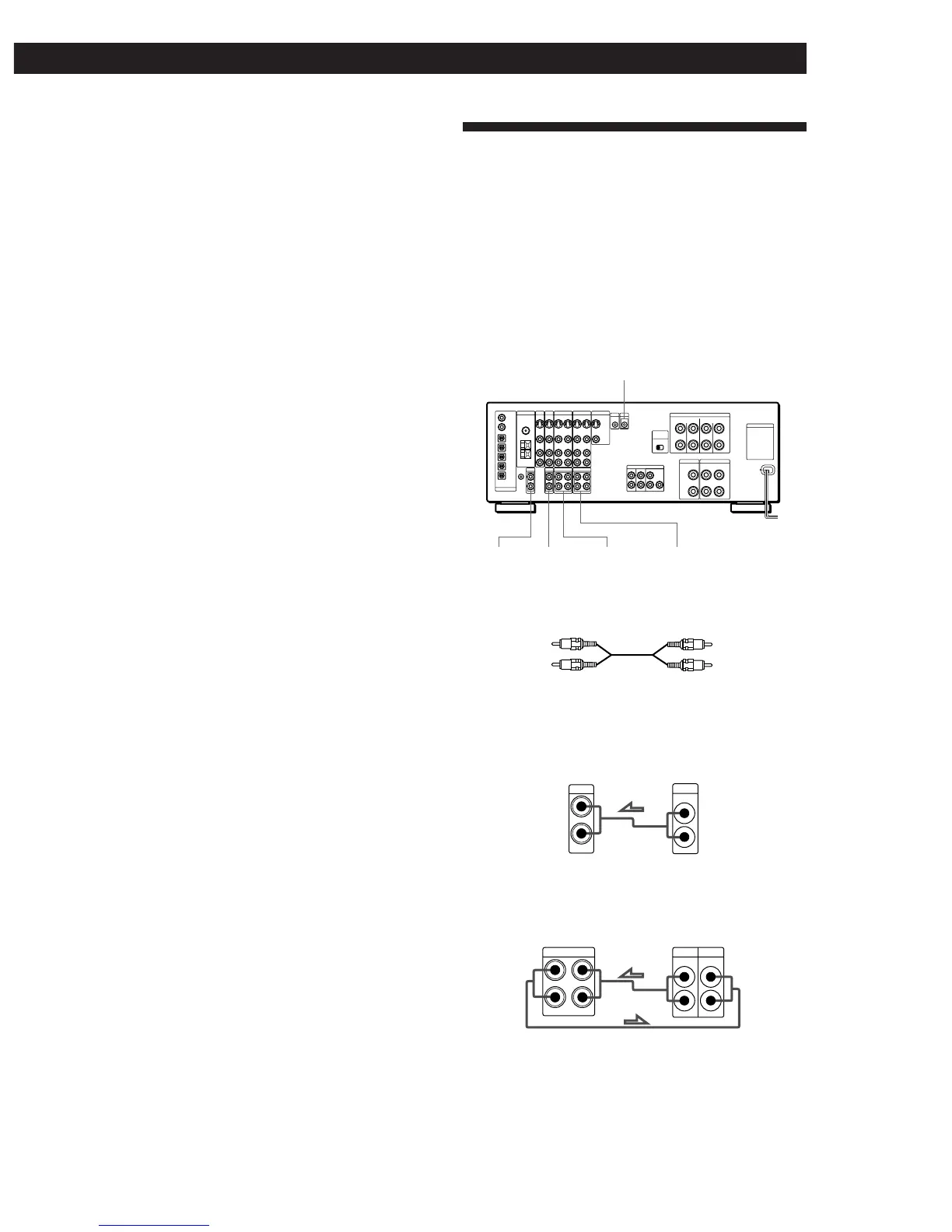

Audio Component Hookups
You can use the receiver as an amplifier by completing
these connections.
If your components are Sony products, connect them to
the jacks as shown in the table on page 19 so that the IR
registration is unnecessary.
For digital connections see “Digital Component Hookups”
(page 12).
What cords will I need?
Audio cord (not supplied)
Ç : signal flow
a CD (to CD player)
b TAPE (to a tape deck)
Receiver
S-LINK/CTRL A1
d PHONO a CD c DAT/MD b TAPE
White (L)
Red (R)
White (L)
Red (R)
CD player
Receiver
Tape deck
OUTPUT
LINE
L
R
IN
CD
L
R
RECOUT IN
TAPE
OUTPUT
LINELINE
L
R
INPUT
(continued)
