STR-DB830/DB930/V929X
— 39 — — 40 —

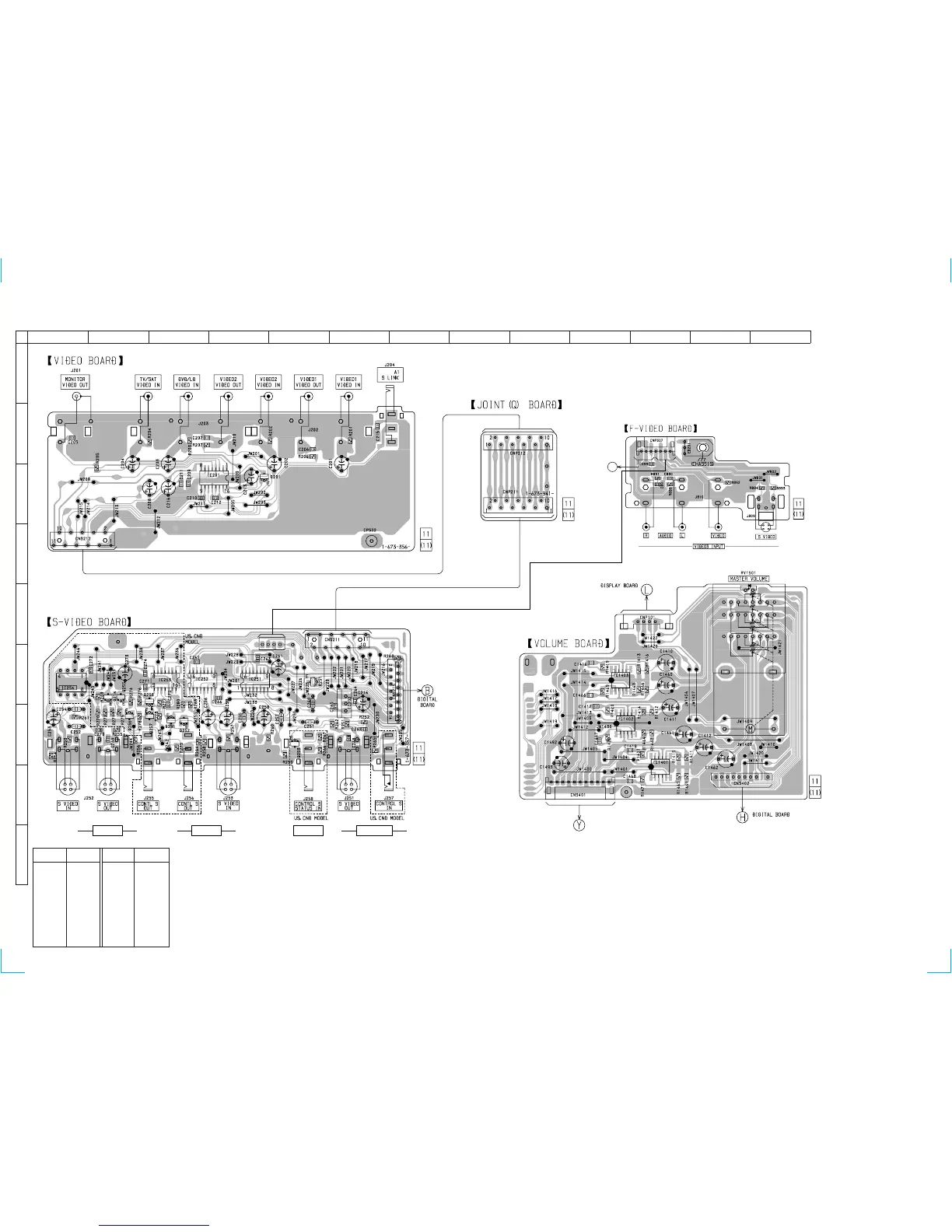

4-17. PRINTED WIRING BOARD VIDEO SECTION • See page 11 for circuit board location.
VIDEO1 DVD/LD TV/SAT MONITOR
(Page 22)
CTRL
(PAGE 21)
(PAGE 24)
(PAGE 21)
MAIN BOARD
1-673-362-
1-673-367-
17
V
MAIN BOARD
(Page 43)
CNS210
4
1
12
A
B
C
D
E
F
G
H
I
345678910111213
16
• Semiconductor Location
Ref. No. Location Ref. No. Location
D251 F-5
IC202 G-6
IC251 F-4
IC252 F-4
IC253 F-3
IC254 F-1
IC1401 H-11
IC1402 G-11
IC1403 F-11
Q251 G-3
Q252 G-3
Q253 G-5
Q254 F-2
Q255 F-2
Q256 G-2
Q257 G-3
Q258 F-2

Sony STR-DB830 - Fm Stereo/fm-am Receiver Specifications

General

Impedance	8 ohms
Speaker load impedance	8 ohms
Digital inputs	2 Optical, 1 Coaxial
Tuning range	FM: 87.5 MHz - 108.0 MHz, AM: 531 kHz - 1, 602 kHz
Frequency response	10Hz to 100kHz
Total harmonic distortion	0.09%
Input sensitivity	150 mV
Dimensions	430 x 157.5 x 401mm
Damping factor	40
Video Connections	composite, S-Video
Power output	100 watts per channel (8 ohms, 20 Hz - 20 kHz, THD 0.09%)
