Sony STR-DB830 - Fm Stereo/fm-am Receiver User Manual

Name: Sony STR-DB830 - Fm Stereo/fm-am Receiver
Brand: Sony
Rating: 4 (1 reviews)

64 pages

To Next Page

To Previous Page

STR-DB830/DB930/V929X

—47 — — 48 —

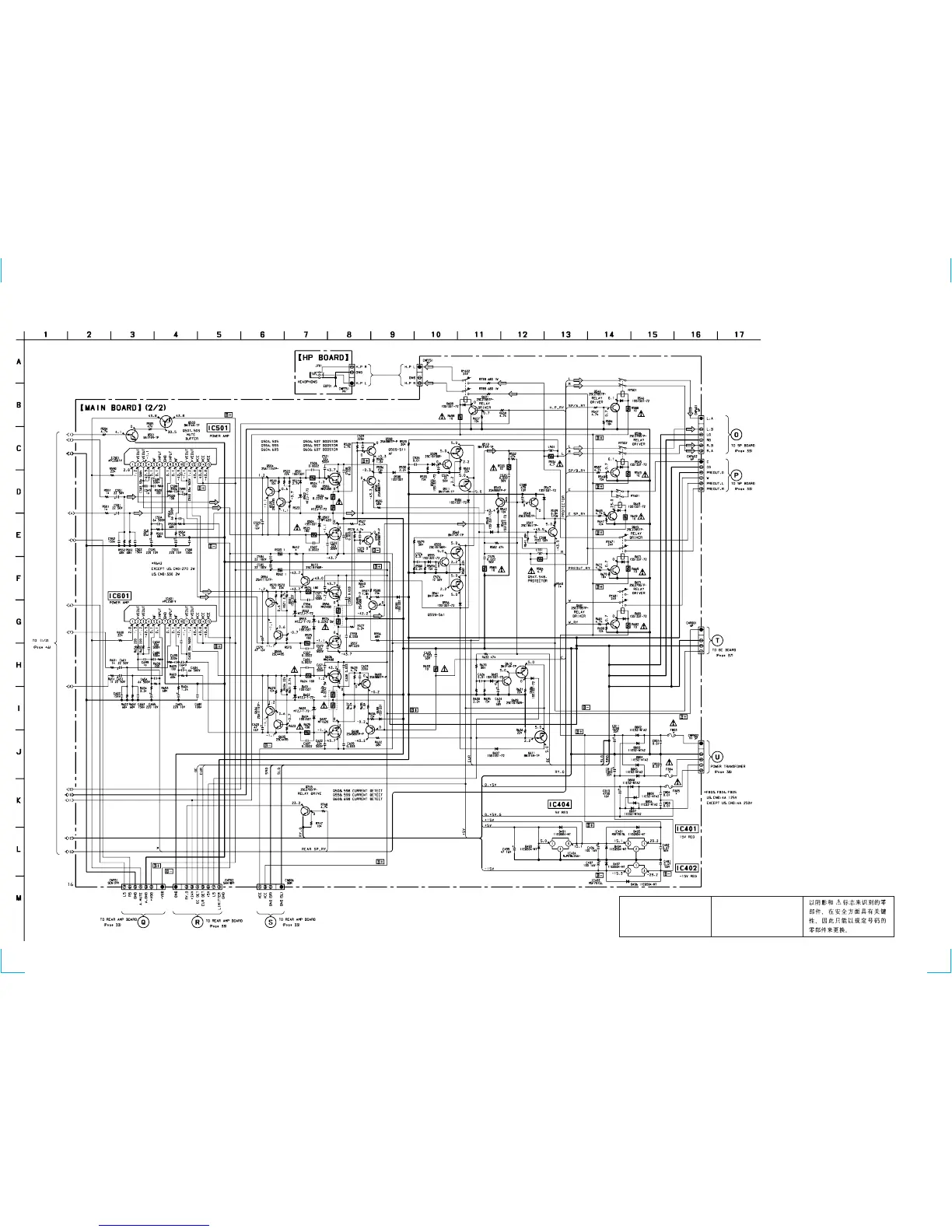

4-21. SCHEMATIC DIAGRAM MAIN SECTION(2/2) • See page 43 for printed wirig board. • See page 59 for IC Block Diagrams.

510

Q609-611

DETECTOR

549

DETECTOR

510

BIAS

The components identified by

mark ! or dotted line with mark

! are critical for safety.

Replace only with part number

specified.

Les composants identifiés par

une marque ! sont critiques

pour la sécurité.

Ne les remplacer que par une

pièce portant le numéro spécifié.

Questions and Answers:

Need help?

Do you have a question about the Sony STR-DB830 - Fm Stereo/fm-am Receiver and is the answer not in the manual?

General

Impedance	8 ohms
Speaker load impedance	8 ohms
Digital inputs	2 Optical, 1 Coaxial
Tuning range	FM: 87.5 MHz - 108.0 MHz, AM: 531 kHz - 1, 602 kHz
Frequency response	10Hz to 100kHz
Total harmonic distortion	0.09%
Input sensitivity	150 mV
Dimensions	430 x 157.5 x 401mm
Damping factor	40
Video Connections	composite, S-Video
Power output	100 watts per channel (8 ohms, 20 Hz - 20 kHz, THD 0.09%)
