Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

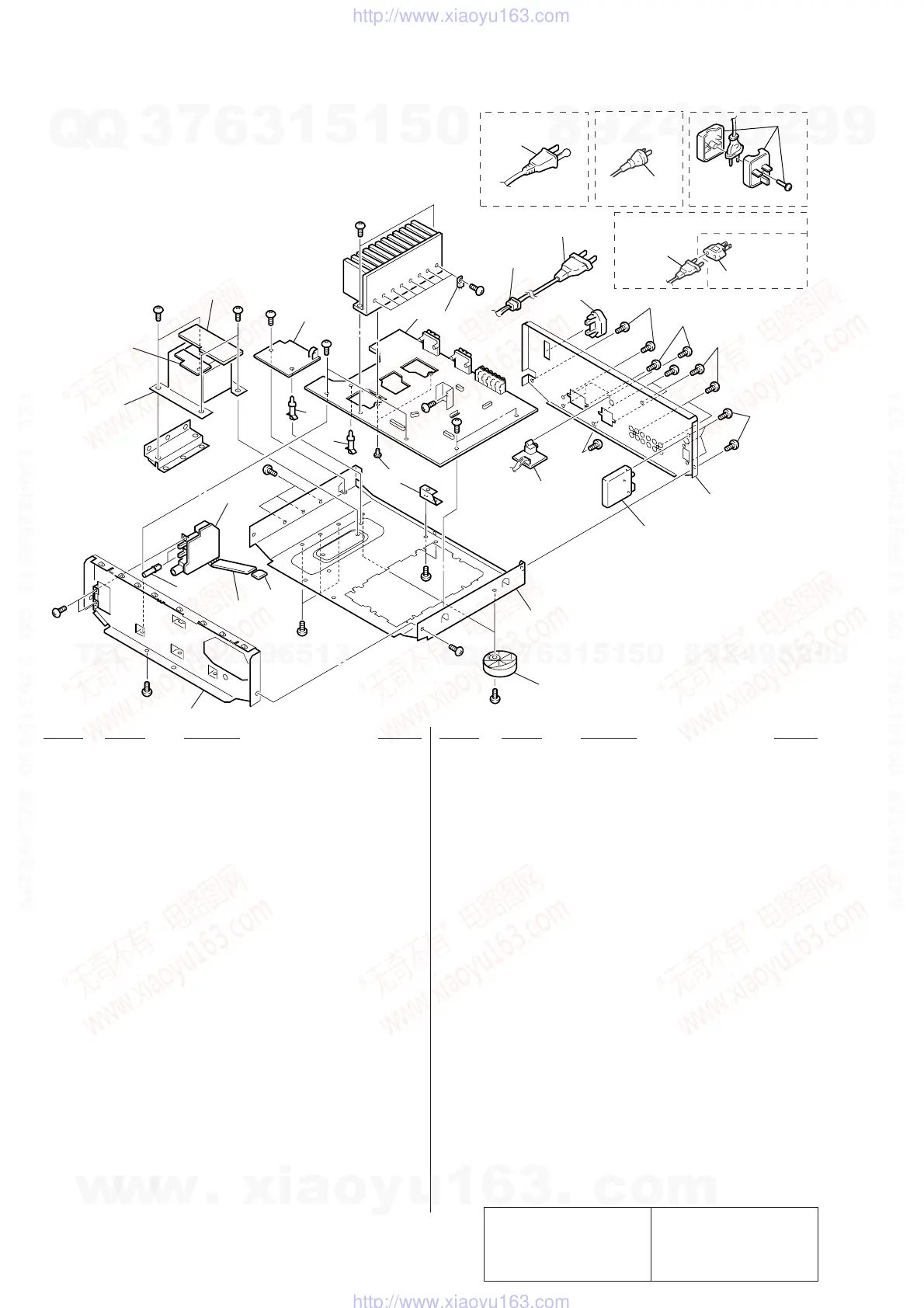

4-2. CHASSIS SECTION
#2
#2
#1
#1
#1
#3
Transistor
CNJ902
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
T901
not supplied
not supplied
not supplied
#1
#3
54
53
51
52
62
63
66
61
65
59
60
57
58
55
56
56
#1
#1
#1
67
UK MODEL
58
67
EXCEPT US, CND, AUS MODEL
E, EA, CH
MODEL
58
AUS MODEL
58
US,CND MODEL
* 51 1-669-270-11 SP-SW BOARD
52 4-951-801-03 BUTTON (S)
* 53 1-669-267-11 PRIMARY BOARD
* 54 1-669-268-11 SECONDARY BOARD
* 55 1-669-266-11 STAND BY BOARD
* 56 4-954-051-51 HOLDER, PC BOARD
* 57 3-703-244-21 BUSHING (2104), CORD
! 58 1-777-071-21 CORD, POWER (EXCEPT US,CND,AUS)
! 58 1-696-847-21 CORD, POWER (AUS)
! 58 1-783-204-11 CORD, POWER (US,CND)
* 59 4-998-208-11 BACK PANEL (E2) (DE225:CND)
* 59 4-998-208-21 BACK PANEL (E2) (DE225:AEP,G,EE,UK)
* 59 4-998-209-01 BACK PANEL (E3) (DE325:US)
* 59 4-998-209-11 BACK PANEL (E3) (DE325:CND)
* 59 4-998-209-41 BACK PANEL (E3) (DE325:CH)
* 59 4-998-209-21 BACK PANEL (E3) (DE325:AUS)
* 59 4-998-209-31 BACK PANEL (E3) (DE325:SP,MY)
* 59 4-998-209-51 BACK PANEL (E3) (DE325:E,EA)
* 59 4-998-209-61 BACK PANEL (E3) (DE325:AEP,G)
* 59 4-998-209-71 BACK PANEL (E3) (DE325:EE)
* 60 A-4407-425-A MAIN BOARD,COMPLETE (DE225:CND)
* 60 A-4407-448-A MAIN BOARD,COMPLETE (DE325:US)
* 60 A-4407-512-A MAIN BOARD,COMPLETE (DE225:AEP,G,EE,UK)
* 60 A-4407-514-A MAIN BOARD,COMPLETE (DE325:CND)
* 60 A-4407-517-A MAIN BOARD,COMPLETE
(DE325:E,EA,CH,AUS,SP,MY)
* 60 A-4407-529-A MAIN BOARD,COMPLETE (DE325:AEP,G,EE)
* 61 1-669-273-11 MIX-OUT BOARD
* 62 1-669-271-11 SP-SW-A BOARD
* 63 1-669-272-11 SP-SW-B BOARD
* 64 1-669-269-11 VOL-SEL BOARD (DE325:E,EA,CH)
65 1-693-407-51 TUNER (US,CND)
65 1-693-408-31 TUNER (EXCEPT US,CND,EE)
65 1-693-411-31 TUNER (EE)
66 X-4947-207-2 FOOT ASSY (F50150S)
(DE225:AEP,G,EE,UK/DE325:EXCEPT US,CND)
66 X-4947-208-2 FOOT ASSY (F50150S)
(DE225:CND/DE325:US,CND)
! 67 1-569-008-21 ADAPTOR, CONVERSION 2P (E,EA,CH)
! 67 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK)
! CNJ902 1-251-416-11 OUTLET, A.C.(AUS)
! CNJ902 1-526-794-11 OUTLET, AC (AEP,G,EE,SP,MY)
! T901 1-431-264-11 TRANSFORMER, POWER (DE325:CND)
! T901 1-431-793-11 TRANSFORMER, POWER (DE325:US)
! T901 1-431-794-11 TRANSFORMER, POWER (DE325:E,EA,CH)
! T901 1-431-795-11 TRANSFORMER, POWER (DE325:SP,MY)
! T901 1-431-796-11 TRANSFORMER, POWER (DE325:AEP,G,EE)
! T901 1-431-798-11 TRANSFORMER, POWER (DE225:AEP,G,EE,UK)
! T901 1-431-799-11 TRANSFORMER, POWER (DE225:CND)
! T901 1-431-818-11 TRANSFORMER, POWER (DE325:AUS)
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
