Getting Started
4
GB

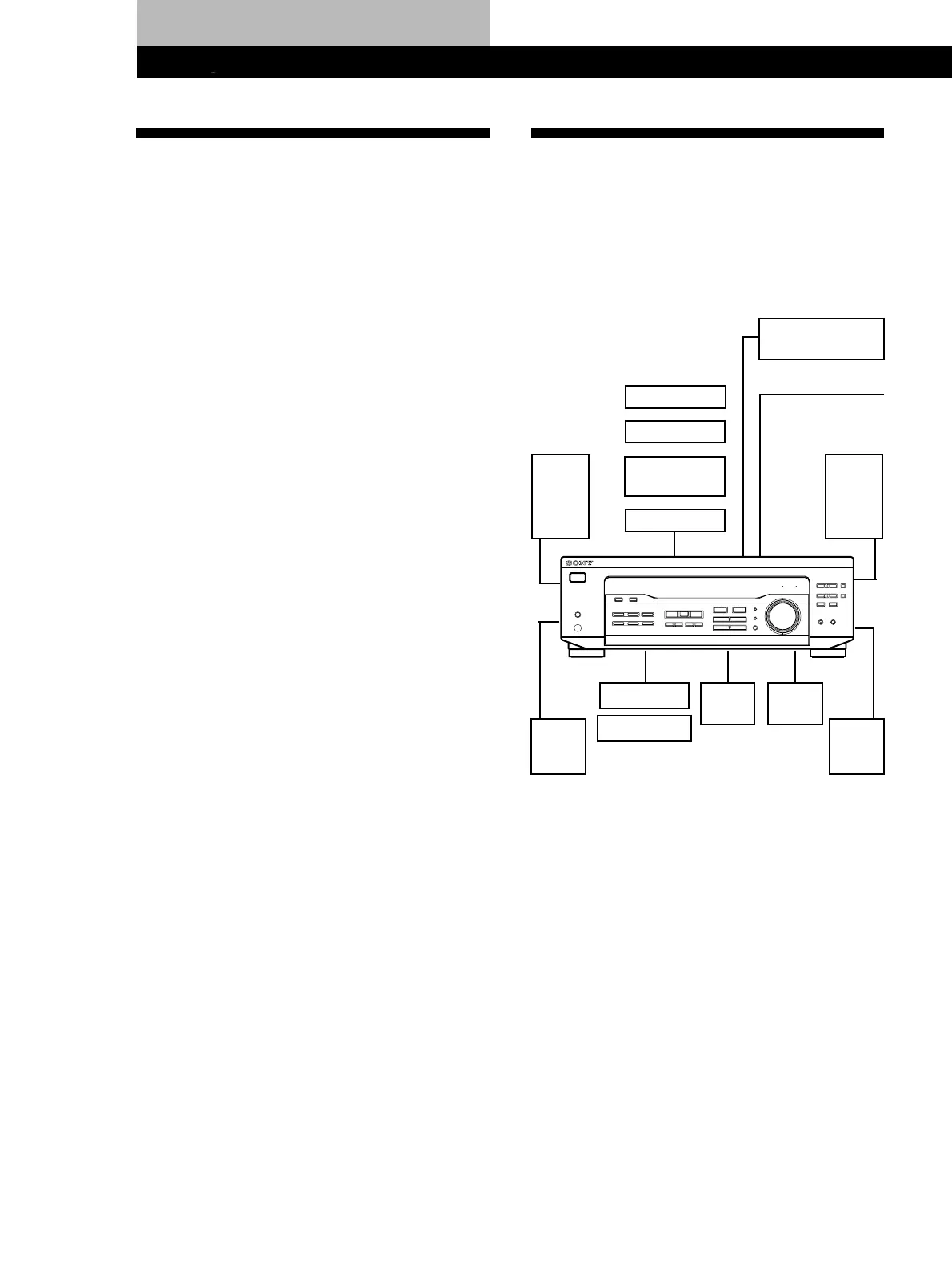

Hookup Overview
The receiver allows you to connect and control the
following audio/video components. Follow the
hookup procedures for the components that you want
to connect to the receiver on the pages specified. To
learn the locations and names of each jack, see “Rear
Panel Descriptions” on page 23.
Before you get started
• Turn off the power to all components before making
any connections.
• Do not connect the AC power cords until all of the
connections are completed.
• Be sure to make connections firmly to avoid hum
and noise.
• When connecting an audio/video cable, be sure to
match the color-coded pins to the appropriate jacks
on the components: Yellow (video) to Yellow; White
(left, audio) to White; and Red (right, audio) to Red.
Front
speaker
(L)
Front
speaker
(R)
Speaker
System
Hookups (7)
CD player
MD/Tape deck
Active
woofer
AM/FM antenna
Antenna Hookups (5)
Video Component
Hookups (6)
Center
speaker
TV monitor
TV tuner
SAT (Satellite
receiver)
VCR
DVD player/AC-3
decoder
Audio Component
Hookups (5)
Rear
speaker
(R)
Rear
speaker
(L)
Getting Started
Unpacking
Check that you received the following items with the
receiver:
• FM wire antenna (1)
• AM loop antenna (1)
• Remote commander (remote) (1)
• Size AA (R6) batteries (2)
• Operating Instructions of the remote RM-PP404
To Next Page
