Sony STR-DE400 - Circuit Board Locations and Waveforms

1313
STR-DE400
STR-DE400

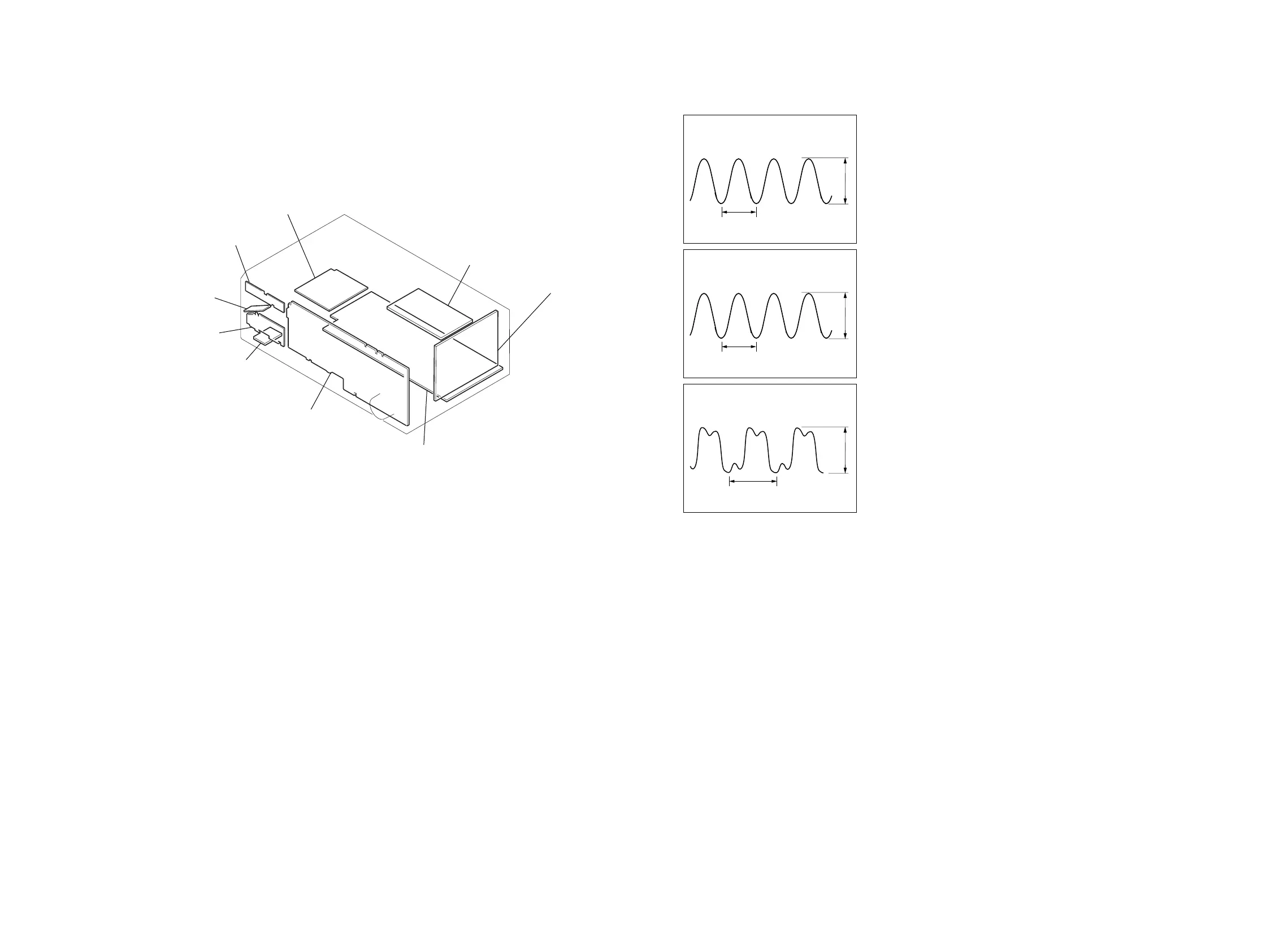

•Waveforms
– DIGITAL Board –
1 IC1501 9 (MCLK1)
1 V/DIV, 40 ns/DIV
72 ns
3.4 Vp-p
2 IC1101 id (X1)
1 V/DIV, 20 ns/DIV
41.6 ns
4.2 Vp-p
3 IC1301 ws (XIN)
1 V/DIV, 40 ns/DIV
81 ns
4.4 Vp-p
• Circuit Boards Location
DIGITAL board
VIDEO board
MAIN board
DISPLAY board
HEADPHONE board
POWER board
ADCC board
TUNING board
STANDBY board
