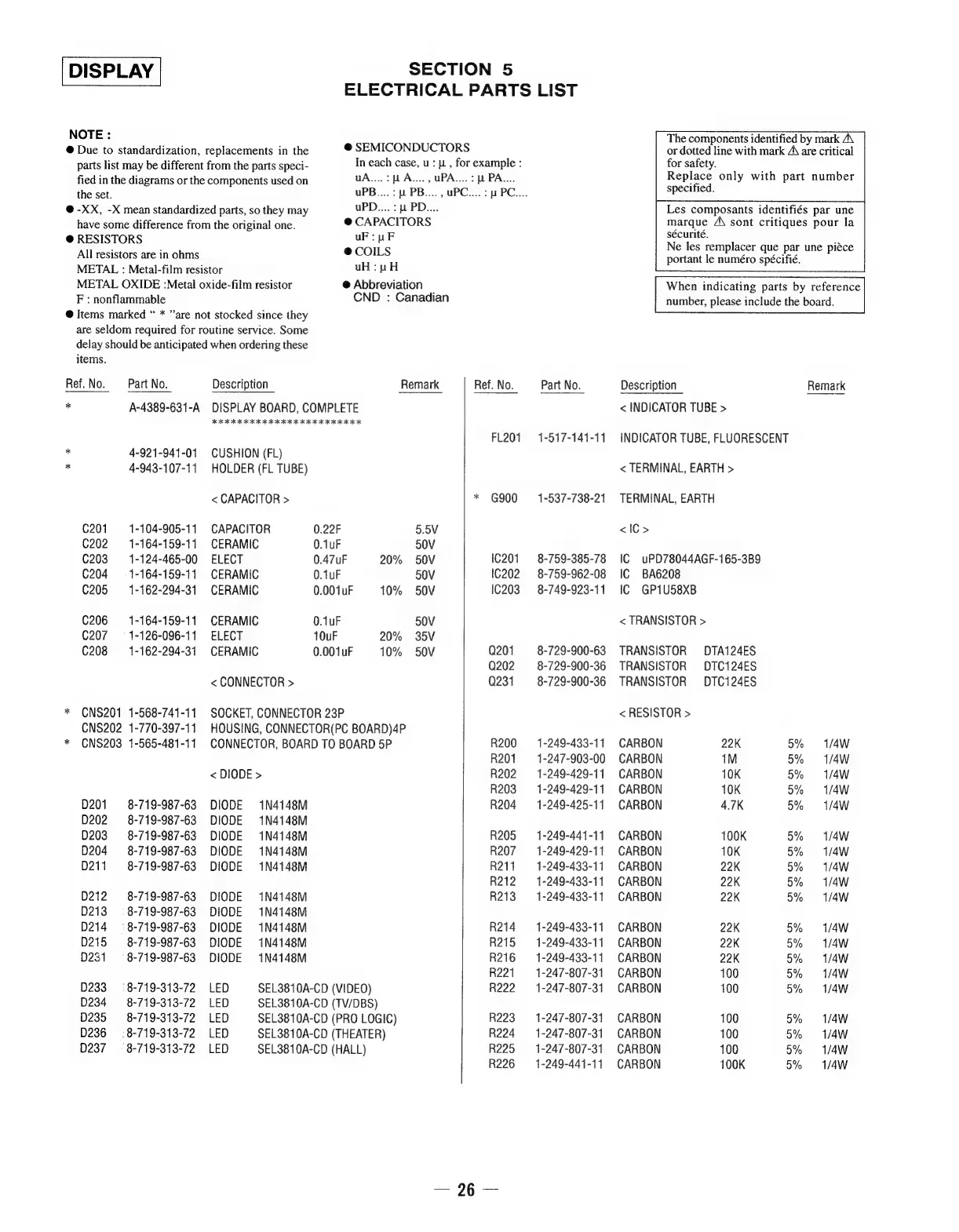

Sony STR-DE505 - Electrical Parts List; Display Section Components

NOTE :
®@ Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used on
the set.
@ -XX, -X mean standardized parts, so they may
have some difference from the original one.
@ RESISTORS
All resistors are in ohms
METAL : Metal-film resistor
METAL OXIDE :Metal oxide-film resistor
F : nonflammable
@ Items marked “ * ’are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
SECTION 5
ELECTRICAL PARTS LIST
@® SEMICONDUCTORS
In each case, u: p , for example :
uA... A... UPA... : pt PA...
uPB....: p PB...., uPC....: up PC....
uPD.... : uw PD....
@ CAPACITORS
uF : uF
@ COILS
uH: pH
@ Abbreviation
CND : Canadian
Ref. No. Part No. Description R
* A-4389-631-A DISPLAY BOARD, COMPLETE
* 4-921-941-01 CUSHION (FL)
* 4-943-107-11 HOLDER (FL TUBE)
< CAPACITOR >
C201 1-104-905-11 CAPACITOR 0.22F
C202 ~=1-164-159-11 CERAMIC 0.1uF
C203. = 1-124-465-00 ELECT 0.47uF 20%
C204 = 1-164-159-11. CERAMIC 0.1uF
C205 = 1-162-294-31 CERAMIC 0.001 uF 10%
C206 = 1-164-159-11 CERAMIC 0.1uF
C207 = 1-126-096-11 ELECT 10uF 20%
C208 = 1-162-294-31 CERAMIC 0.001 uF 10%
< CONNECTOR >
* CNS201 1-568-741-11 SOCKET, CONNECTOR 23P
CNS202 1-770-397-11 HOUSING, CONNECTOR(PC BOARD)4P
* CNS203 1-565-481-11 CONNECTOR, BOARD TO BOARD 5P
< DIODE >
D201 ~=8-719-987-63 DIODE 1N4148M
D202. ~=8-719-987-63 DIODE 1N4148M
D203 ~=8-719-987-63 DIODE 1N4148M
D204 ~=8-719-987-63 DIODE 1N4148M
D211 8-719-987-6383 DIODE 1N4148M
D212 = 8-719-987-63 DIODE 1N4148M
D213 = 8-719-987-63 DIODE 1N4148M
D214 = 8-719-987-6383 DIODE 1N4148M
D215 ~=8-719-987-63 DIODE 1N4148M
D231 = 8-719-987-6383 DIODE 1N4148M
D233 = 8-719-313-72 LED SEL3810A-CD (VIDEO)
D234 ~=8-719-313-72 LED SEL3810A-CD (TV/DBS)
D235 ~=—-8-719-313-72 LED SEL3810A-CD (PRO LOGIC)
D236 = 8-719-313-72 LED SEL3810A-CD (THEATER)
D237 = 8-719-313-72 LED SEL3810A-CD (HALL)
emark
5.5V
50V
50V
50V
50V
50V
35V
50V
Ref. No.
*
FL201
G900
10201
1C202
1C203
Q201
Q202
Q231
R200
R201
R202
R203
R204
R205
R207
R211
R212
R213
R214
R215
R216
R221
R222
R223
R224
R225
R226
Part No.
1-517-141-11
1-537-738-21
8-759-385-78
8-759-962-08
8-749-923-11
8-729-900-63
8-729-900-36
8-729-900-36
1-249-433-11
1-247-903-00
1-249-429-11
1-249-429-11
1-249-425-11
1-249-441-11
1-249-429-11
1-249-433-11
1-249-433-11
1-249-433-11
1-249-433-11
1-249-433-11
1-249-433-11
1-247-807-31
1-247-807-31
1-247-807-31
1-247-807-31
1-247-807-31
1-249-441-11
The components identified by mark A\
or dotted line with mark A\ are critical
for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque A\ sont critiques pour la
sécurité,
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
Description Remark
< INDICATOR TUBE >
INDICATOR TUBE, FLUORESCENT
< TERMINAL, EARTH >
TERMINAL, EARTH
<IC>
IC uPD78044AGF-165-3B9
IC BA6208
IC GP1U58XB
< TRANSISTOR >
TRANSISTOR DTA124ES
TRANSISTOR DTC124ES
TRANSISTOR DTC124ES
< RESISTOR >
CARBON 22K 5% 1/4W
CARBON 1M 5% 1/4W
CARBON 10K 5% 1/4W
CARBON 10K 5% 1/4W
CARBON 4.7K 5% 1/4W
CARBON 100K 5% t/4W
CARBON 10K 5% 1/4W
CARBON 22K 5% 1/4W
CARBON 22K 5% 1/4W
CARBON 22K 5% t/4W
CARBON 22K 5% 1/4W
CARBON 22K 5% 1/4W
CARBON 22K 5% 1/4W
CARBON 100 5% 1/4W
CARBON 100 5% 1/4W
CARBON 100 5% 1/4W
CARBON 100 5% 1/4W
CARBON 100 5% 1/4W
CARBON 100K 5% 1/4W
