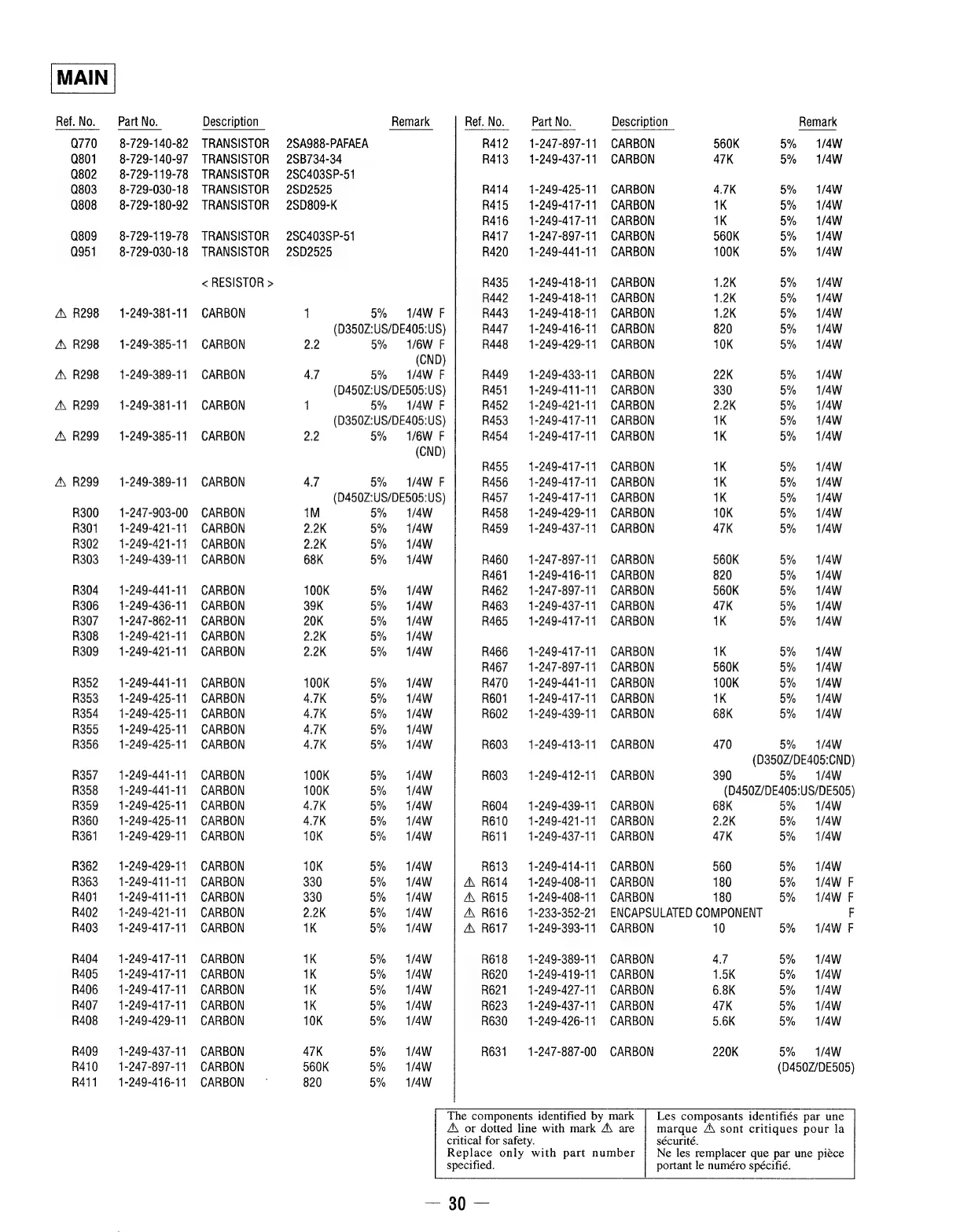

Sony STR-DE505 - Main Section Components - Part 4

Ref. No.
Q770
Q801
Q802
Q803
Q808
Q809
Q951
A R298
A R298
A, R298
AX R299
A, R299
Ay R299
R300
R301
R302
R303
R304
R306
R307
R308
R309
R352
R353
R354
R355
R356
R357
R358
R359
R360
R361
R362
R363
R401
R402
R403
R404
R405
R406
R407
R408
R409
R410
R411
Part No.
8-729-140-82
8-729-140-97
8-729-119-78
8-729-030-18
8-729-180-92
8-729-119-78
8-729-030-18
1-249-381-11
1-249-385-11
1-249-389-11
1-249-381-11
1-249-385-11
1-249-389-11
1-247-903-00
1-249-421-11
1-249-421-11
1-249-439-1 1
1-249-441-11
1-249-436-11
1-247-862-11
1-249-421-11
1-249-421-11
1-249-441-11
1-249-425-11
1-249-425-11
1-249-425-11
1-249-425-11
1-249-441-11
1-249-441-11
1-249-425-11
1-249-425-11
1-249-429-11
1-249-429-11
1-249-411-11
1-249-411-11
1-249-421-11
1-249-417-11
1-249-417-11
1-249-417-11
1-249-417-11
1-249-417-11
1-249-429-11
1-249-437-11
1-247-897-11
1-249-416-11
Description
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
< RESISTOR >
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
CARBON
Remark
2SA988-PAFAEA
2SB7 34-34
2S8C403SP-51
28D2525
2SD809-K
2S80403SP-51
28D2525
1 5% 1/4W F
(D350Z:US/DE405:US)
2.2 5% 1/6W F
(CND)
47 5% 1/4W F
(D450Z:US/DE505:US)
1 5% 1/4W F
(D350Z:US/DE405:US)
2.2 5% 1/6W F
(CND)
47 5% 1/4W F
(D450Z:US/DE505:US)
1M 5% 1/4W
2.2K 5% 1t/4W
2.2K 5% 1/4W
68K 5% 1/4W
100K 5% 1/4W
39K 5% 1/4W
20K 5% 1/4W
2.2K 5% 1/4W
2.2K 5% 1/4W
100K 5% 1/4W
4.7K 5% 1/4W
4.7K 5% i1/4W
4.7K 5% 1/4W
4.7K 5% 1/4W
100K 5% 1/4W
100K 5% 1/4W
4.7K 5% 1/4W
4.7K 5% 1/4W
10K 5% 1/4W
10K 5% 1/4W
330 5% 1/4W
330 5% 1/4W
2.2K 5% 1/4W
1K 5% 1/4W
1K 5% 1/4W
1K 5% 1/4W
1K 5% 1/4W
1K 5% 1/4W
10K 5% 1/4W
47K 5% 1/4W
560K 5% 1/4W
820 5% 1/4W
Ref. No.
R412
R413
R414
R415
R416
R417
R420
R435
R442
R443
R447
R448
R449
R451
R452
R453
R454
R455
R456
R457
R458
R459
R460
R461
R462
R463
R465
R466
R467
R470
R601
R602
R603
R603
R604
R610
R611
R613
A, R614
A, R615
AX R616
ZN R617
R618
R620
R621
R623
R630
R631
Part No.
1-247-897-11
1-249-437-11
1-249-425-11
1-249-417-11
1-249-417-11
1-247-897-11
1-249-441-11
1-249-418-11
1-249-418-11
1-249-418-11
1-249-416-11
1-249-429-11
1-249-433-11
1-249-411-11
1-249-421-11
1-249-417-11
1-249-417-11
1-249-417-11
1-249-417-11
1-249-417-11
1-249-429-11
1-249-437-11
1-247-897-11
1-249-416-11
1-247-897-11
1-249-437-11
1-249-417-11
1-249-417-11
1-247-897-11
1-249-441-11
1-249-417-11
1-249-439-11
1-249-413-11
1-249-412-11
1-249-439-11
1-249-421-11
1-249-437-11
1-249-414-11
1-249-408-11
1-249-408-11
1-233-352-21
1-249-393-11
1-249-389-11
1-249-419-11
1-249-427-11
1-249-437-11
1-249-426-11
1-247-887-00
Description Remark
CARBON 560K 5% 1/4W
CARBON 47K 5% 1/4W
CARBON 4.7K 5% 1/4W
CARBON 1K 5% 1/4W
CARBON 1K 5% 1/4W
CARBON 560K 5% 1/4W
CARBON 100K 5% 1/4W
CARBON 1.2K 5% 1/4W
CARBON 1.2K 5% 1/4W
CARBON 1.2K 5% 1/4W
CARBON 820 5% 1/4W
CARBON 10K 5% 1/4W
CARBON 22K 5% 1/4W
CARBON 330 5% 1/4W
CARBON 2.2K 5% 1/4W
CARBON 1K 5% 1/4W
CARBON 1K 5% 1/4W
CARBON 1K 5% 1/4W
CARBON 1K 5% 1/4W
CARBON 1K 5% 1/4W
CARBON 10K 5% 1/4W
CARBON 47K 5% 1/4W
CARBON 560K 5% 1/4W
CARBON 820 5% 1/4W
CARBON 560K 5% 1/4W
CARBON 47K 5% i1/4W
CARBON 1K 5% 1/4W
CARBON 1K 5% 1/4W
CARBON 560K 5% 1/4W
CARBON 100K 5% i1/4W
CARBON 1K 5% 1/4W
CARBON 68K 5% 1/4W
CARBON 470 5% 1/4W
(D3502Z/DE405:CND)
CARBON 390 5% 1/4W
(D450Z/DE405:US/DE505)
CARBON 68K 5% 1/4W
CARBON 2.2K 5% 1/4W
CARBON 47K 5% 1/4W
CARBON 560 5% %1/4W
CARBON 180 5% 1/4W F
CARBON 180 5% 1/4W F
ENCAPSULATED COMPONENT F
CARBON 10 5% 1/4W F
CARBON 4.7 5% 1/4W
CARBON 1.5K 5% 1/4W
CARBON 6.8K 5% 1/4W
CARBON 47K 5% 1/4W
CARBON 5.6K 5% 1/4W
CARBON 220K 5% 1/4W
(D450Z/DE505)
The components identified by mark
AX or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
30 —
Les composants identifiés par une
marque A\ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
