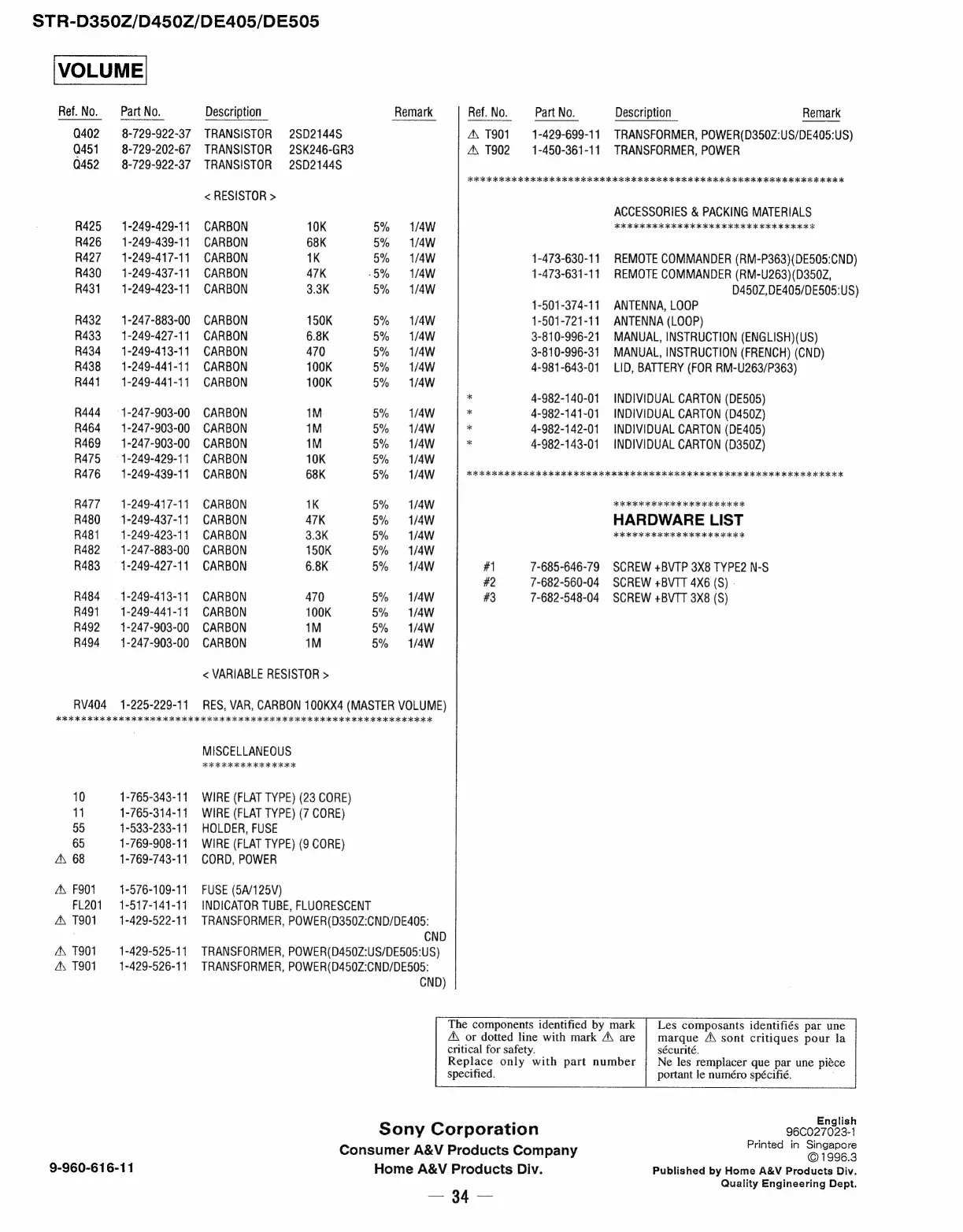

Sony STR-DE505 - Volume Board, Accessories, and Hardware

STR-D3502Z/D450Z/DE405/DE505
Ref.No. Part No. Description Remark Ref. No. Part No. Description Remark
Q402 8-729-922-37 TRANSISTOR 2S8D2144S A, T901 1-429-699-11 TRANSFORMER, POWER(D350Z:US/DE405:US)
0451 8-729-202-67 TRANSISTOR 2SK246-GR3 A, T902 = 1-450-361-11 TRANSFORMER, POWER
Q452 8-729-922-37_ TRANSISTOR 2SD2144S
< RESISTOR >
ACCESSORIES & PACKING MATERIALS
R425 1-249-429-11 CARBON 10K 5% 1/4W SCO kok kk kkk Kx
R426 ~=—-1-249-439-11 CARBON 68K 5% 1/4W
R427 =1-249-417-11 CARBON 1K 5% 1/4W 1-473-630-11 REMOTE COMMANDER (RM-P363)(DE505:CND)
R430 1-249-437-11 CARBON 47K 5% 1/4W 1-473-631-11 REMOTE COMMANDER (RM-U263)(D350Z,
R431 = 1-249-423-11 CARBON 3.3K 5% 1/4W D450Z,DE405/DE505:US)
1-501-374-11 ANTENNA, LOOP
R432 1-247-883-00 CARBON 150K 5% 1/4W 1-501-721-11 ANTENNA (LOOP)
R433 1-249-427-11 CARBON 6.8K 5% 1/4W 3-810-996-21 MANUAL, INSTRUCTION (ENGLISH)({US)
R434 = 1-249-413-11 CARBON 470 5% 1/4W 3-810-996-31 MANUAL, INSTRUCTION (FRENCH) (CND)
R438 1-249-441-11 CARBON 100K 5% 1/4W 4-981-643-01 LID, BATTERY (FOR RM-U263/P363)
R441 = =1-249-441-11 CARBON 100K 5% 1/4W
- 4-982-140-01 INDIVIDUAL CARTON (DE505)
R444 ~—- 1-247-903-00 CARBON 1M 5% 1/4W 4-982-141-01 INDIVIDUAL CARTON (D450Z)
R464 ~=1-247-903-00 CARBON 1M 5% 1/4W * 4-982-142-01 INDIVIDUAL CARTON (DE405)
R469 =1-247-903-00 CARBON 1M 5% 1/4W = 4-982-143-01 INDIVIDUAL CARTON (D350Z)
R475 = 1-249-429-11 CARBON 10K 5% 1/4W
R476 1-249-439-11 CARBON 68K 5% 1/4W DR 2 2 2 2 2 9 2 a OK RO OK ke i ok ok ok aC ok 2 keke oR ok ok ok ok a ok ok
R477 1-249-417-11 CARBON 1K 5% 1/4W a laalalalalaetatalalatalalaia
R480 =: 1-249-437-11 CARBON 47K 5% 1/4W HARDWARE LIST
R481 1-249-423-11 CARBON 3.3K 5% 1/4W SOR A ee SR HE Ae HEN ak
R482 = 1-247-883-00 CARBON 150K 5% 1/4W
R483 = 1-249-427-11 CARBON 6.8K 5% 1/4W #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-682-560-04 SCREW +BVTT 4X6 (S) -
R484 = 1-249-413-11 CARBON 470 5% 1/4W #3 7-682-548-04 SCREW +BVTT 3X8 (S)
R491 = 1-249-441-11 CARBON 100K 5% 1/4W
R492 = 1-247-903-00 CARBON 1M 5% 1/4W
R494 = 1-247-903-00 CARBON 1M 5% 1/4W
< VARIABLE RESISTOR >
RV404 1-225-229-11 RES, VAR, CARBON 100KX4 (MASTER VOLUME)
FE IG 2 2g i 2 G2 2 2 2 2 eg 2g 8 2 0K 2 2K OK 2 2 2 oi i 2 ie oi ok 2c oo 2 oO OK 2K OK ok
MISCELLANEOUS
FR OR OR EO OR OK KOK OK
10 1-765-343-11 WIRE (FLAT TYPE) (23 CORE)
11 1-765-314-11 WIRE (FLAT TYPE) (7 CORE)
55 1-533-233-11 HOLDER, FUSE
65 1-769-908-11 WIRE (FLAT TYPE) (9 CORE)
A 68 1-769-743-11 CORD, POWER
A, F901 —-1-576-109-11 FUSE (5A/125V)
FL201 1-517-141-11 INDICATOR TUBE, FLUORESCENT
A 7901 —-1-429-522-11 TRANSFORMER, POWER(D350Z:CND/DE405:
: CND
A, 7901 1-429-525-11 TRANSFORMER, POWER(D450Z:US/DE505:US)
A, 7901 1-429-526-11 TRANSFORMER, POWER(D450Z:CND/DE505:
CND)
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque A\ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
. English
Sony Corporation 96C027023-1
Consumer A&V Products Company Sunted ip ae
9-960-616-11
