STR-DE675

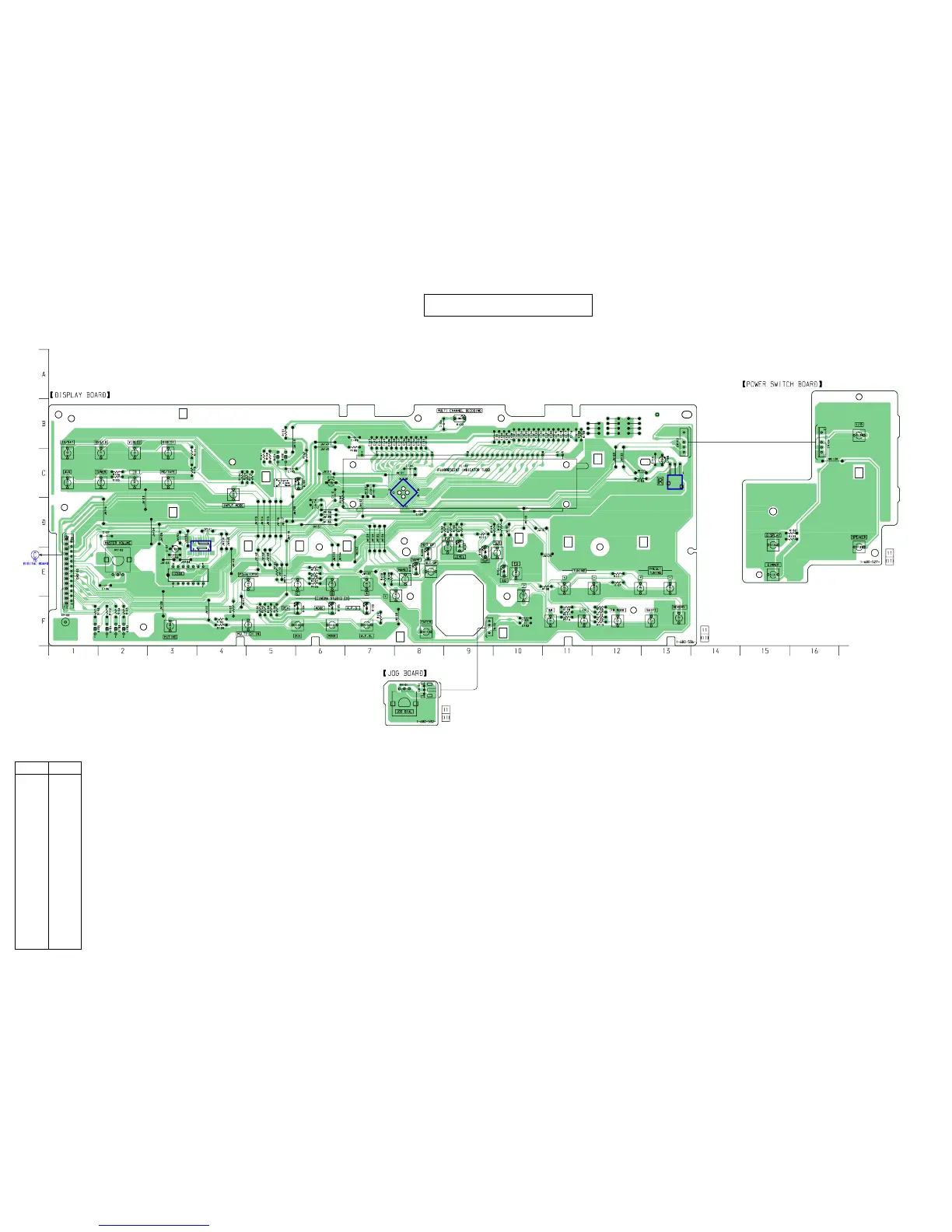

3-11. PRINTED WIRING BOARD – DISPLAY SECTION –
• See page 9 for Circuit Boards Location.
IC102
IC100
IC101
(Page 12)
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
Ref. No. Location
D100 C-6
D101 E-10
D102 B-9
D103 F-7
D104 F-6
D105 F-6
D106 E-9
D107 E-9
D108 E-8
D109 E-8
IC100 C-8
IC101 E-4
IC102 C-13
Q100 C-5
Q101 F-2
Q102 F-2
Q103 F-2
Q104 C-5
Q105 F-1
• Semiconductor
Location
