Sony STR-DE675 - Exploded Views; Front Panel Assembly Components

SECTION 4
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
•
Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories and packing materials are given in
the last of this parts list.
• Abbreviation
CND : Canadian model
MY : Malaysia model
SP : Singapore model
TW : Taiwan model
KR : Korea model
MX : Mexican model
AR : Argentina model
CH : Chinese model
AUS : Australian model
29
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
STR-DE675
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

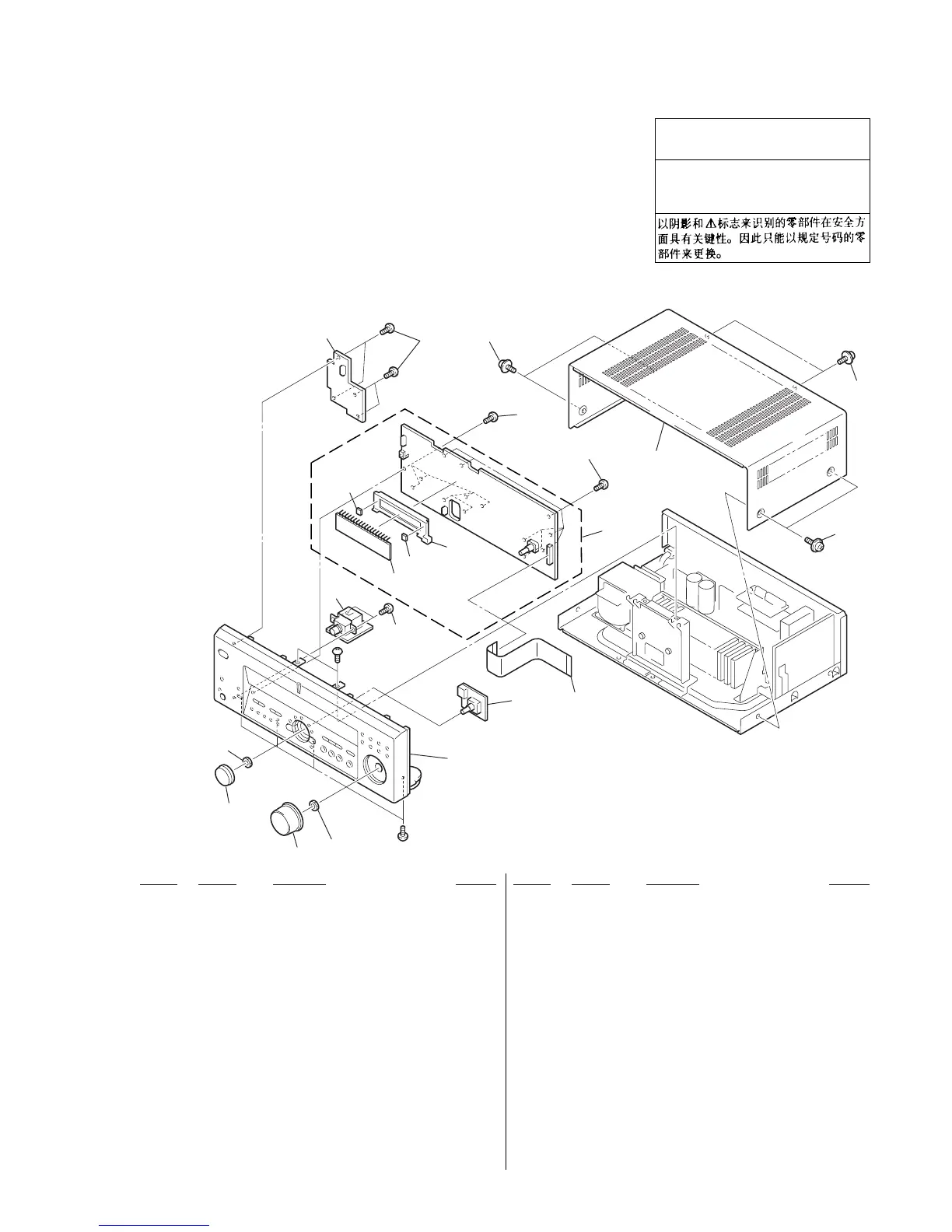

4-1. FRONT PANEL SECTION
2
3
4
1
5
5
5
5
6
9
10
11
12
12
13
12
8
8
#1
#1
Supplied with
RV101
Supplied with
RV102
7
FL101
1 X-4953-423-1 FRONT PANEL ASSY (BLACK)(US)
1 X-4953-464-1 FRONT PANEL ASSY (SILVER)(US)
1 X-4953-465-1 FRONT PANEL ASSY (BLACK)(AEP,UK)
1 X-4953-466-1 FRONT PANEL ASSY (BLACK)(E,AUS)
1 X-4953-467-1 FRONT PANEL ASSY (SILVER)(AUS)
1 X-4953-468-1 FRONT PANEL ASSY (GOLD)(MY,SP,TW,KR,CH)
1 X-4953-525-1 FRONT PANEL ASSY (BLACK)(CND)
1 X-4953-819-1 FRONT PANEL ASSY (SILVER)(E,MX,AR)
2 4-232-113-01 KNOB (VOL)(FOR BLACK)(US,CND,AEP,UK,E,AUS)
2 4-232-113-11 KNOB (VOL)(FOR SILVER)(US,E,MX,AR,AUS)
2 4-232-113-21 KNOB (VOL)(FOR GOLD)(MY,SP,TW,KR,CH)
3 4-232-239-01 KNOB (JOG)(FOR BLACK)(US,CND,AEP,UK,E,AUS)
3 4-232-239-11 KNOB (JOG)(FOR GOLD)(MY,SP,TW,KR,CH)
3 4-232-239-21 KNOB (JOG)(FOR SILVER)(US,E,MX,AR,AUS)
4 1-680-529-11 HEADPHONE BOARD
5 4-951-620-01 SCREW (2.6X8), +BVTP
6 1-680-532-11 JOG BOARD
7 1-773-250-11 WIRE (FLAT TYPE) (27 CORE)
* 8 4-921-941-01 CUSHION (FL)
* 9 3-386-245-11 HOLDER (FL)
10 A-4475-808-A DISPLAY BOARD, COMPLETE (US)
10 A-4475-875-A DISPLAY BOARD, COMPLETE (CND)
10 A-4475-882-A DISPLAY BOARD, COMPLETE (E)
10 A-4475-888-A DISPLAY BOARD, COMPLETE (AEP,UK,AR)
10 A-4475-943-A DISPLAY BOARD, COMPLETE (TW)
10 A-4475-948-A DISPLAY BOARD, COMPLETE (AUS)
10 A-4475-951-A DISPLAY BOARD, COMPLETE (CH,MY,SP,KR)
10 A-4476-952-A DISPLAY BOARD, COMPLETE (MX)
11 1-680-528-11 POWER SWITCH BOARD
12 4-210-291-01 SCREW (CASE 3 TP2)(US,CND,AEP,UK,E,AUS)
12 4-210-291-11 SCREW (CASE 3 TP2)(MY,SP,TW,KR,MX,AR,CH)
13 4-232-418-01 CASE (BLACK)(US,CND,AEP,UK,E,AUS)
13 4-232-418-21 CASE (SILVER)(US,E,MX,AR,AUS)
13 4-232-418-41 CASE (GOLD)(MY,SP,TW,KR,CH)
FL101 1-518-718-11 INDICATOR TUBE, FLUORESCENT
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
