STR-DE675

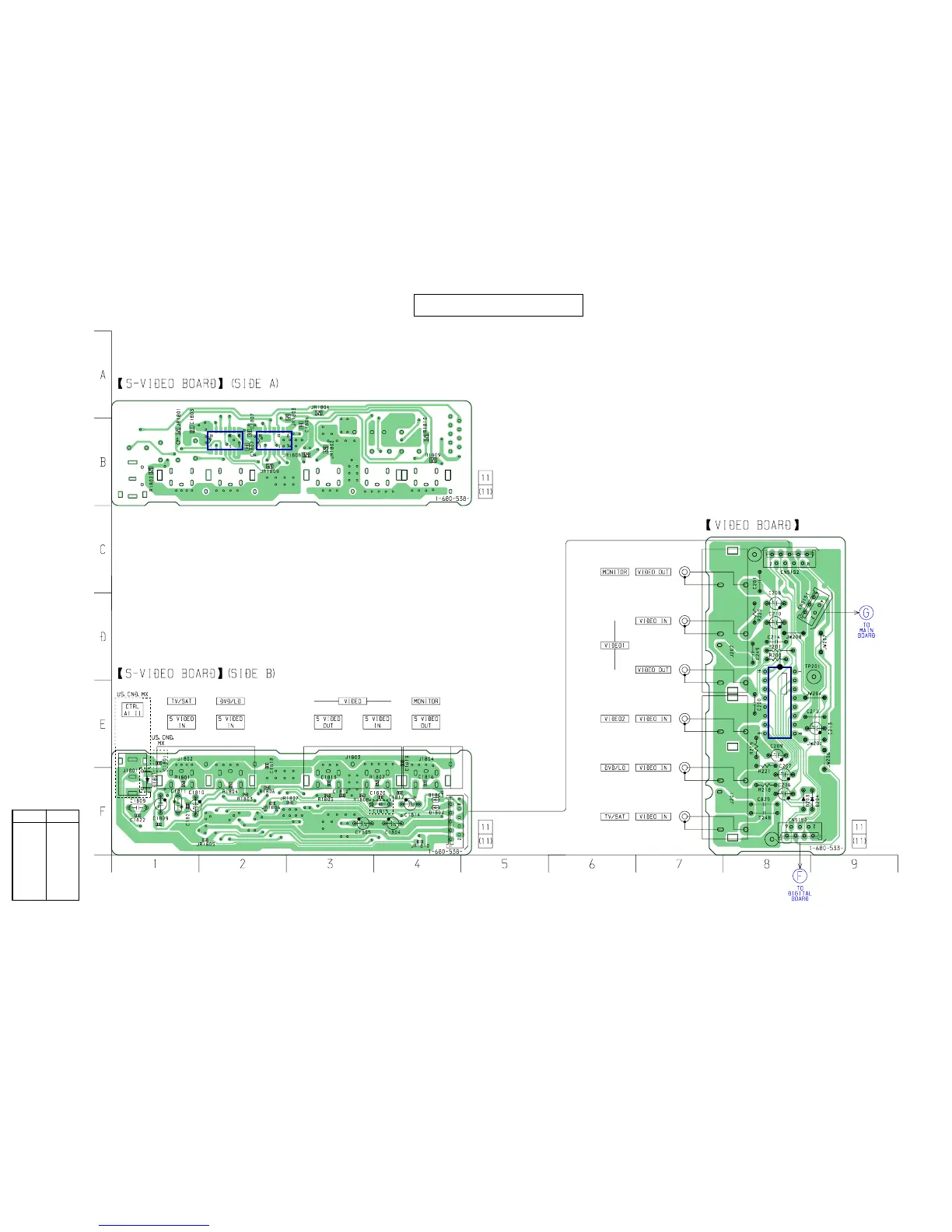

3-13. PRINTED WIRING BOARD – VIDEO SECTION –
• See page 9 for Circuit Boards Location.
IC1802
IC1801
IC103
(Page 16)
(Page 12)
US,CND,MX
Ref. No. Location
D203 F-8
D204 F-8
D1801 F-1
D1802 F-4
D1803 F-4
IC103 E-8
IC1801 B-2
IC1802 B-2
• Semiconductor
Location
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
