Sony STR-DE835 - Printed Wiring Board Digital Section(1;2)

STR-DE835/DE935/SE591/V828
— 21 — — 22 —

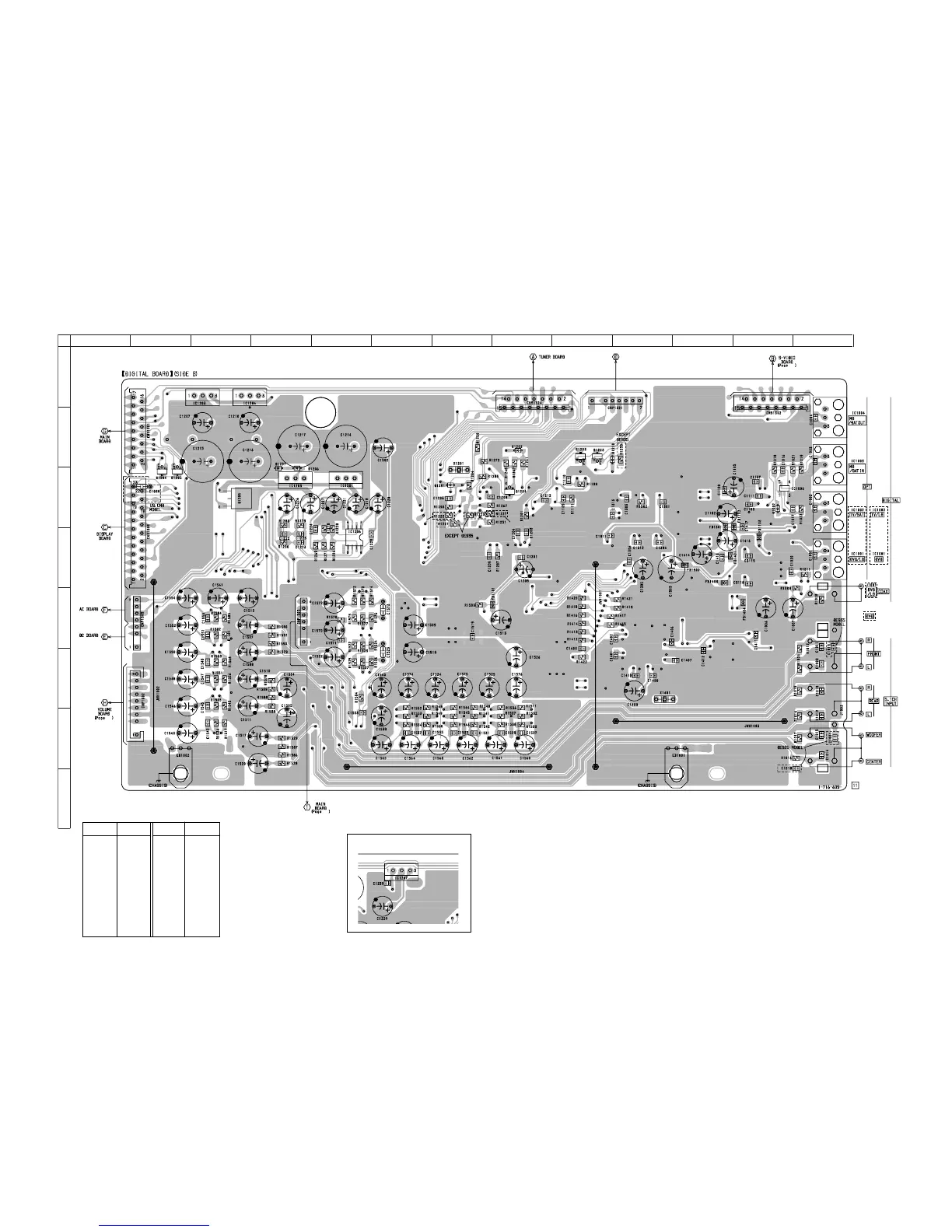

4-8. PRINTED WIRING BOARD DIGITAL SECTION(2/2) • See page 11 for circuit board location.
39
US,CND,
AUS
MODEL
US,CND,
AUS
MODEL
EXCEPT
US,CND,
AUS
MODEL
EXCEPT
US,CND,
AUS
MODEL
43
40
(Page 36)
(Page 35)
(Page 23)
(Page 44)
935 MODEL
935 MODEL
(Page 36) (Page 24)
DISPLAY BOARD
12
A
B
C
D
E
F
G
H
345678910111213
• Semiconductor Location
Ref. No. Location Ref. No. Location
D1002 C-12
D1201 C-7
D1202 B-8
D1203 B-9
D1204 C-2
D1205 C-2
D1206 C-4
D1207 C-4
D1210 B-10
IC1001 D-13
IC1002 C-13
IC1003 B-13
IC1004 B-13
IC1006 C-12
IC1203 A-3
IC1204 A-3
IC1205 C-4
IC1206 D-5
IC1501 C-5
Q1203 B-9
Q1204 C-8
Q1205 C-3
(Location B-6)
DIGITAL PWB FROM SUFFIX-12
Ver 1.1 2002. 02
