Sony STR-DE835 - 4-4. SCHEMATIC DIAGRAM DIGITAL SECTION(1;3)

STR-DE835/DE935/SE591/V828
— 13 — — 14 —

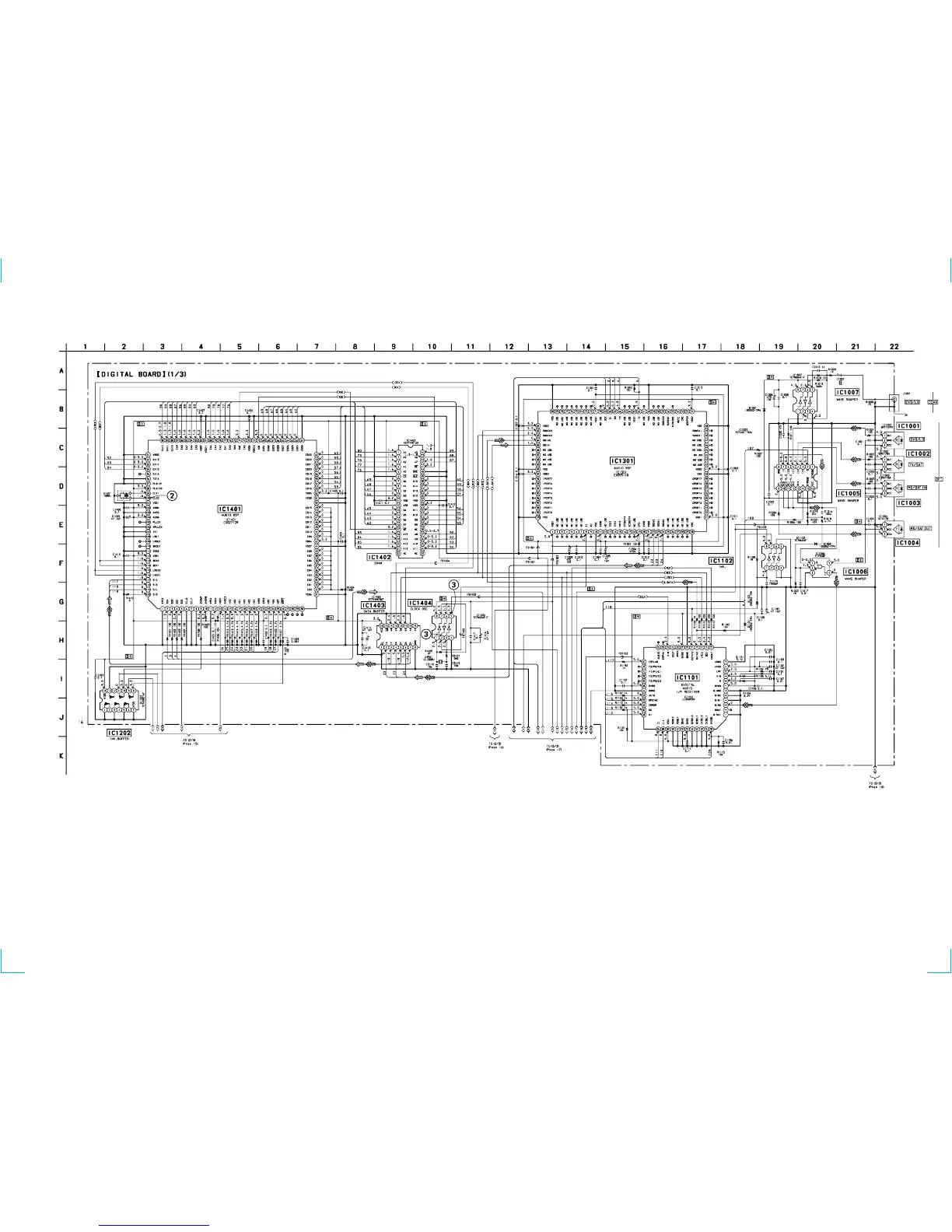

4-4. SCHEMATIC DIAGRAM DIGITAL SECTION(1/3) • See page 19 for Printed Wirig Board. • See page 12 for Waveforms. • See page 49 for IC Pin Functions. • See page 59 for IC Block Diagrams.
